Lithmate
1 / 3
| Category | Parameter | LM60150 Spec |
|---|---|---|
| Nominal | Voltage | 60.8V |
| Capacity | 150Ah | |
| Physical | Dimension | 500*370*235mm (19.69x14.57x9.25") |
| Weight | 89KG(196.2lb) | |
| Electrical | Charge Voltage | 69.35V |
| Cut-off Voltage | 47.5V | |
| Charge Current | 100A | |
| Continuous Discharge Current | 100A | |
| Peak Discharge Current | 200A | |
| Others | Working Temperature | -20-65℃ |
| Storage Temperature | 0-45℃ | |
| Cycle Life | >4000 Cycles |

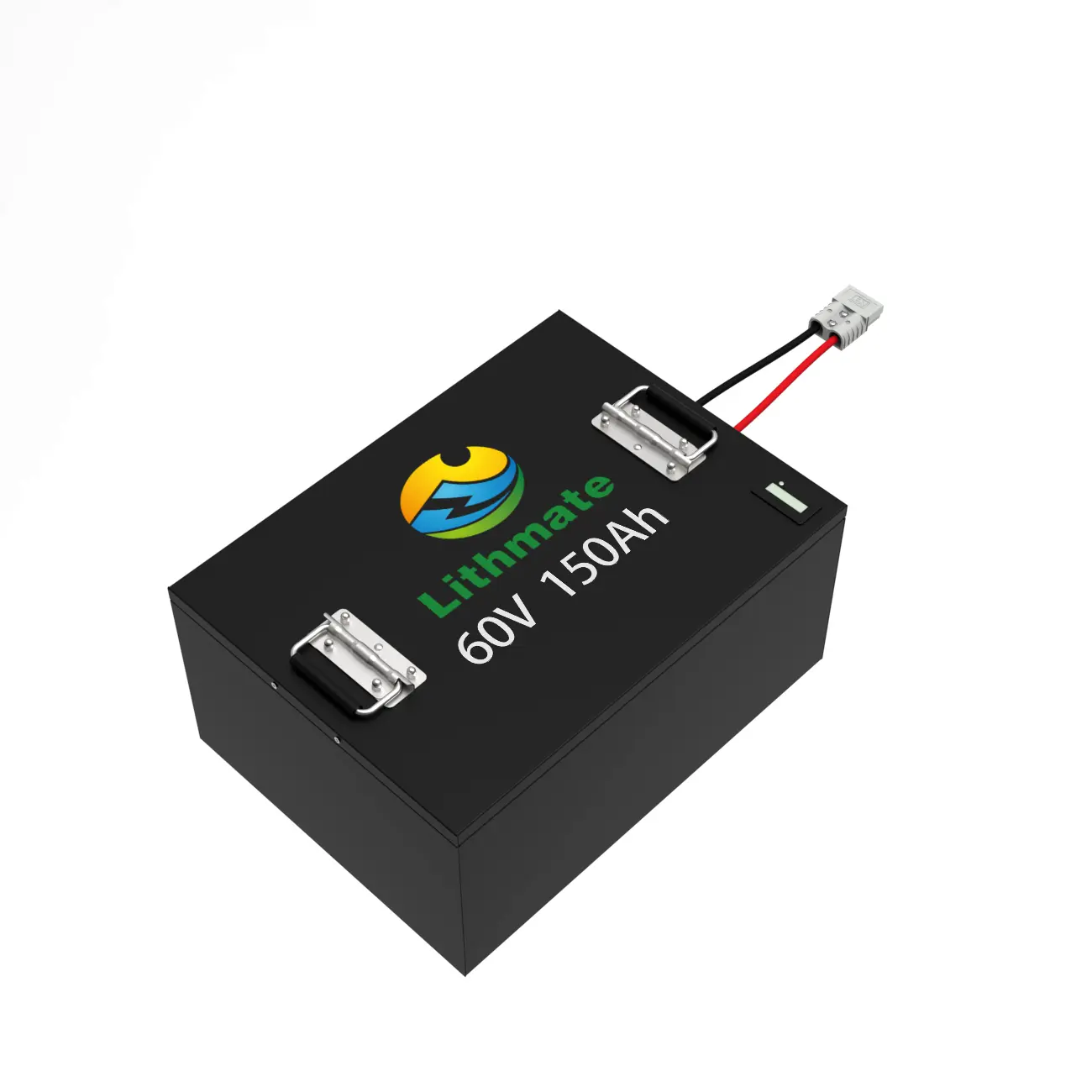

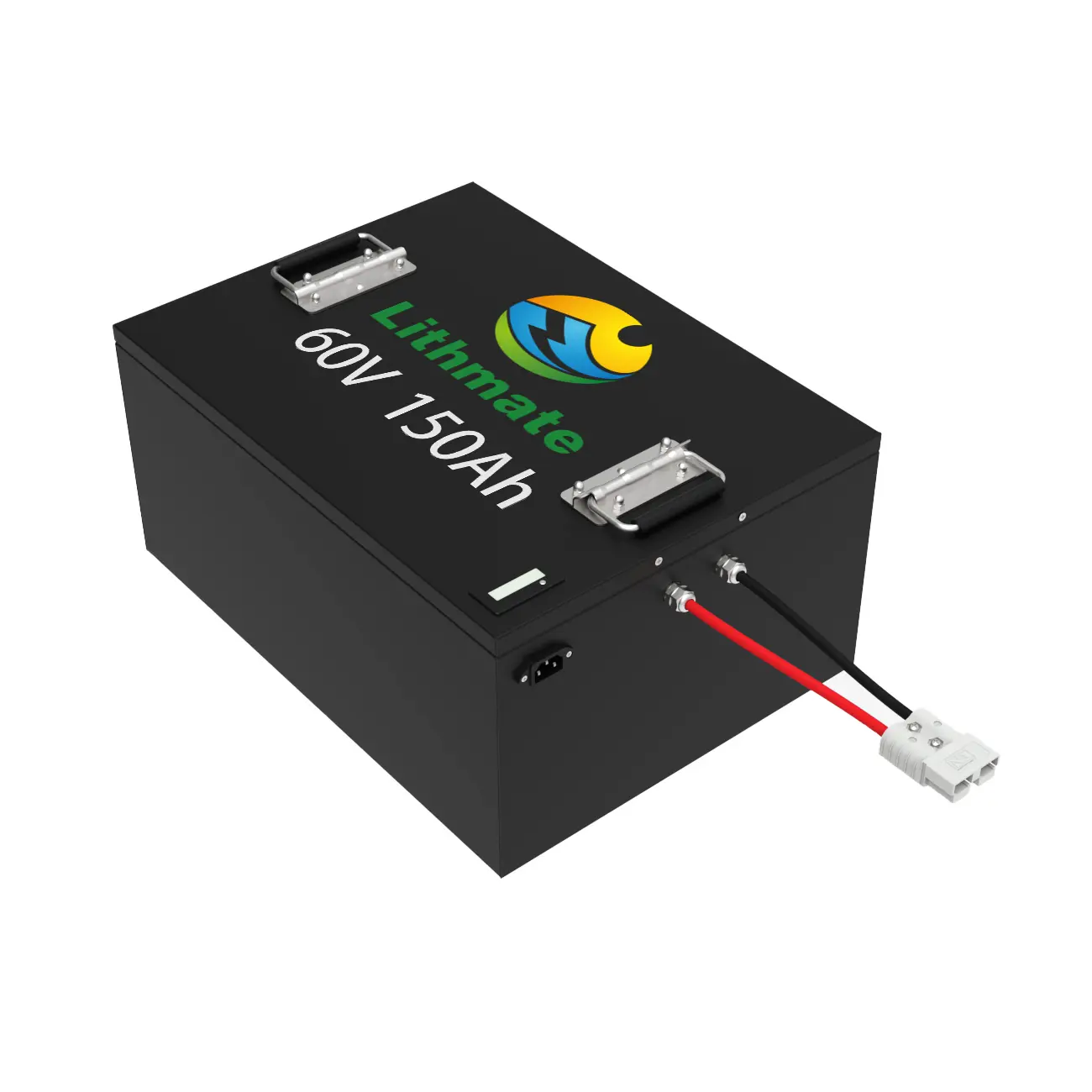

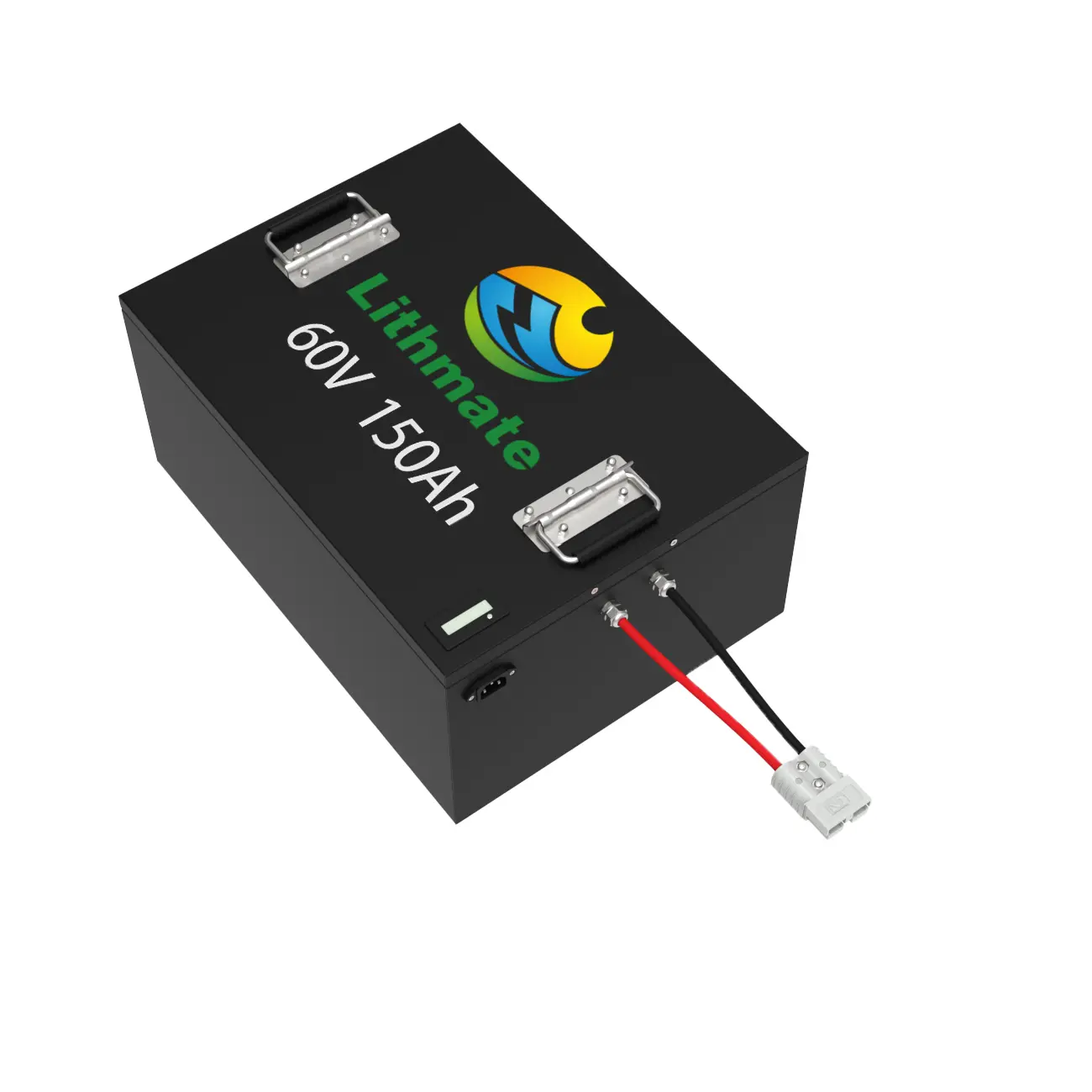

The LM60150 battery features a nominal voltage of 60.8V and a nominal capacity of 150Ah, making it ideal for e-rickshaws and similar electric vehicles.
The physical measurements of the LM60150 battery are 500*370*235mm (19.69x14.57x9.25 inches) with a total weight of approximately 89KG (196.2 lbs).
It offers a long lifespan with a rated cycle life of more than 4,000 cycles, ensuring durability and sustained efficiency over time.
The battery operates efficiently within a working temperature range of -20℃ to 65℃. For storage, keeping it within a temperature range of 0℃ to 45℃ is recommended.
The battery supports a charge current of 100A, a continuous discharge current of 100A, and is capable of handling peak discharge currents up to 200A.
