| Item | Parameter | LM12060 |
|---|---|---|
| Nominal | Voltage | 12.8V |
| Capacity | 60Ah | |
| Physical | Dimension | 229*138*208mm (9.02x5.43x8.19") |
| Weight | 7.9KG (17.4lb) | |
| Electrical | Charge Voltage | 14.6V |
| Cut-off Voltage | 10V | |
| Charge Current | 60A | |
| Continuous Discharge Current | 90A | |
| Peak Discharge Current | 180A |

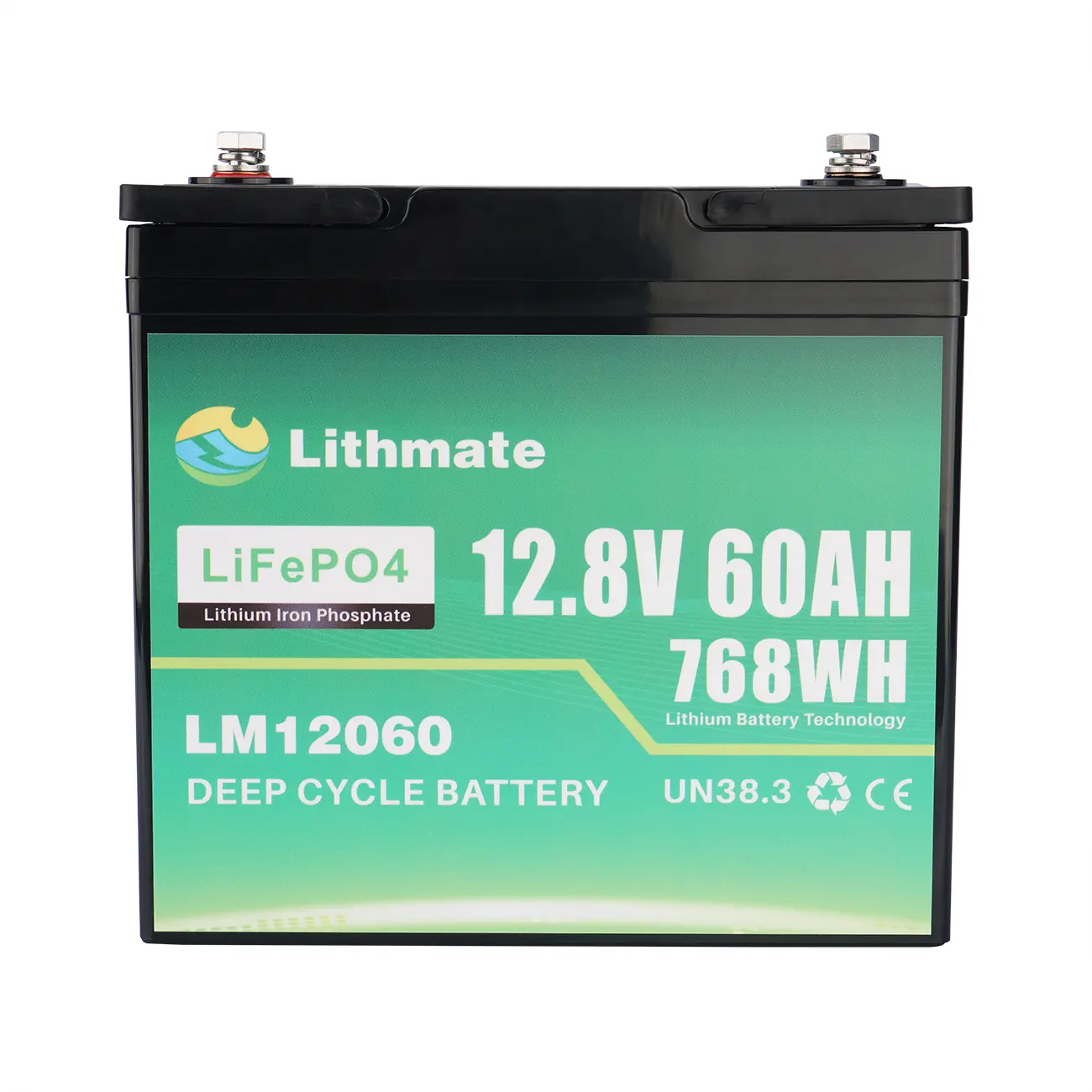

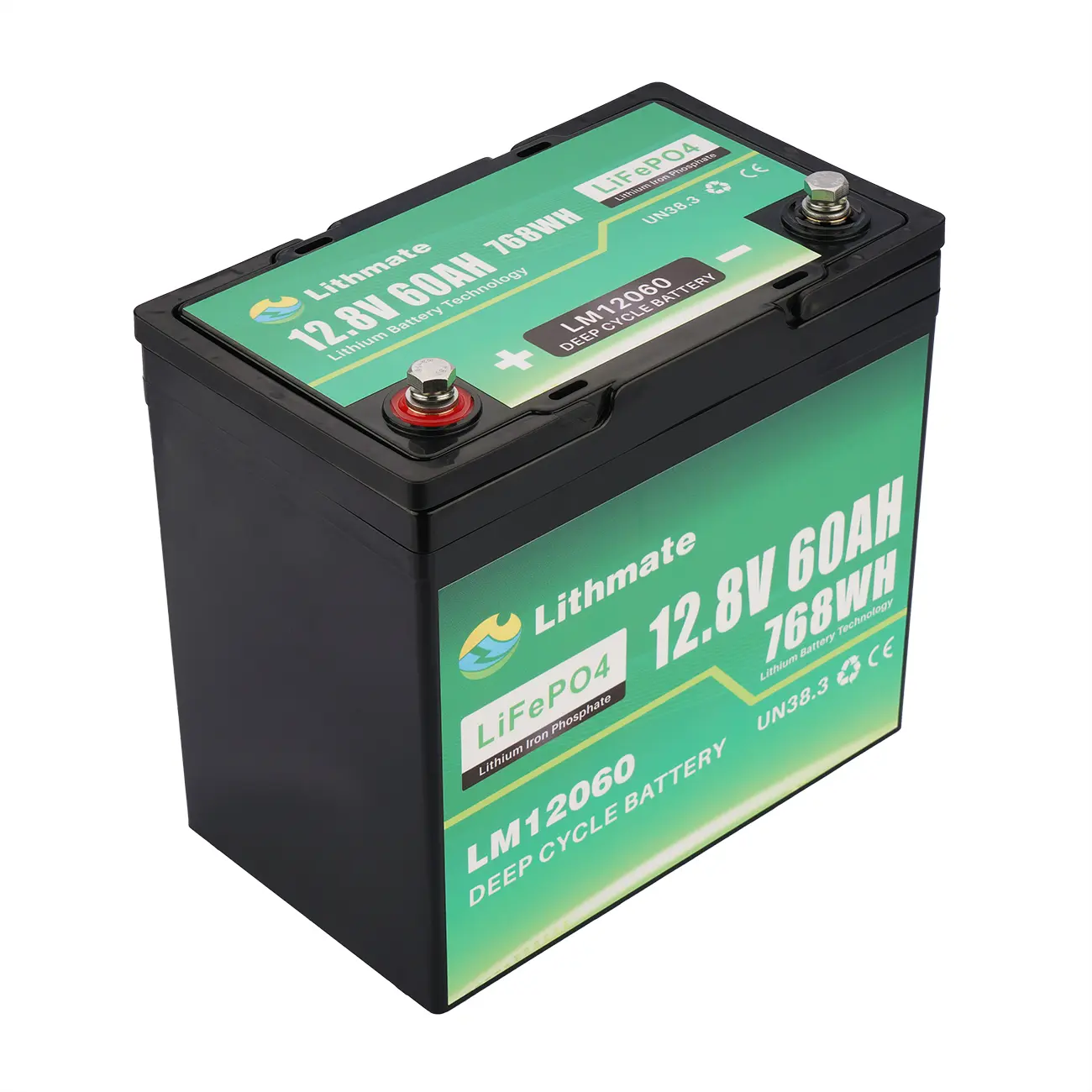

The LM12060 is specifically designed for marine environments, RVs, and off-grid power systems where a reliable 12.8V lithium source is required.
At only 7.9KG (17.4lb), this battery is significantly lighter than lead-acid batteries of the same capacity, making it easier to install and reducing overall vessel or vehicle weight.
For optimal performance and longevity, the battery should be charged with a voltage of 14.6V.
Yes, while the continuous discharge current is 90A, the LM12060 can handle a peak discharge current of up to 180A for short durations.
The battery dimensions are 229*138*208mm (approximately 9.02 x 5.43 x 8.19 inches), allowing for a compact footprint in tight compartments.
The discharge cut-off voltage is set at 10V to protect the cells from over-discharge and ensure a long cycle life.
