Lithmate
1 / 4
| Item | Parameter | LM12050 |
|---|---|---|
| Nominal | Voltage | 12.8V |
| Capacity | 50Ah | |
| Physical | Dimension | 198*166*186mm |
| Weight | 6.8KG | |
| Electrical | Charge Voltage | 12.8V |
| Cut-off Voltage | 30V | |
| Charge Current | 25A | |
| Continuous Discharge Current | 50A | |
| Peak Discharge Current | 100A | |
| Others | Working Temperature | -20-65°C |
| Storage Temperature | 0-45°C | |
| Cycle Life | >4000 Cycles |

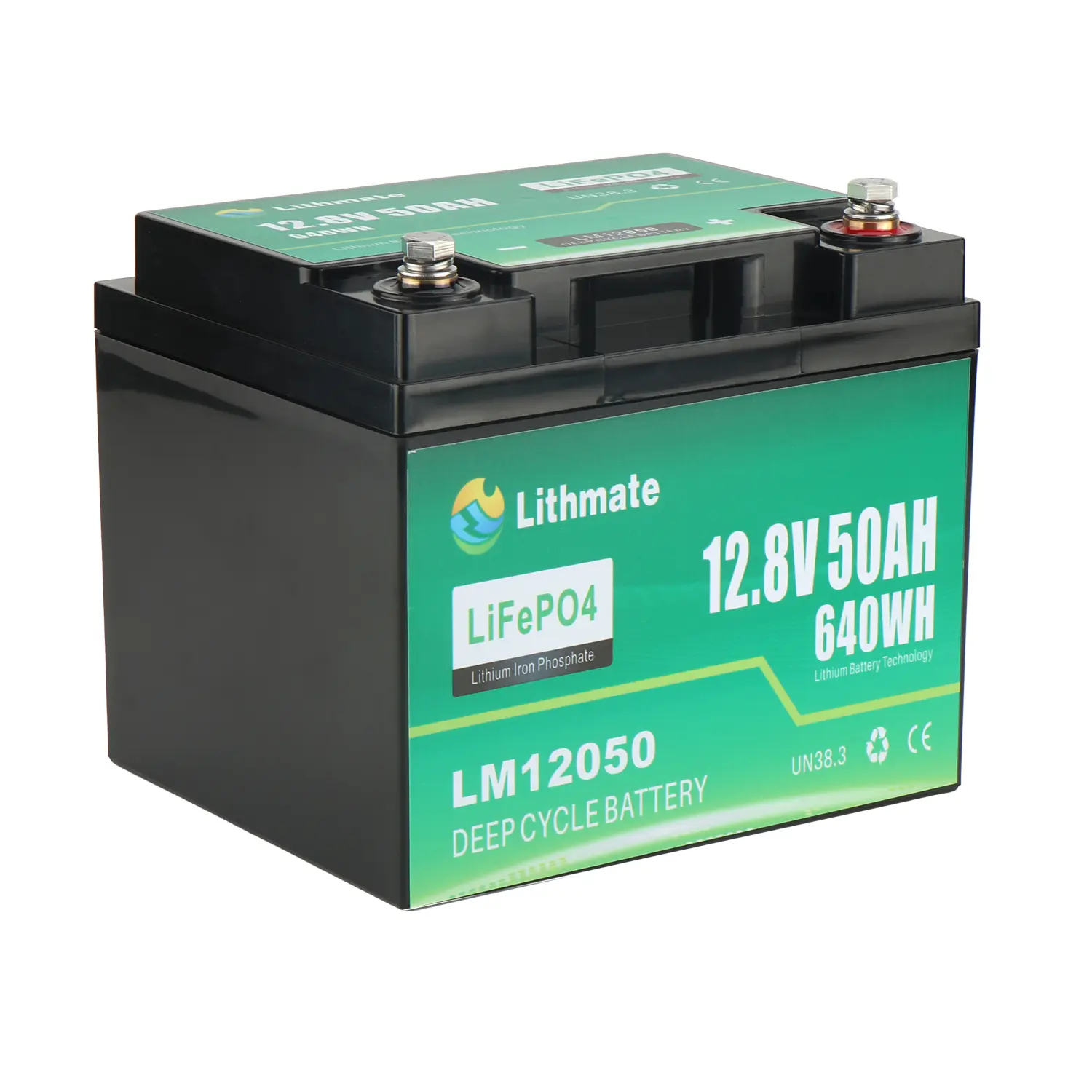

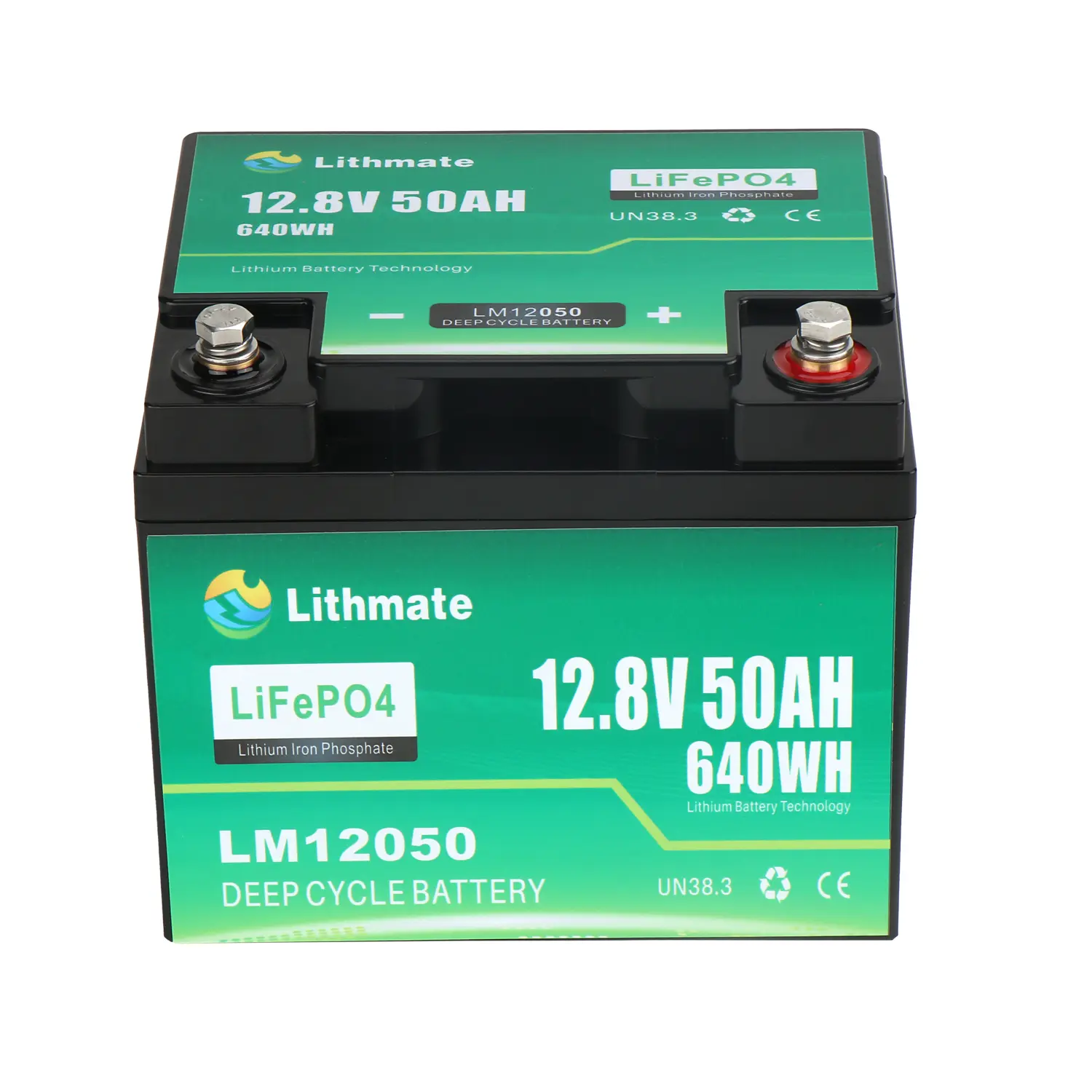

The LM12050 battery features a nominal voltage of 12.8V and a nominal capacity of 50Ah, providing reliable and stable power output.
This compact battery has physical dimensions of 198*166*186mm and weighs approximately 6.8KG, making it highly portable and easy to install.
The battery offers an exceptional cycle life of more than 4000 cycles under normal operating conditions, ensuring a long-lasting service life.
The working temperature range is -20°C to 65°C, while the recommended storage temperature range is 0°C to 45°C to preserve overall battery health.
The battery supports a charge current of 25A, a continuous discharge current of 50A, and can handle a peak discharge current of up to 100A.
