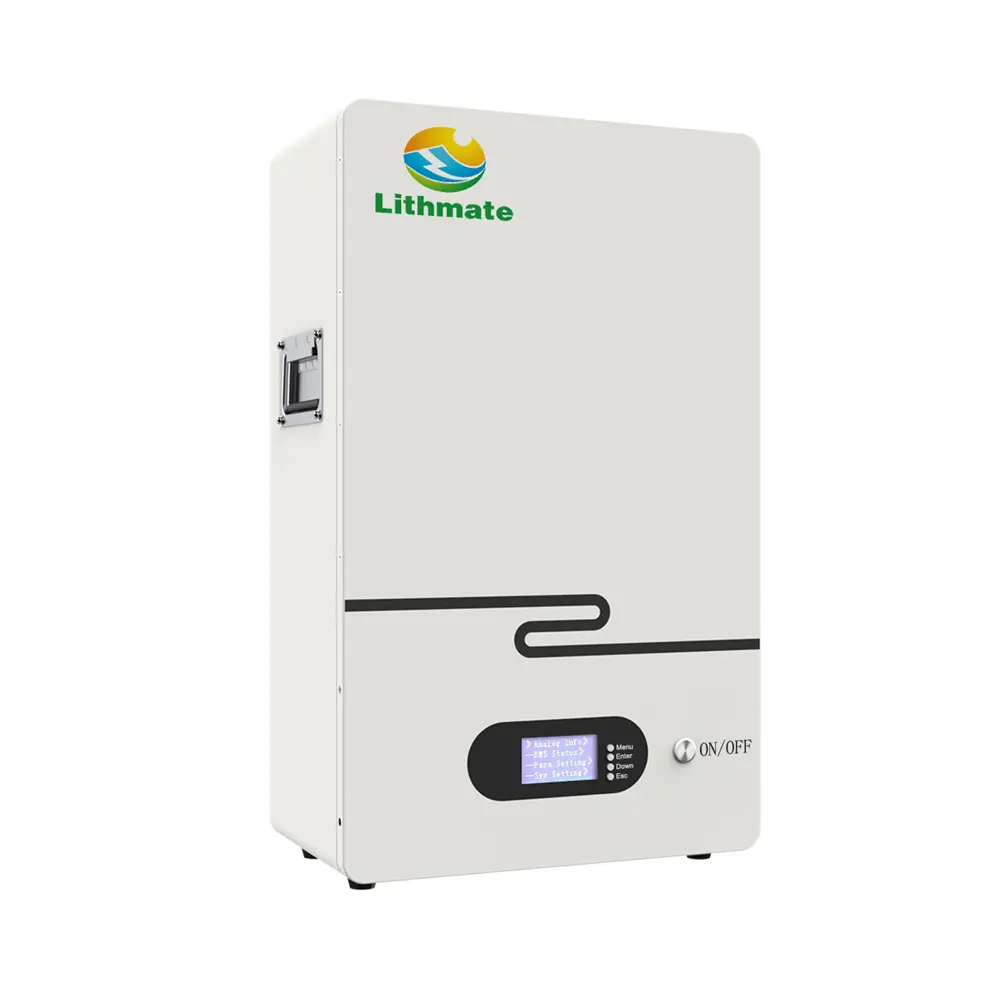

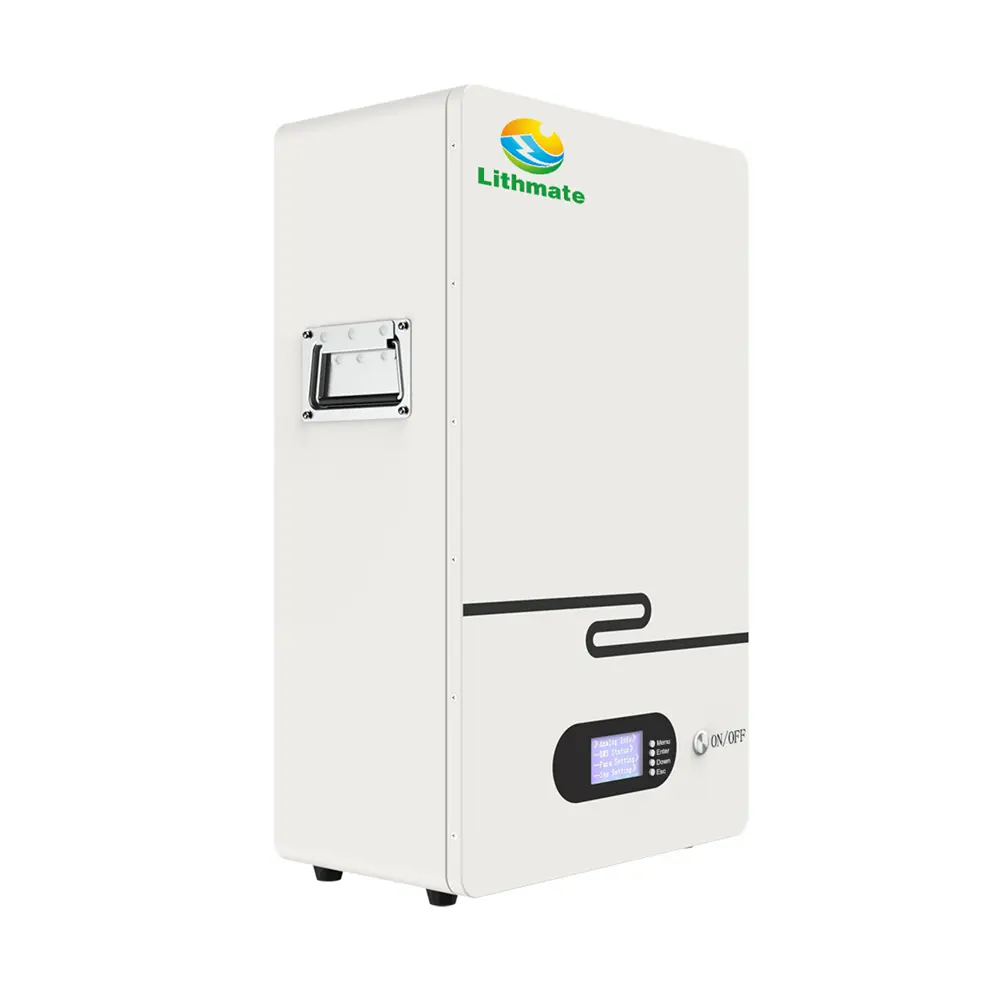

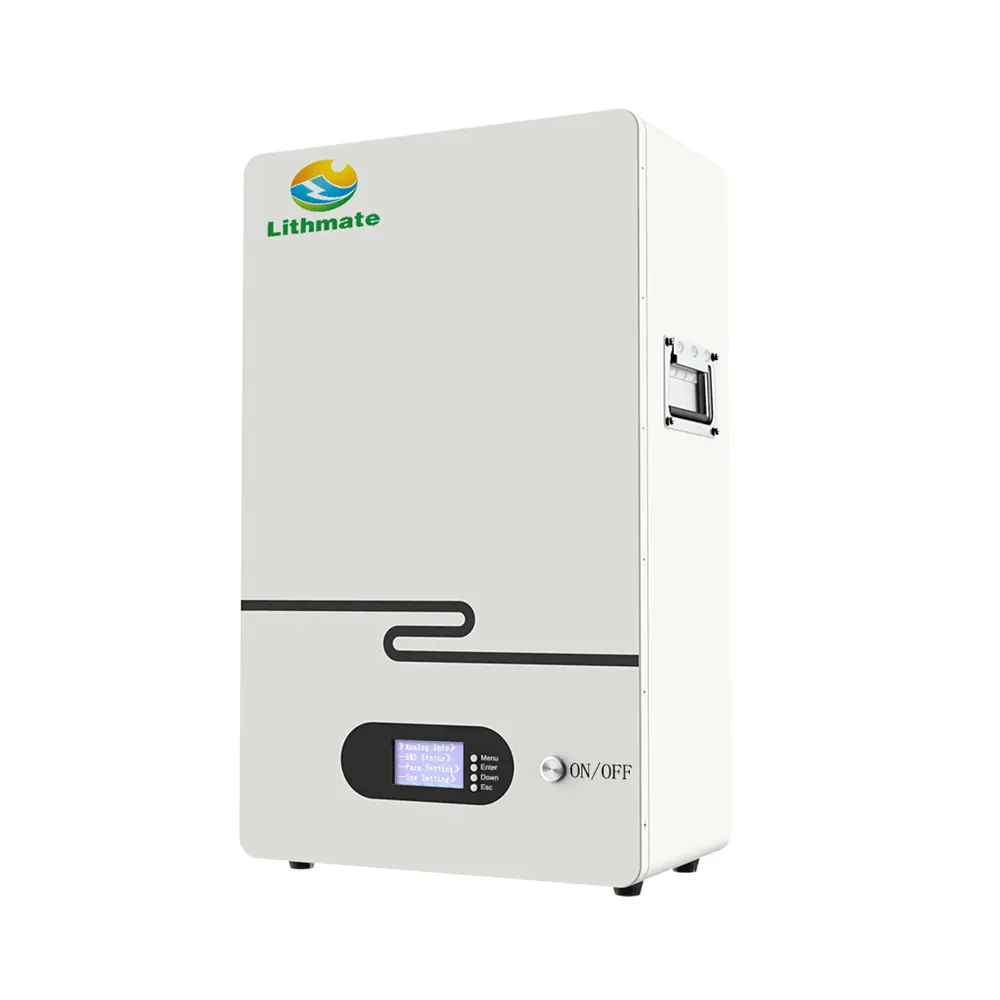

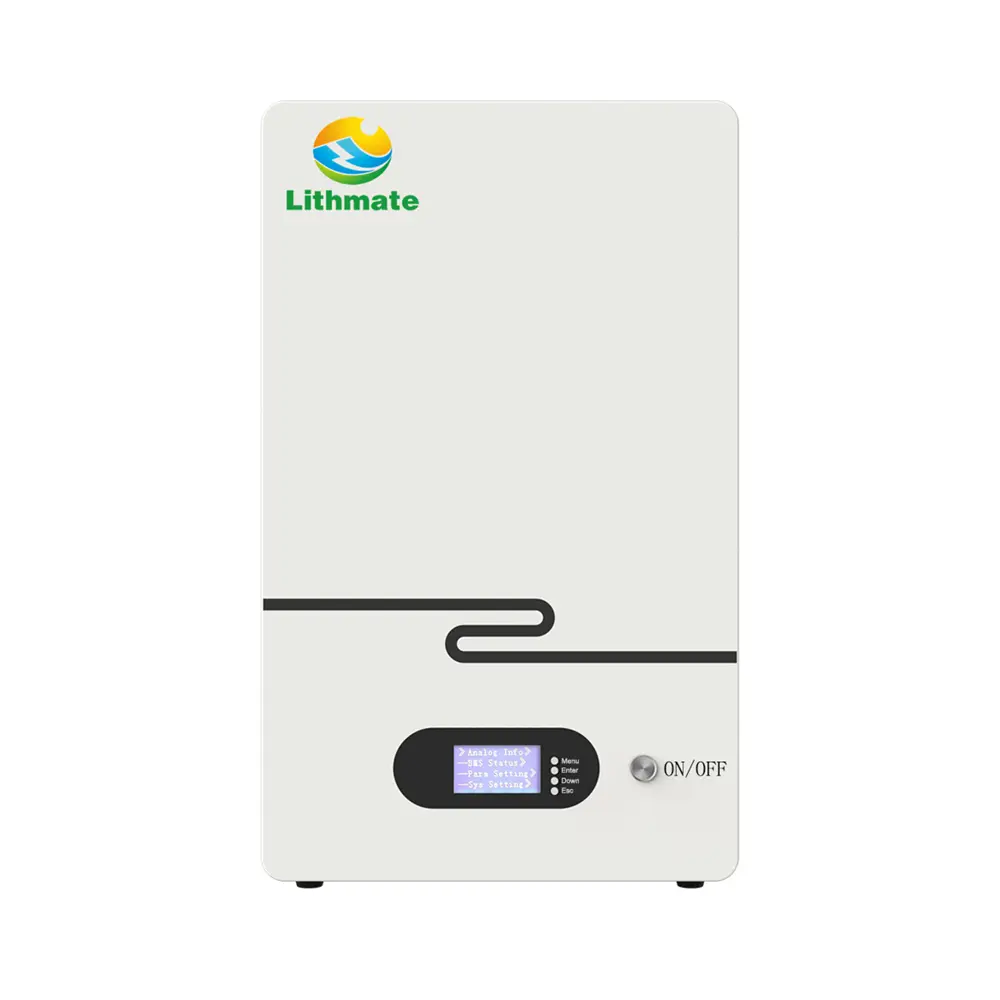

High-Quality Home Solar Energy Storage Battery 5Kwh Power Wall Manufacturer, Factory

Lithmate offers reliable backup power, reduces reliance on the grid, and helps homeowners save on electricity bills. With a compact, wall-mounted design, it saves space while providing efficient energy storage for residential solar systems. Ideal for self-consumption, load shifting, and backup power, it ensures stable and uninterrupted energy supply even during outages.

Send Inquiry

Product Description

Technical Specifications

Energy Capacity	5Kwh / 10Kwh
Inverter (Optional)	3Kw / 5Kw
Rated Voltage	48V / 51.2V
Cell Type	LFP (Lithium Iron Phosphate)
Cell Configuration	3.2V 100Ah (16S1P / 15S1P)
Communication	RS485 / RS232 / CAN / WiFi
Max. Discharge Current	100A (150A Peak)
Dimension (5Kwh)	630400170mm (24.80x15.75x6.69")
Dimension (10Kwh)	654400240mm (25.75x15.75x9.45")
Weight	55KG (121.3lb) for 5Kwh / 95KG (209.4lb) for 10Kwh
Display	SOC / Voltage / Current
Operating Temp.	-20°C to 65°C (-4°F to 149°F)
Storage Temp.	0°C to 45°C (32°F to 113°F)

Home Solar Energy Storage Battery 5Kwh Power Wall

Frequently Asked Questions

What are the advantages of using LFP cells?

LFP (Lithium Iron Phosphate) cells provide superior thermal stability, a longer cycle life (up to 6000+ cycles), and enhanced safety compared to standard lithium-ion batteries.

Can I monitor the battery status remotely?

Yes, the system supports multiple communication protocols including WiFi, RS485, and CAN, allowing you to monitor SOC, voltage, and current in real-time.

Is this battery compatible with my existing inverter?

The battery is designed to be compatible with most mainstream hybrid and off-grid inverters on the market. We offer optional integrated 3Kw or 5Kw inverters for a complete solution.

How many batteries can I connect in parallel?

The system supports parallel expansion, enabling you to connect multiple units together to scale up your energy storage capacity based on your home’s requirements.

What is the performance in extreme temperatures?

The battery features a wide operating temperature range from -20°C to 65°C, ensuring reliable performance even in harsh environmental conditions.

What information is shown on the built-in display?

The integrated display provides real-time data on the State of Charge (SOC), current battery voltage, and discharge/charge current for easy local monitoring.
