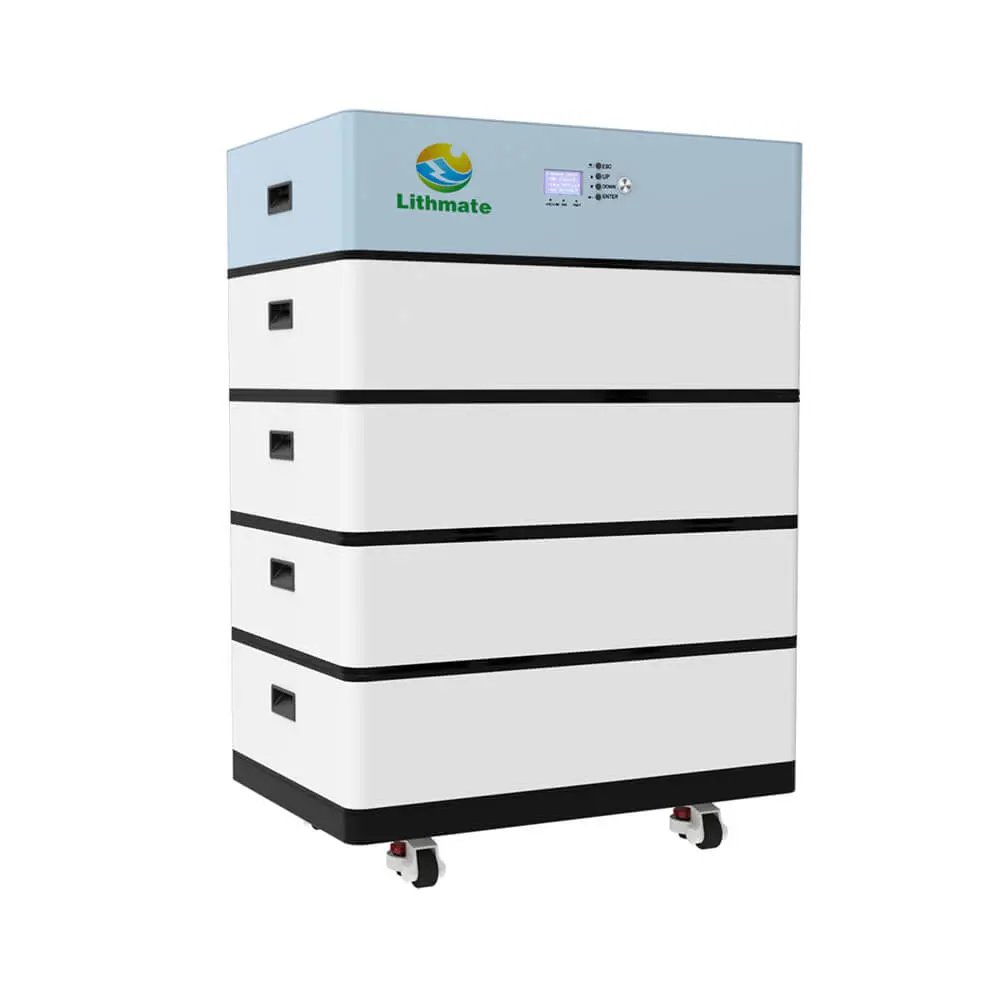

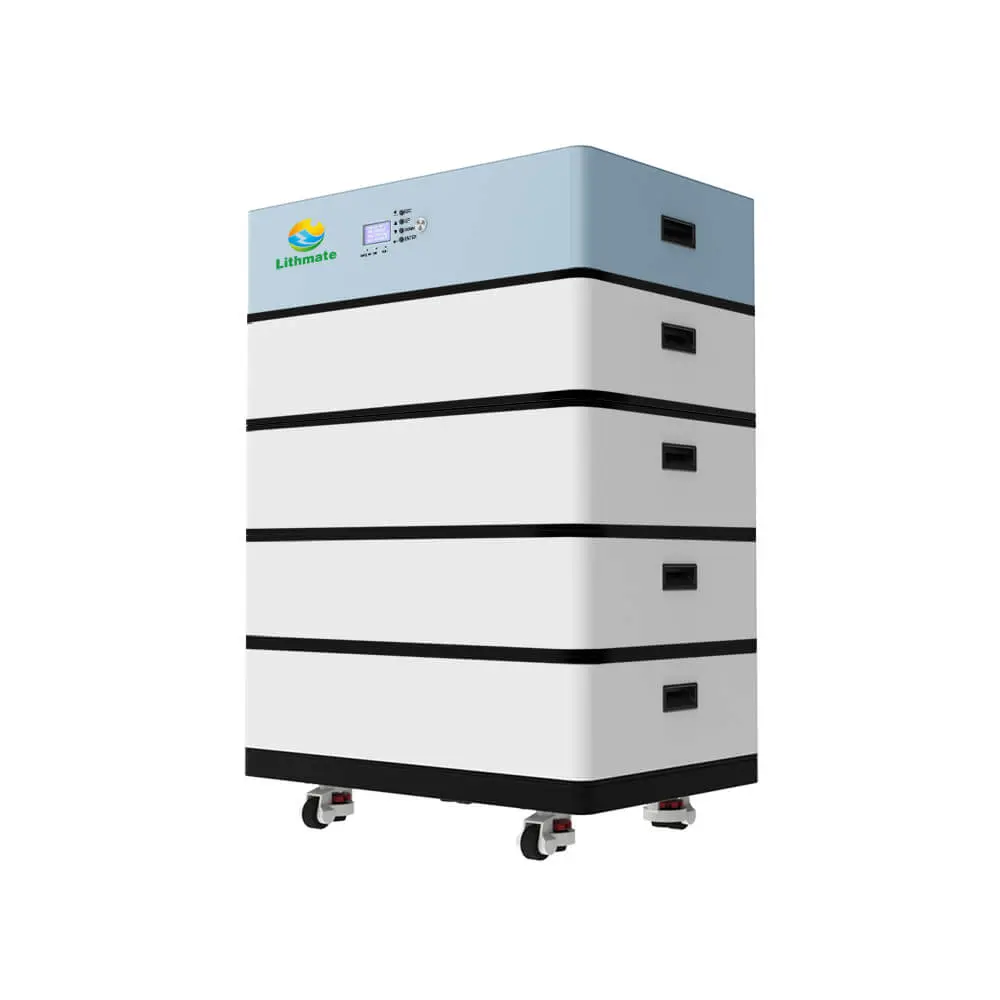

OEM 51.2V 400Ah 20KWH Energy Storage Battery Factory, Company

Lithmate 51.2V 400Ah 20kWh Energy Storage Battery delivers high-capacity, long-lasting power with LiFePO4 cells and multi-layer BMS protection (overcharge/over-discharge/short-circuit/temperature control). Compatible with most inverters and expandable via parallel connection, it supports plug-and-play installation with real-time monitoring. Ideal for residential solar storage, commercial/industrial backup power, and off-grid applications (e.g., remote farms, RVs), ensuring safe, stable, and cost-efficient energy. Key features: 20kWh capacity, 10+ year lifespan, and smart adaptability.

Product Description

⚙️ SPECIFICATION
20Kwh Battery Specifications
Item Parameter
Rated voltage 51.2V
Rated Capacity 400Ah
Energy 20.48KWh
Cell type 3.2V 100Ah
Cell Configuration 16S4P
Dimension 720*485*1021mm (28.35"x19.1"x40.2")
Weight 265KG (584.2lb)
Continuous Discharge 100A
Communication RS485 / RS232 / CAN / WiFi
Display Yes
51.2V 400Ah 20KWH Energy Storage Battery
Frequently Asked Questions
What is the total energy capacity of this battery system?
This energy storage system provides a total rated energy of 20.48KWh with a 51.2V 400Ah configuration.
What type of battery cells are used?
The system utilizes high-quality 3.2V 100Ah cells arranged in a 16S4P configuration for optimal stability and performance.
Does the battery support remote monitoring?
Yes, it supports multiple communication protocols including RS485, RS232, CAN, and WiFi for seamless integration and monitoring.
Can I check the battery status directly on the unit?
Absolutely. The battery is equipped with a built-in display that allows users to monitor real-time data and system status easily.
What are the physical dimensions and weight of the unit?
The unit measures 720*485*1021mm (approx. 28.35" x 19.1" x 40.2") and weighs 265KG (584.2lb).
What is the maximum continuous discharge current?
The system is designed for a continuous discharge current of 100A, suitable for various high-capacity energy storage needs.
