Custom 24V Electric Stacker Lithium Battery Solution Supplier, Suppliers

Lithmate--Professional Forklift Lithium Battery Manufacturer.

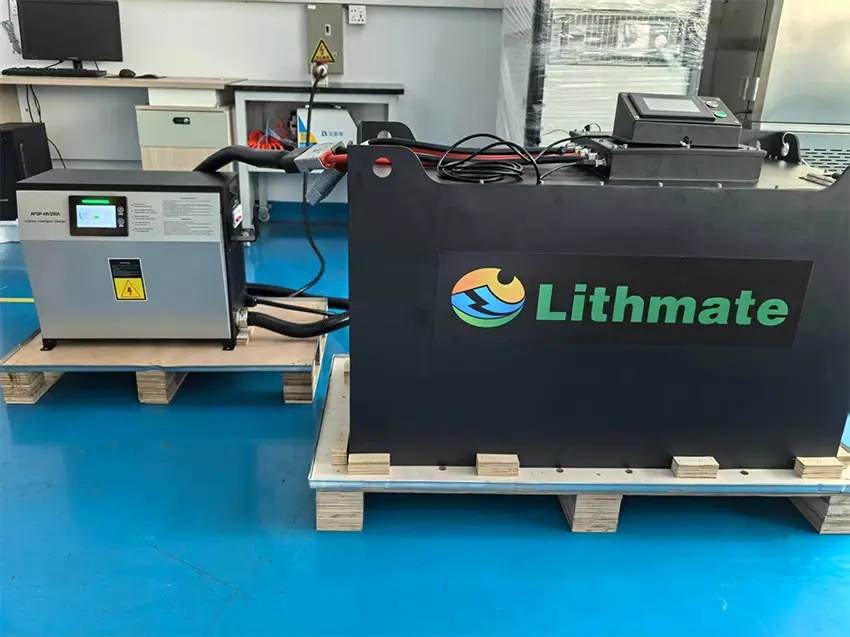

A compact and efficient LiFePO4 battery solution designed for 24V electric stackers. It delivers stable power, fast charging, and maintenance-free operation, helping reduce downtime and improve productivity. The system can be integrated with a matched charger, smart display, and communication protocols for real-time monitoring and customized performance.

Send Inquiry

Product Description

Product Specifications

Electrical Specifications
System Voltage	24V
Nominal Voltage	25.6V
Nominal Capacity	280Ah
Energy	7.16Kwh
Cycle Life	>4,000 cycles
Accessories	Buzzer, Display, Charger Optional
Remote Diagnostics & Upgradation	Optional
Fireproof	Yes, and come with fire extinguisher optional
Mechanical Specifications
Dimensions (L x W x H)	624x284x627mm (24.57x11.18x24.69")
Weight	66KG (145.5lb)
Case Material & IP Rating	Steel, IP67
Charge & Discharge Specifications
Charge Current	200A
Continuous Discharge Current	230A
Peak Discharge Current	460A
Max. Charge Voltage	29.2V
Cut-off Voltage	20V
Battery Management System (BMS)	Yes, built-in BMS

Visual Display

Frequently Asked Questions

What is the expected lifespan of this 24V 280Ah battery?

The battery is designed for longevity, offering a cycle life of more than 4,000 cycles, ensuring reliable performance over many years of heavy industrial use.

Is the battery protected against water and dust?

Yes, the battery features a robust steel case with an IP67 rating, meaning it is highly resistant to dust ingress and can withstand temporary immersion in water.

What kind of safety features are integrated?

It includes a built-in Battery Management System (BMS), fireproof construction, and options for a buzzer and a fire extinguisher for enhanced safety.

Can the battery's health be monitored remotely?

Remote diagnostics and upgradation features are available as an optional add-on to help monitor the battery status and performance from a distance.

What are the charging and discharging capabilities?

The system supports a maximum charge current of 200A and a continuous discharge current of 230A, with the ability to handle peak discharges up to 460A.

Are there any optional accessories available?

Yes, users can opt for additional accessories such as a dedicated display unit, specialized chargers, and remote diagnostic tools depending on their specific needs.
