Custom 48V 300Ah LiFePO4 Forklift Battery Factories, Companies

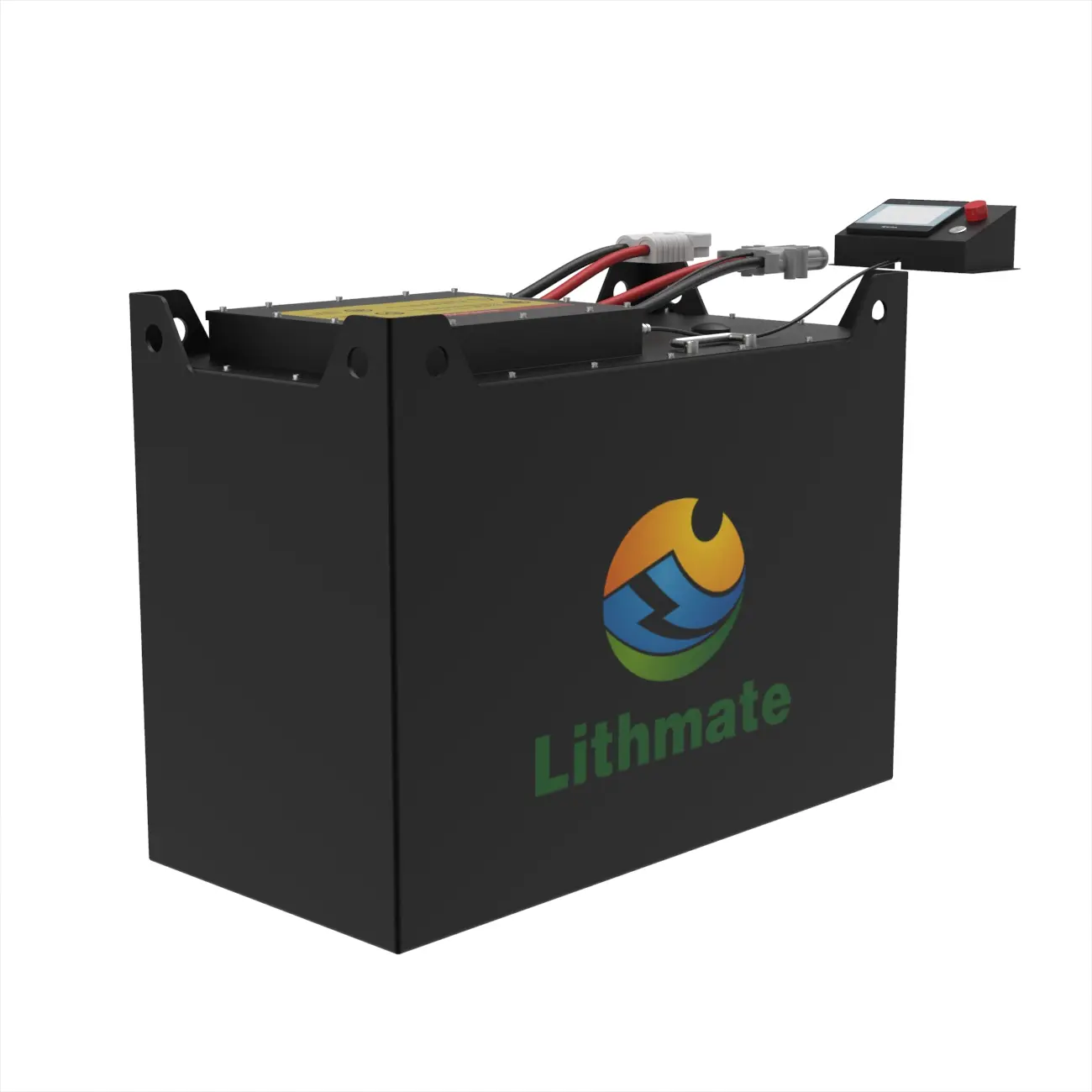

48V 300Ah Lithium Battery for Forklift
Reliable Power Solution for Big Joe Pallet Trucks – High-capacity 48V 300Ah LiFePO4 battery designed for superior performance, long lifespan, and fast charging. Ideal for heavy-duty warehouse operations requiring consistent and efficient energy supply.

Send Inquiry

Product Description

Product Specification

Electrical Specifications
Nominal voltage	51.2V (48V System)
Nominal capacity	304Ah
Energy	15.56Kwh
Cycle life	>4,000 cycles
Function & Options
Remote diagnostics and upgradation	Optional
Heating system	Optional
Battery management system (BMS)	Yes, built-in BMS
Mechanical Specifications
Dimensions (L x W x H)	830414627mm (32.68x16.3x24.69")
Weight	132KG (291lb)
Case material & IP rating	Steel, IP67
Charge & Discharge Specifications
Charge current	200A
Continuous discharge current	280A
Peak discharge current	420A (30s)
Max. charge voltage	58.4V
Cut-off voltage	40V

Frequently Asked Questions

What is the expected lifespan of this 48V lithium battery?

The battery is designed for longevity, offering a cycle life of over 4,000 cycles, ensuring reliable performance for long-term industrial applications.

Is this battery protected against water and dust?

Yes, the battery features a robust steel case and is rated IP67, providing excellent protection against dust ingress and water immersion.

Does the battery include a monitoring system?

Every unit comes with a built-in Battery Management System (BMS) to monitor and protect the cells, and remote diagnostics/upgradation is available as an option.

What are the discharge capabilities for high-demand tasks?

The battery supports a continuous discharge current of 280A and can handle peak discharge currents up to 420A for 30 seconds.

Can this battery be used in cold environments?

While standard operation is highly efficient, an optional heating system can be integrated for optimized performance in low-temperature conditions.

What is the total energy capacity of the 304Ah model?

The 51.2V 304Ah configuration provides a total energy capacity of 15.56Kwh, suitable for demanding industrial equipment.
