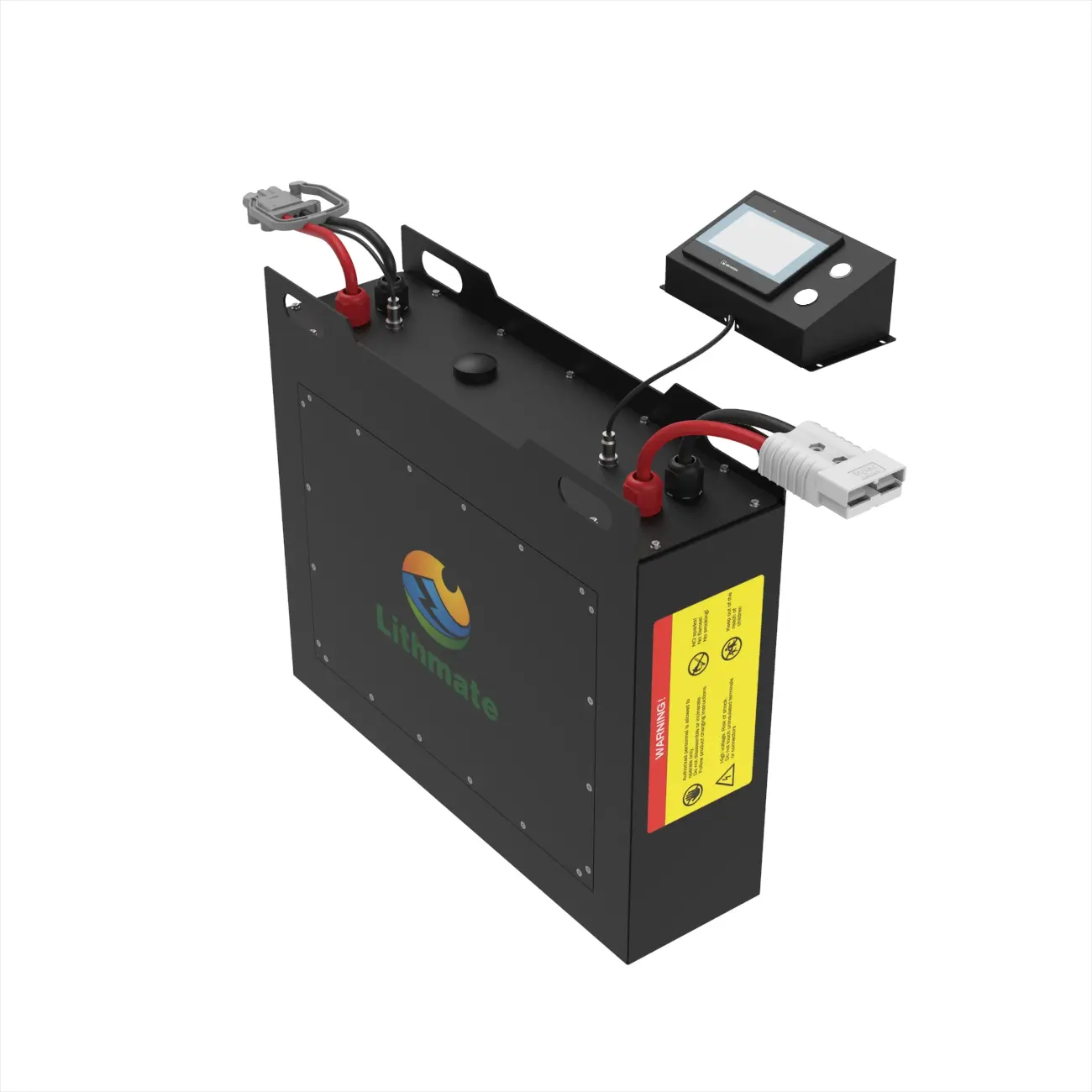

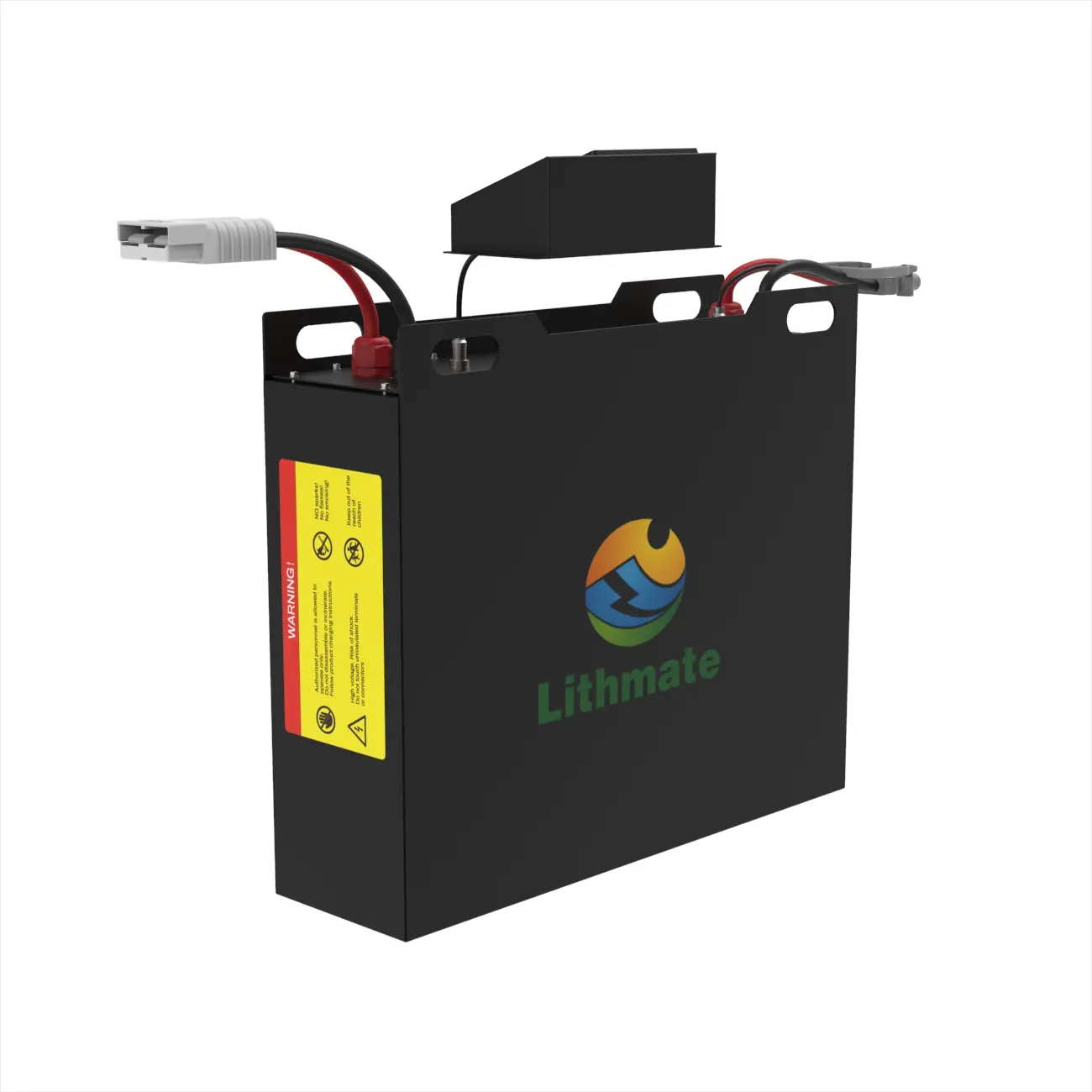

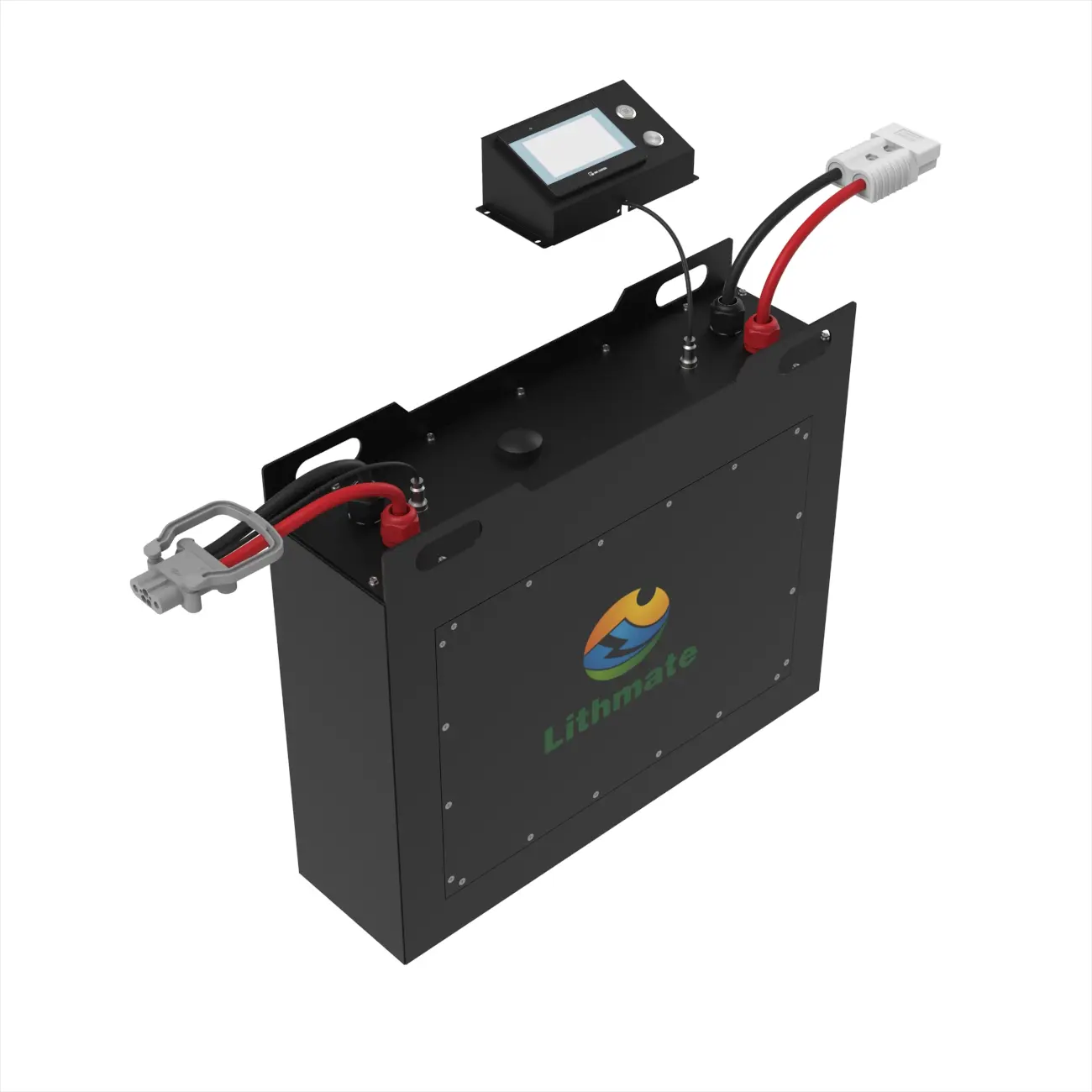

Custom 24V 135Ah LiFePO4 Forklift Battery Factories, Company

The 24V 135Ah Forklift lithium battery is engineered to deliver safe, high-performance power for your material handling equipment. With significant savings in labor, maintenance, energy, and downtime, it offers outstanding long-term value and a strong return on investment.

Send Inquiry

Product Description

SPECIFICATION

Electrical Specifications
System Voltage	24V
Nominal voltage	25.6V
Nominal capacity	135Ah
Energy	3.45Kwh
Cycle life	>4,000 cycles
Function
Remote diagnostics and upgradation	Optional
Heating system	Optional
Mechanical Specifications
Dimensions (L x W x H)	624x207x627mm (24.6x8.1x24.7")
Weight	31KG (68.3lb)
Case material & IP rating	Steel, IP67
Charge & Discharge Specifications
Charge current	100A
Continuous discharge current	100A
Peak discharge current	300A (30s)
Max. charge voltage	29.2V
Cut-off voltage	20V
Battery management system (BMS)	Yes, built-in BMS

Frequently Asked Questions

What is the expected lifespan of this 24V battery?

The battery offers a high cycle life of over 4,000 cycles, ensuring long-term reliability for your power needs.

Is the battery protected against water and dust?

Yes, the battery features a durable steel case with an IP67 rating, providing excellent protection against water ingress and dust.

Does this battery include a management system?

Yes, it comes with a built-in Battery Management System (BMS) to monitor and protect the battery cells during operation.

What are the charging and discharging limits?

The battery supports a continuous charge and discharge current of 100A, with a peak discharge capability of 300A for up to 30 seconds.

Are there options for extreme weather or remote maintenance?

Yes, remote diagnostics, upgradation, and an integrated heating system are available as optional features to enhance performance in various conditions.

What is the physical size and weight of the unit?

The battery weighs 31KG (68.3lb) and has dimensions of 624x207x627mm, making it a robust yet manageable solution for industrial or commercial use.
