Custom 12V 100Ah LiFePO4 RV Battery Manufacturer, Companies

1 / 5

Custom 12V 100Ah LiFePO4 RV Battery Manufacturer, Companies

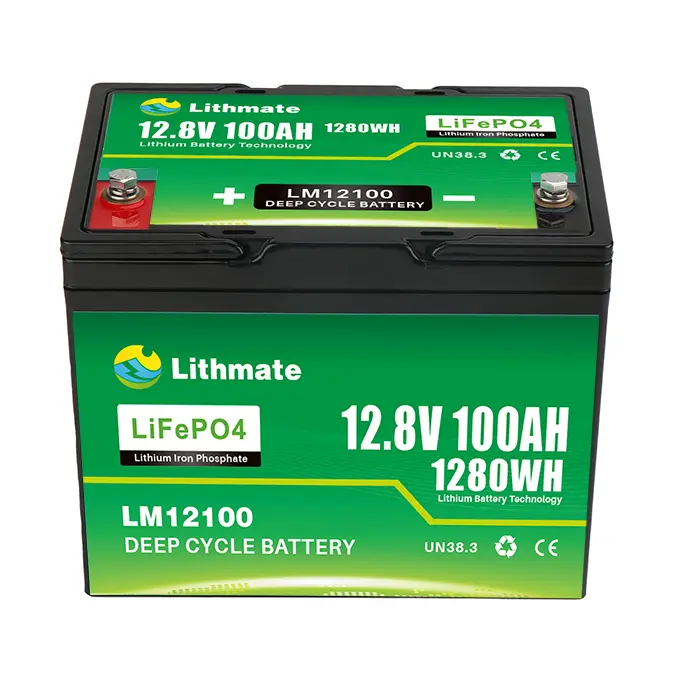

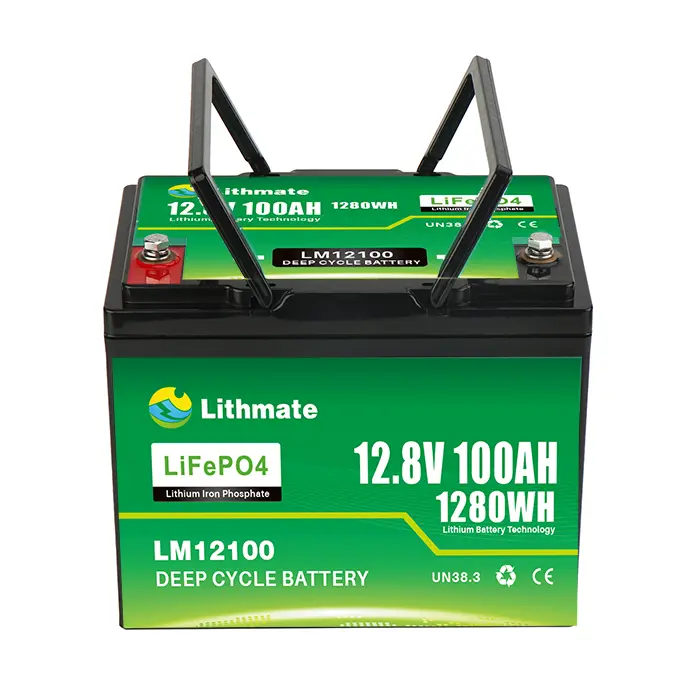

Redefine your journey with Lithmate, the advanced RV LiFePO4 battery for motorhomes and travel trailers. Engineered for excellence, it combines a 50% lighter design with double the energy density and an unprecedented cycle life, offering unmatched reliability on the road.

Send Inquiry

Product Description

Product Specification

Item	Parameter	LM12100
Nominal	Voltage	12.8V
Nominal	Capacity	100Ah
Physical	Dimension	260168209mm (10.24x6.61x8.23")
Physical	Weight	11.5KG (25.36lb)
Electrical	Charge Voltage	14.6V
	Cut-off Voltage	10V
	Charge Current	100A
	Continuous Discharge Current	100A
	Peak Discharge Current	200A
Others	Working Temperature	-20-65℃
	Storage Temperature	0-45℃
	Cycle Life	>4,000 Cycles

Frequently Asked Questions

What is the cycle life of the LM12100 battery?

The LM12100 battery is designed for durability, offering a long service life of over 4,000 cycles at standard conditions.

What are the dimensions and weight of this battery?

The battery measures 260*168*209mm (10.24x6.61x8.23") and weighs approximately 11.5KG (25.36lb), making it compact and portable for RV and marine use.

Can this battery work in extreme temperatures?

Yes, it features a wide working temperature range from -20℃ up to 65℃, ensuring reliable performance in various environmental conditions.

What is the maximum discharge current supported?

The battery supports a continuous discharge current of 100A and can handle a peak discharge current of up to 200A for high-demand starts.

What is the recommended charging voltage?

For optimal performance and longevity, the recommended charge voltage for this 12.8V system is 14.6V.

Is this battery suitable for RV applications?

Absolutely. With its 100Ah capacity, 12.8V nominal voltage, and lightweight design, it is specifically optimized for RV, solar storage, and marine deep-cycle applications.
