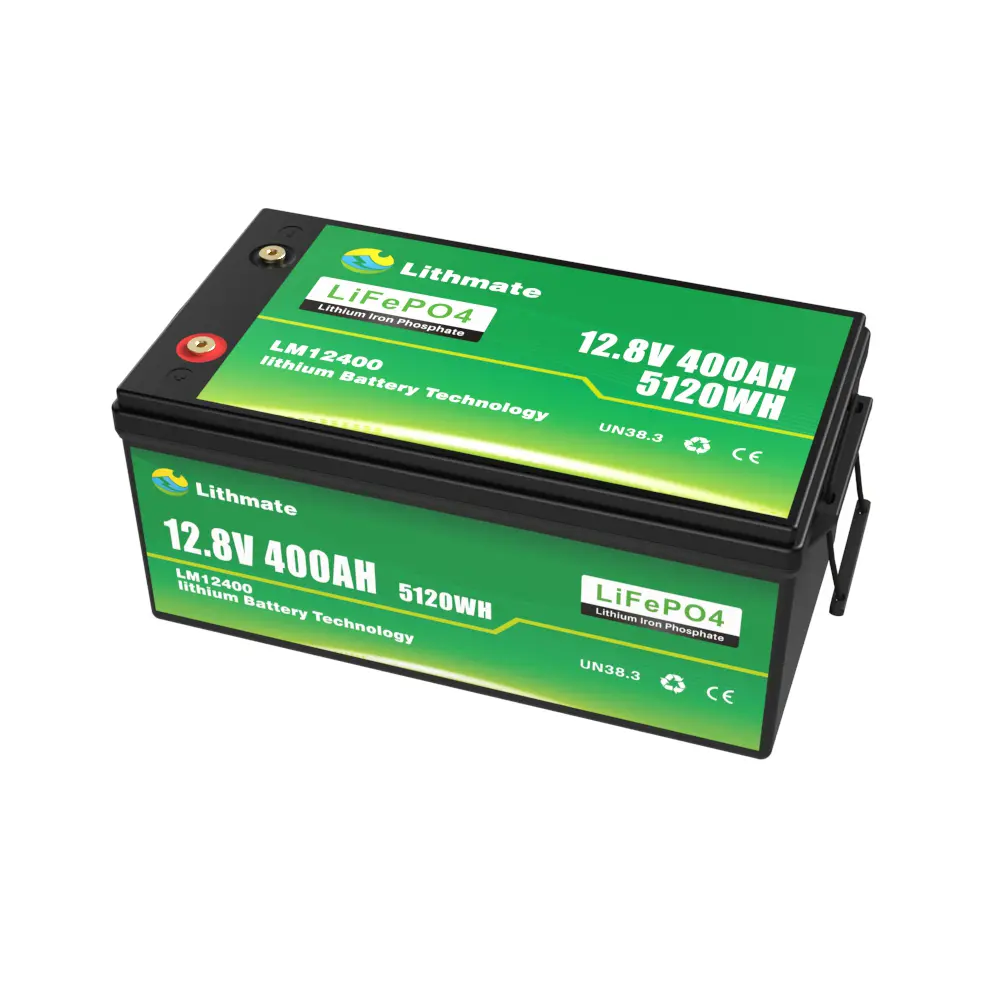

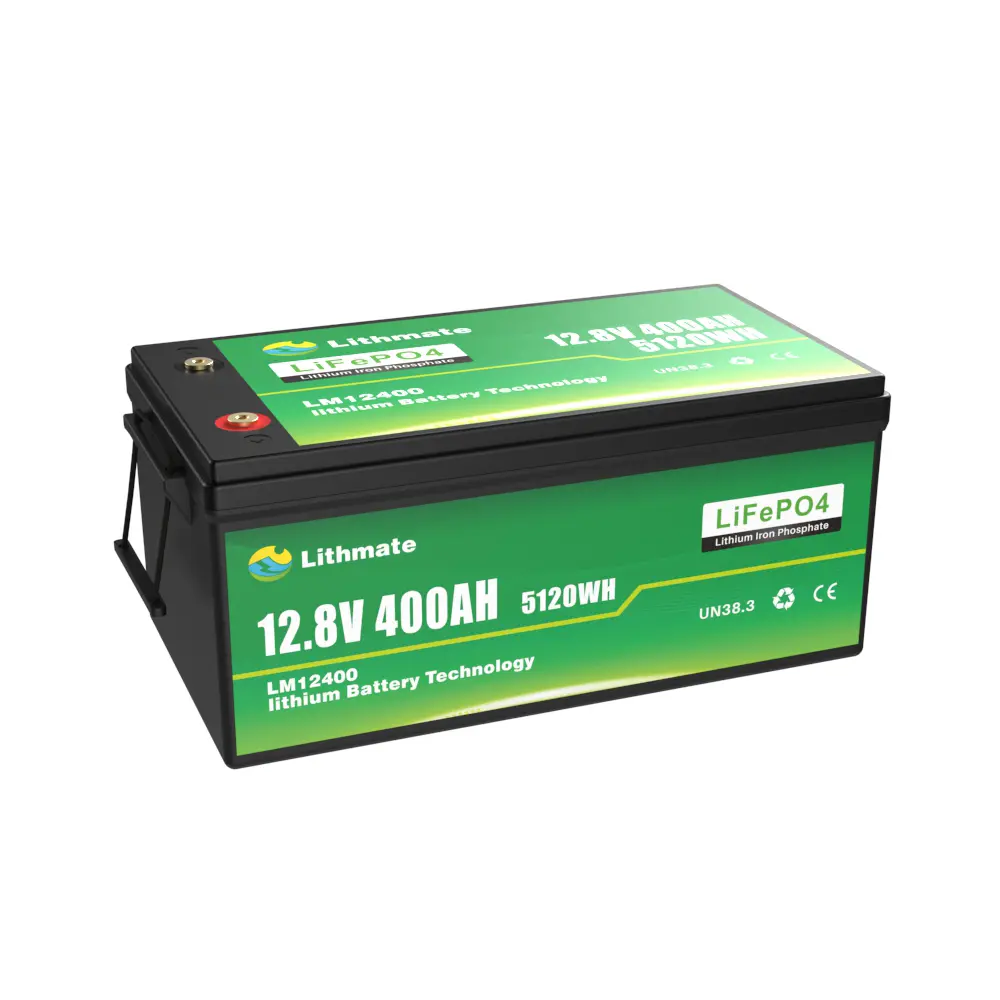

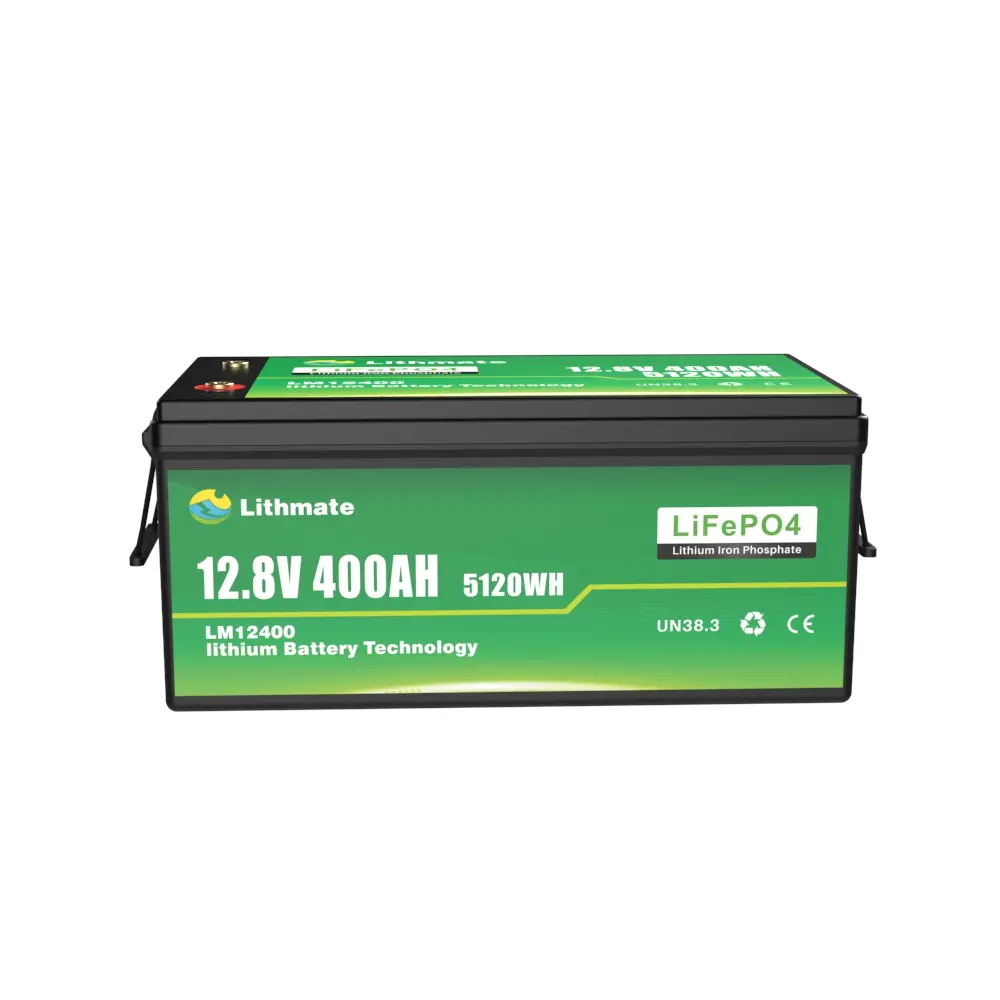

OEM Lithium Deep Cycle Battery 12V 400Ah for RV Manufacturers, Suppliers

A high-capacity 12V 400ah lithium iron phosphate (LiFePO4) battery designed for RVs, providing stable 12V power, long cycle life (4000+ cycles), and efficient energy storage. Features built-in BMS for safety, fast charging, and deep discharge capability. Ideal for off-grid and solar applications.

Send Inquiry

Product Description

Product Specification

Item	Parameter	LM12400
Nominal	Voltage	12.8V
Nominal	Capacity	400Ah
Physical	Dimension	525270220mm (20.67x10.63x8.66")
Physical	Weight	38KG (83.72lb)
Electrical	Charge Voltage	14.6V
	Cut-off Voltage	10V
	Charge Current	100A
	Continuous Discharge Current	200A
	Peak Discharge Current	400A
Others	Working Temperature	-20-65℃
	Storage Temperature	0-45℃
	Cycle Life	>4,000 Cycles

Key Performance Highlights

✓ High Durability: Supports over 4,000 deep cycles for long-term power reliability.

✓ Robust Discharge: Features 200A continuous discharge and 400A peak capability.

✓ Extreme Weather Ready: Stable operation within -20℃ to 65℃ temperature ranges.

Frequently Asked Questions

What is the lifespan of the LM12400 lithium battery?

The battery is designed for longevity, providing a cycle life of more than 4,000 cycles under standard operating conditions.

What are the charging voltage requirements?

The nominal charge voltage for this 12.8V system is 14.6V, with a recommended charge current of 100A.

Can this battery handle high-power appliances?

Yes, it supports a continuous discharge current of 200A and can handle peak discharge currents of up to 400A, making it suitable for high-demand RV and marine applications.

What is the weight and physical size of the unit?

The battery weighs approximately 38KG (83.72lb) and has dimensions of 525*270*220mm (20.67x10.63x8.66").

Does the battery work in cold or hot environments?

The battery has a wide working temperature range from -20℃ to 65℃, ensuring reliable performance in various climates.

What is the discharge cut-off voltage?

To protect the cells, the discharge cut-off voltage is set at 10V.
