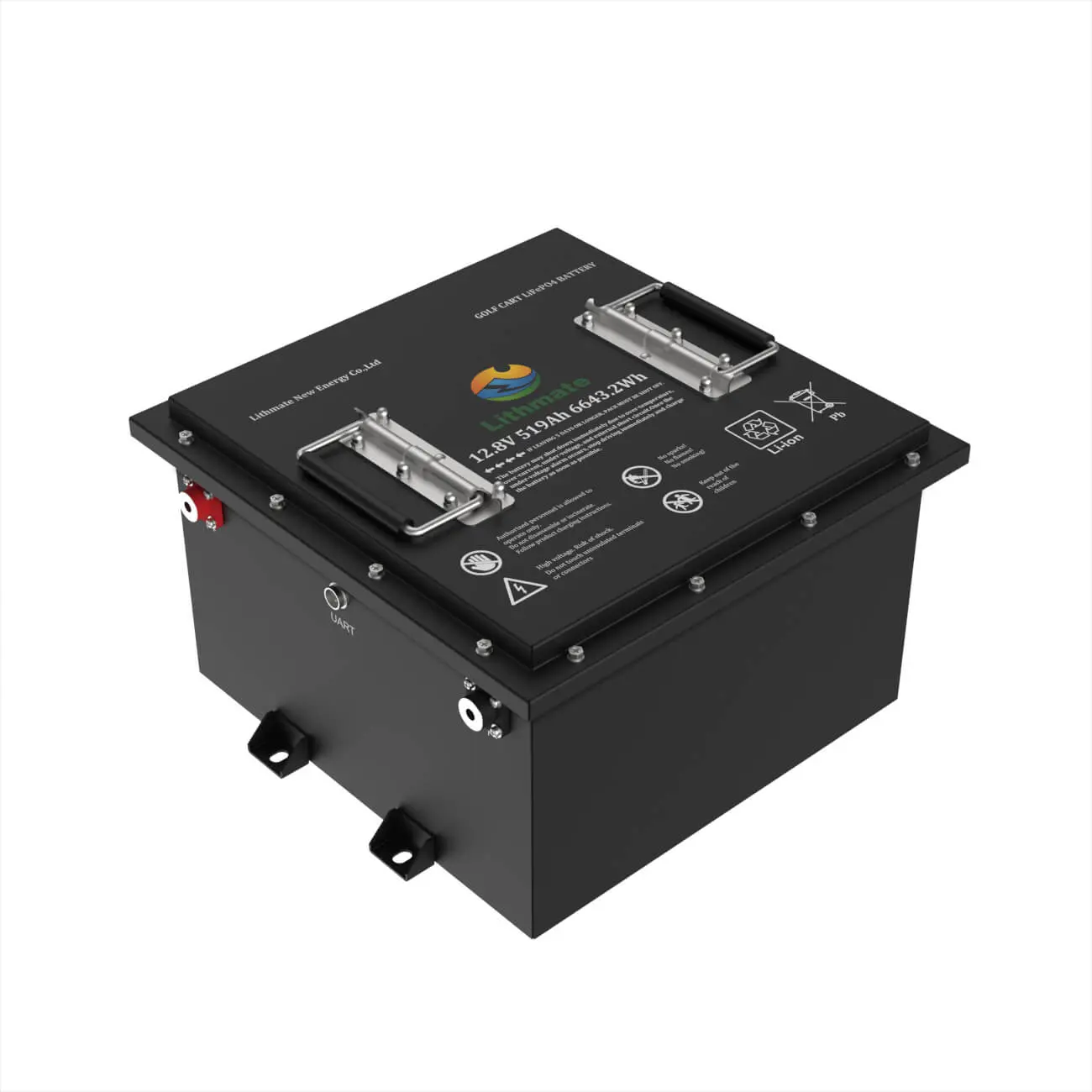

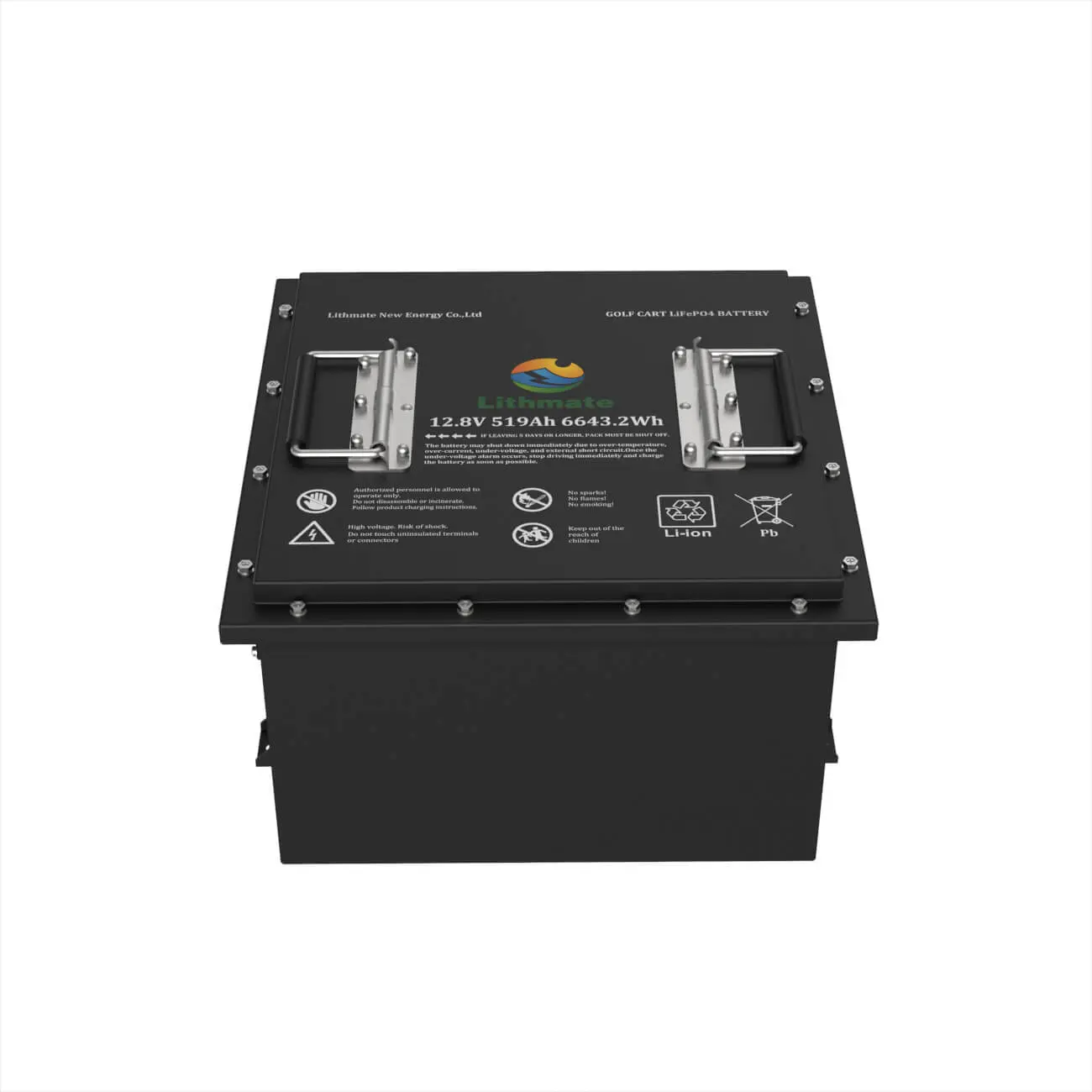

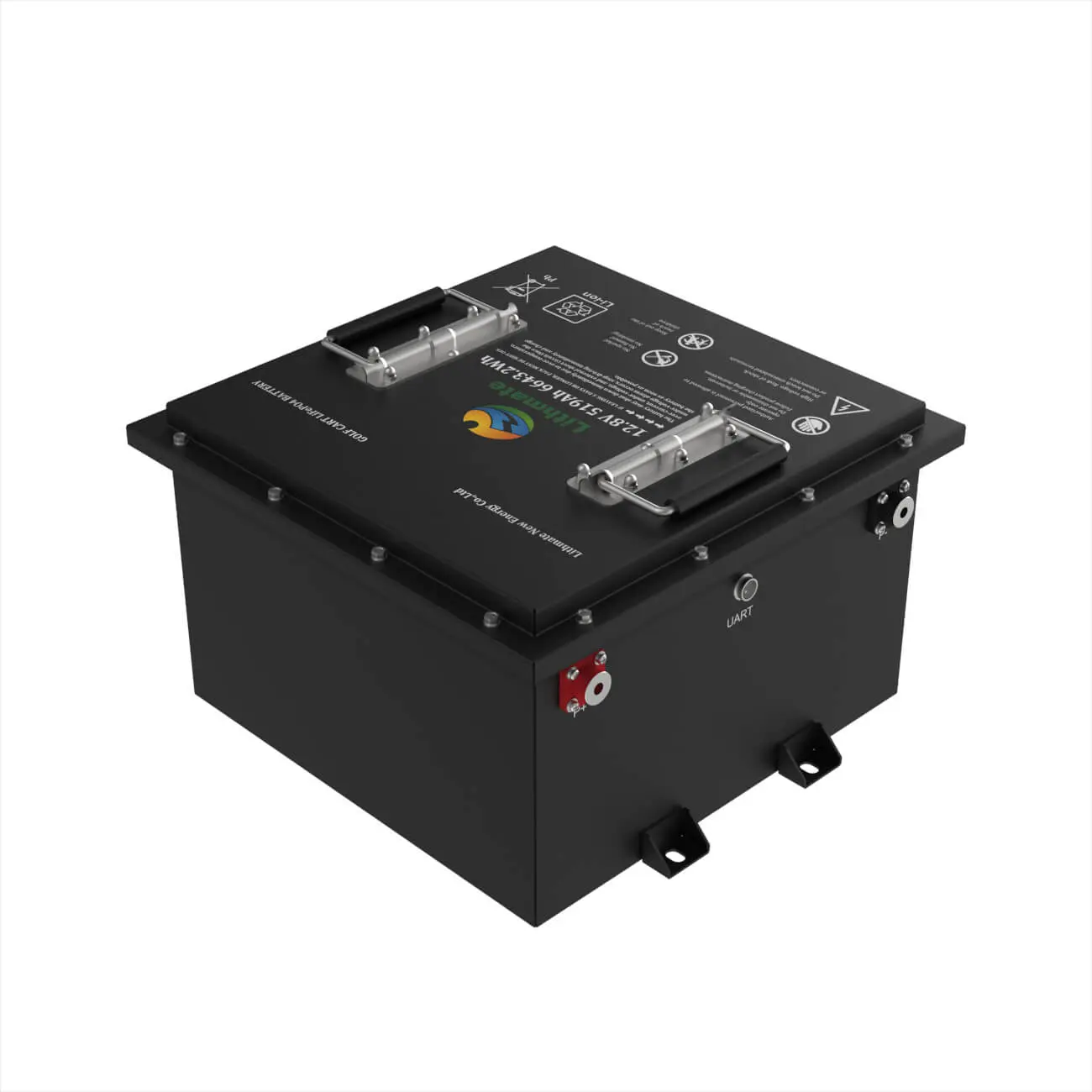

Custom 12V 519Ah LiFePO4 Bluetooth Battery Supplier, Companies

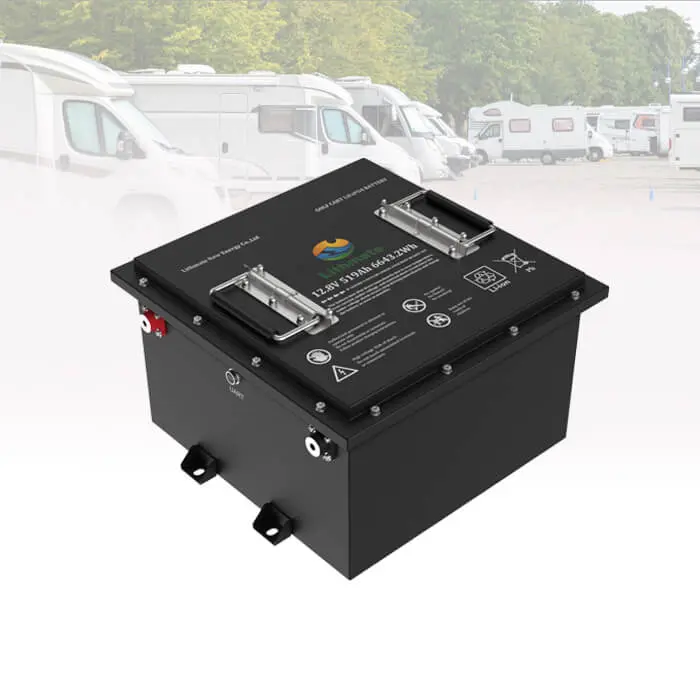

High-capacity 12V 519Ah lithium iron phosphate battery designed specifically for caravans. Equipped with Bluetooth monitoring for real-time status updates and easy management via smartphone. Long-lasting, safe, and maintenance-free power solution ideal for caravan energy needs.

Send Inquiry

Product Description

Technical Specification

-20 to 65℃

Category	Parameter	Value (LM12519)
Nominal	Voltage	12.8V
Nominal	Capacity	519Ah
Physical	Dimension	404404254mm (15.91x15.91x10”)
Physical	Weight	54.33KG (119.68lb)
Electrical	Charge Voltage	14.6V
	Cut-off Voltage	10V
	Charge Current	100A
	Continuous Discharge Current	150A
	Peak Discharge Current	300A
Environment	Working Temperature
	Storage Temperature	0 to 45℃
	Cycle Life	>4,000 Cycles

LiFePO4 Battery 12V 519Ah Deep Cycle Battery

High Capacity

Large 519Ah energy storage

Long Life

>4,000 deep discharge cycles

Peak Power

Up to 300A discharge current

Frequently Asked Questions

What is the nominal voltage and capacity of the LM12519?

The LM12519 battery features a nominal voltage of 12.8V and a high capacity of 519Ah, providing reliable power for deep cycle applications.

How long is the cycle life of this LiFePO4 battery?

This battery is designed for longevity, offering a cycle life of more than 4,000 cycles under recommended operating conditions.

What are the dimensions and weight of the unit?

The physical dimensions are 404*404*254mm (approximately 15.91x15.91x10 inches), and it weighs 54.33KG (119.68 lbs).

What is the maximum discharge current supported?

The battery supports a continuous discharge current of 150A and can handle a peak discharge current of up to 300A for short durations.

Can this battery operate in extreme temperatures?

Yes, the working temperature range is between -20°C and 65°C, making it suitable for various climates, though storage is recommended between 0°C and 45°C.

What is the recommended charging voltage?

The standard charge voltage for this 12.8V LiFePO4 system is 14.6V, with a discharge cut-off voltage of 10V.
