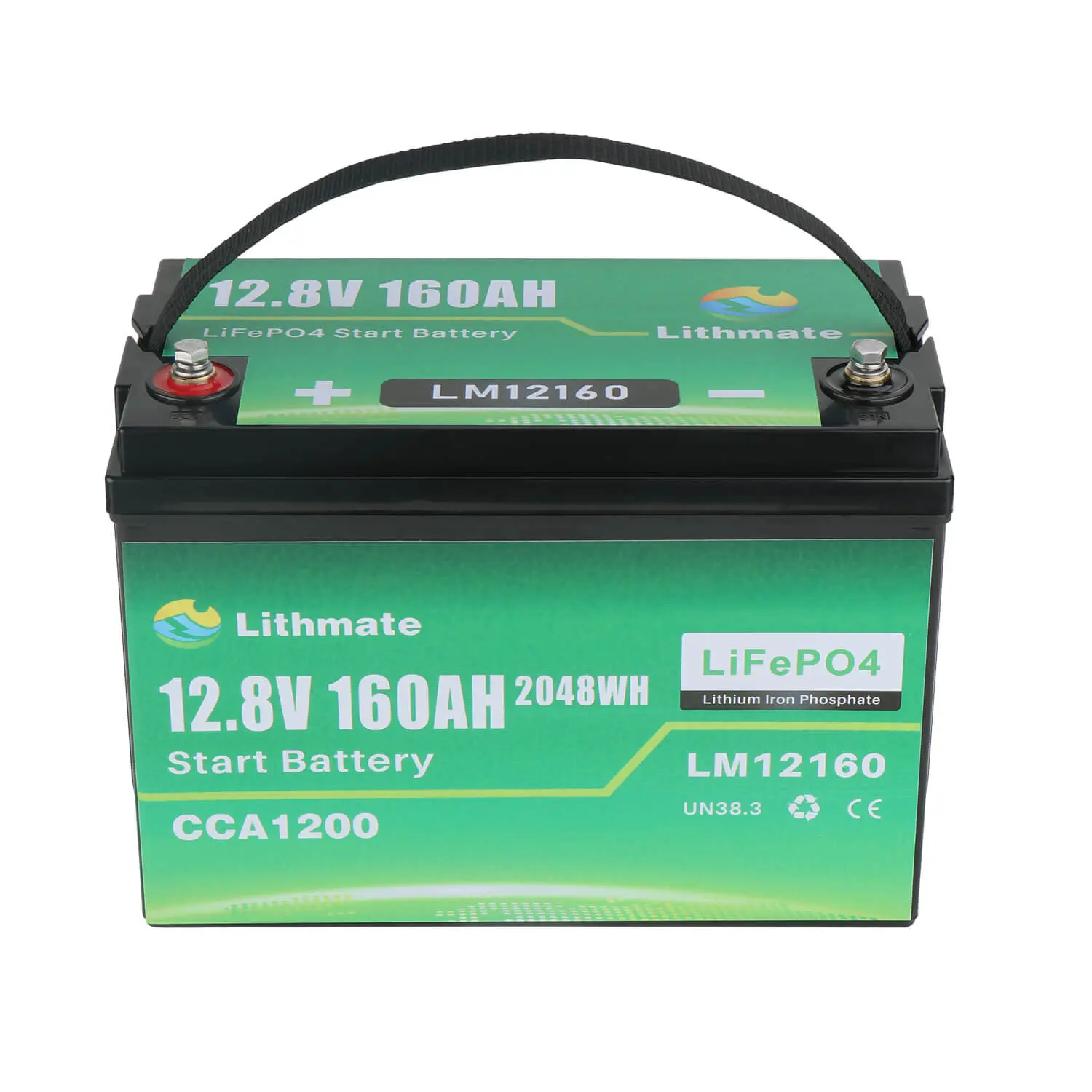

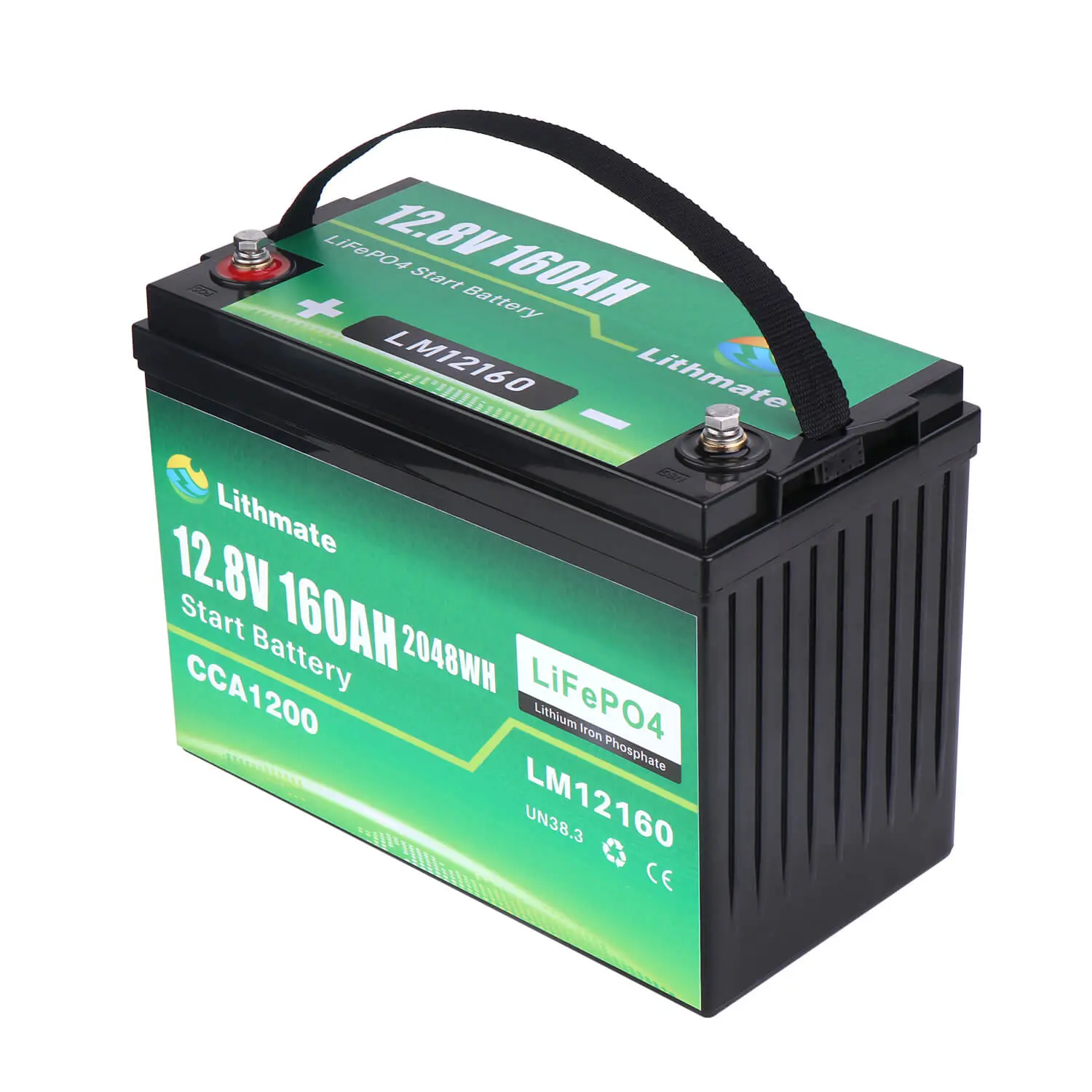

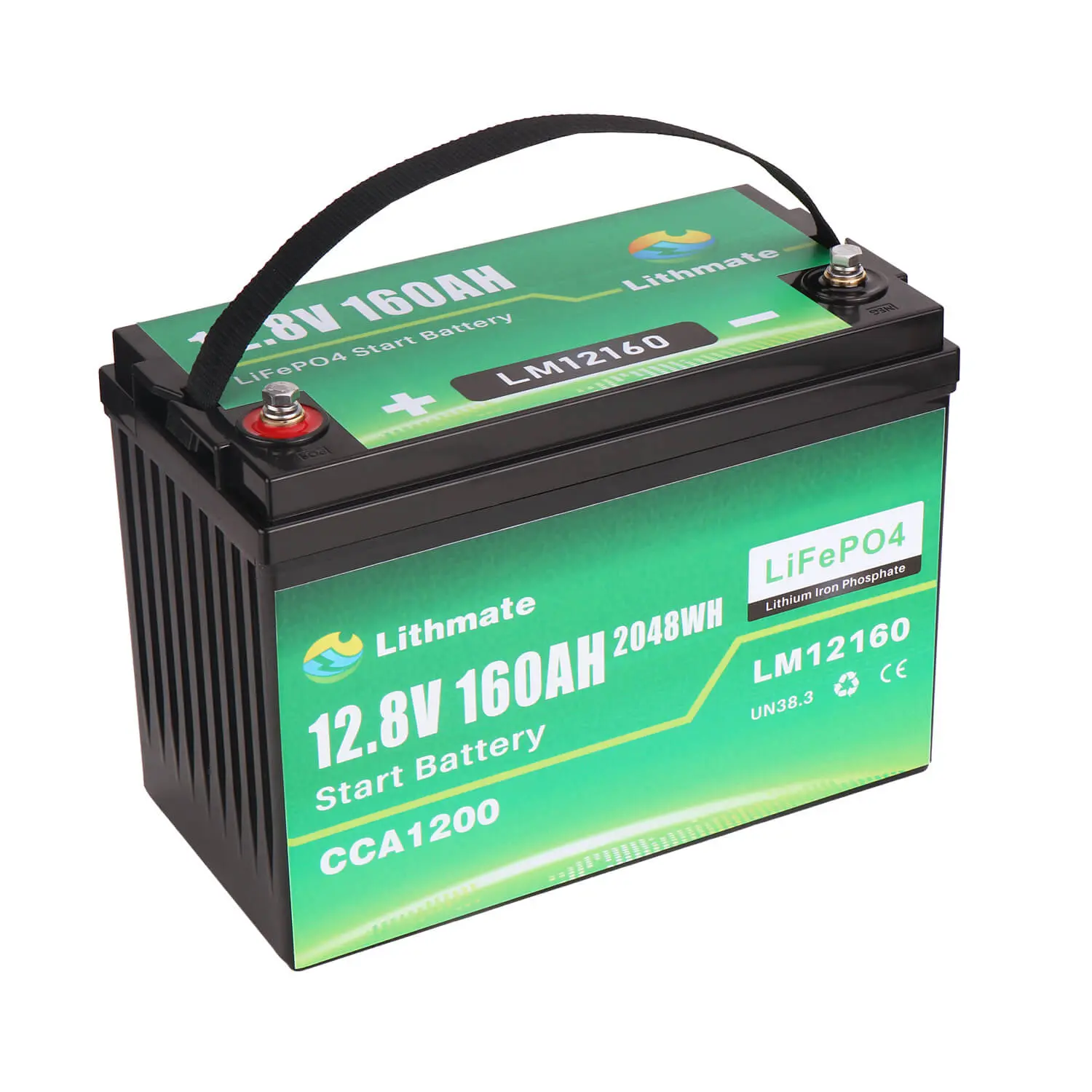

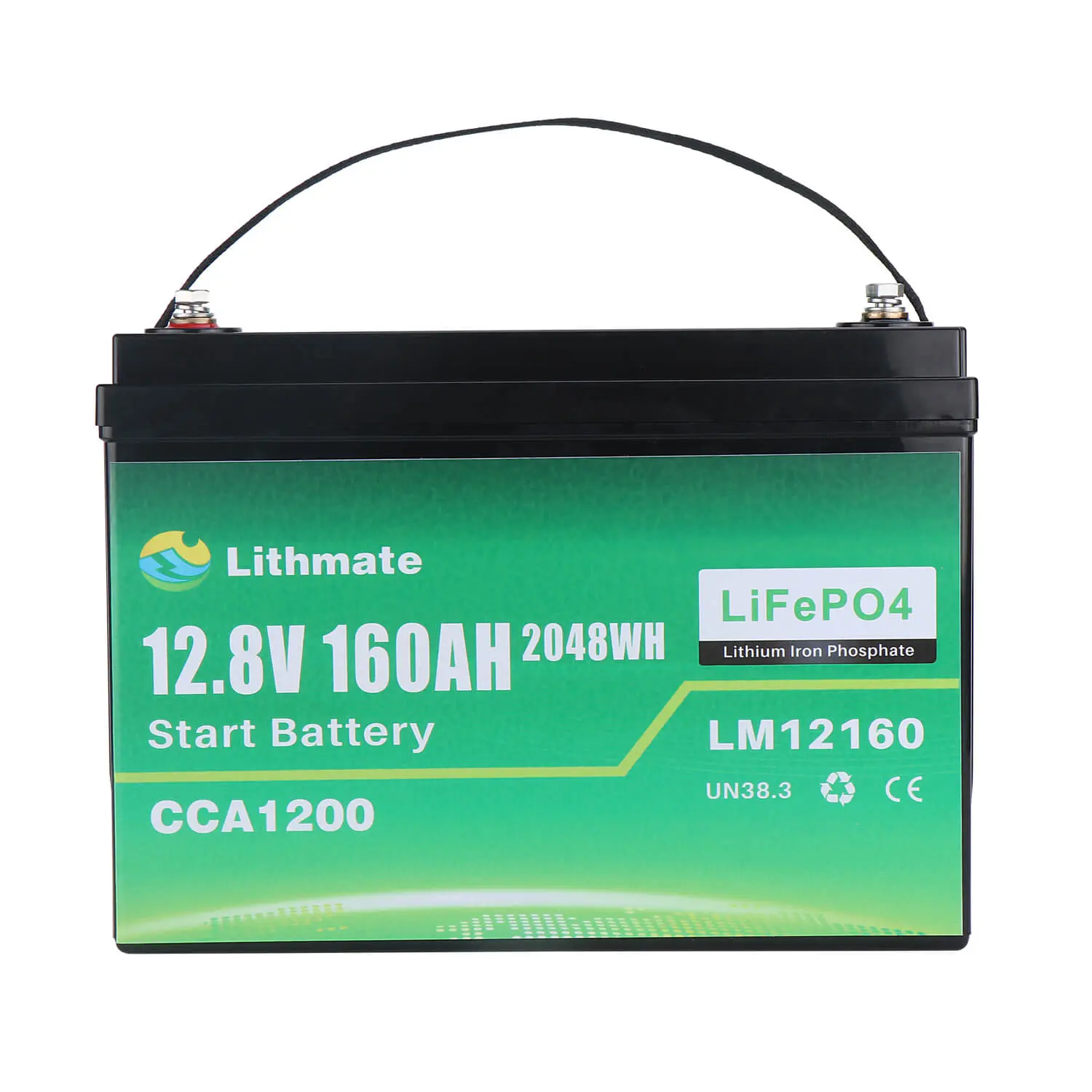

Custom 12V 160Ah Cranking Battery with Emergency Start Factory, Companies

Cranking and deep cycle dual purpose use 12V 160Ah lithium cranking battery is built for starting applications, offering powerful cold cranking performance combined with smart safety features like Emergency Start. It’s ideal for trucks, RVs, marine engines.

Send Inquiry

Product Description

SPECIFICATION

Item	Parameter	LMS12160
Nominal	Voltage	12.8V
Nominal	Capacity	160Ah
Physical	Dimension	328172235mm (12.91x6.77x9.25”)
Physical	Weight	16.1KG (35.5lb)
Electrical	Charge Voltage	14.6V
	Cut-off Voltage	10V
	Continuous Discharge Current	100A
	CCA	1200
Others	Working Temperature	-20-65℃
	Storage Temperature	0-45℃
	Cycle Life	>4000 Cycles

Product FAQ

What is the cycle life of the LMS12160 battery?

The LMS12160 battery offers an exceptional cycle life of more than 4,000 cycles, ensuring long-term durability and reliability for various applications.

What are the dimensions and weight of this model?

The battery measures 328*172*235mm (approximately 12.91x6.77x9.25 inches) and weighs 16.1KG (35.5lb), making it a compact yet powerful energy solution.

Can this battery operate in extreme temperatures?

Yes, it is designed to perform in a wide range of conditions, with a working temperature range of -20℃ to 65℃. For storage, it is recommended to keep it between 0-45℃.

What is the Cold Cranking Amps (CCA) rating for this battery?

The LMS12160 features a CCA rating of 1200, providing robust starting power for compatible electrical systems.

What are the charging and cut-off voltage parameters?

The battery has a nominal voltage of 12.8V, with a recommended charge voltage of 14.6V and a safety cut-off voltage at 10V.

What is the maximum continuous discharge current?

The LMS12160 supports a continuous discharge current of up to 100A, suitable for high-demand power requirements.
