OEM 12V 18Ah Lithium LiFePO4 Deep Cycle Battery Manufacturer, Factory

OEM 12V 18Ah Lithium LiFePO4 Deep Cycle Battery Manufacturer, Factory

OEM 12V 18Ah Lithium LiFePO4 Deep Cycle Battery Manufacturer, Factory

1 / 3

OEM 12V 18Ah Lithium LiFePO4 Deep Cycle Battery Manufacturer, Factory

OEM 12V 18Ah Lithium LiFePO4 Deep Cycle Battery Manufacturer, Factory

OEM 12V 18Ah Lithium LiFePO4 Deep Cycle Battery Manufacturer, Factory

OEM 12V 18Ah Lithium LiFePO4 Deep Cycle Battery Manufacturer, Factory

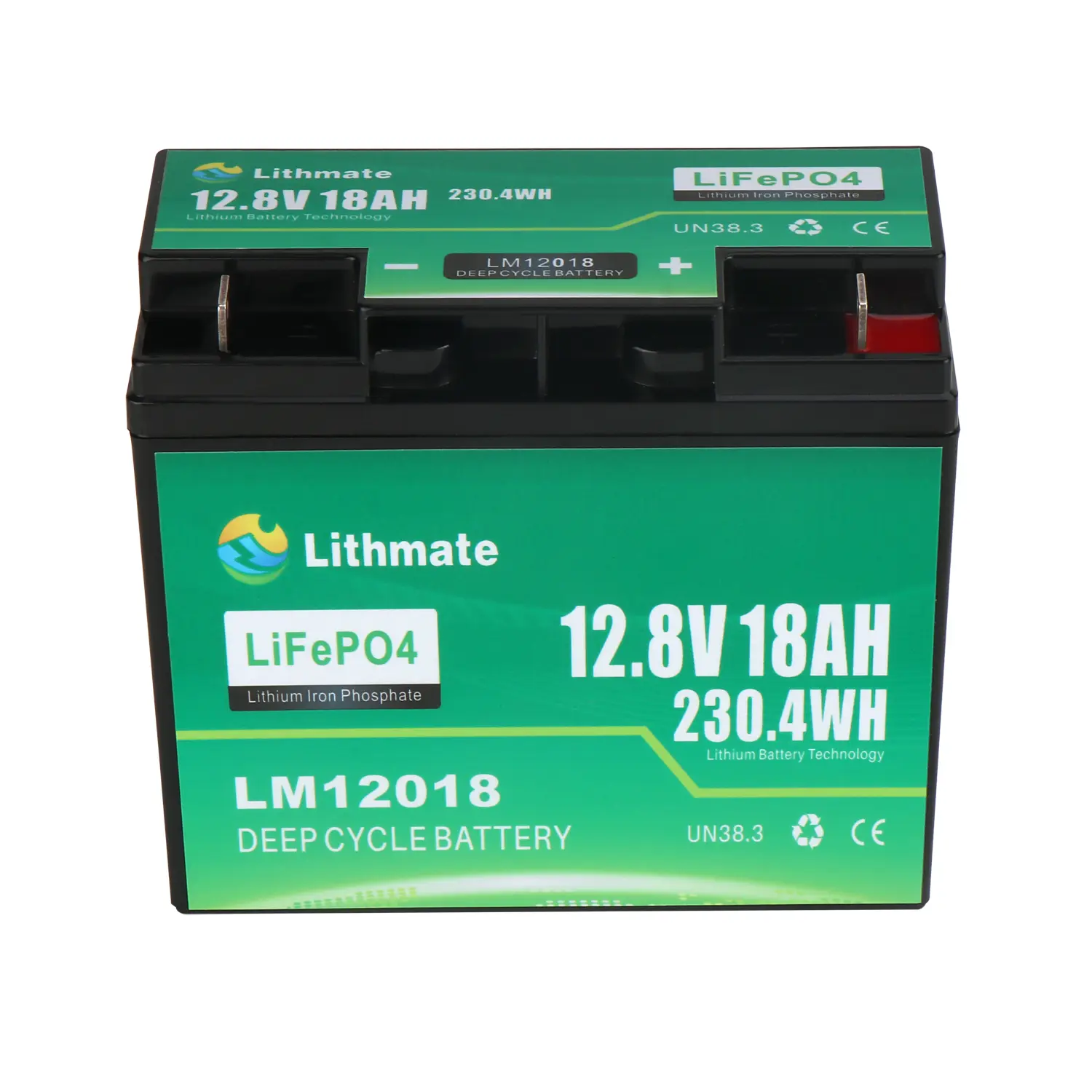

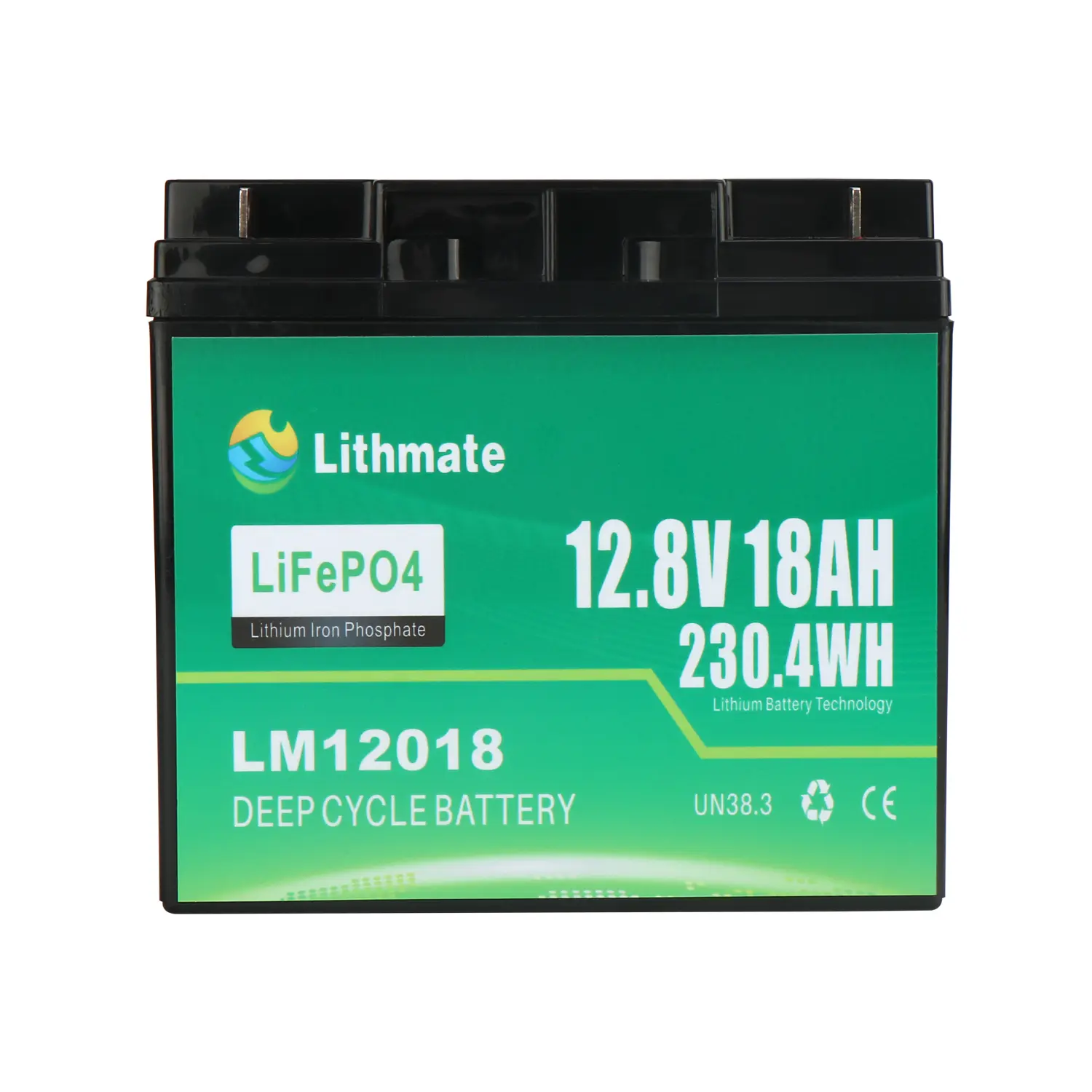

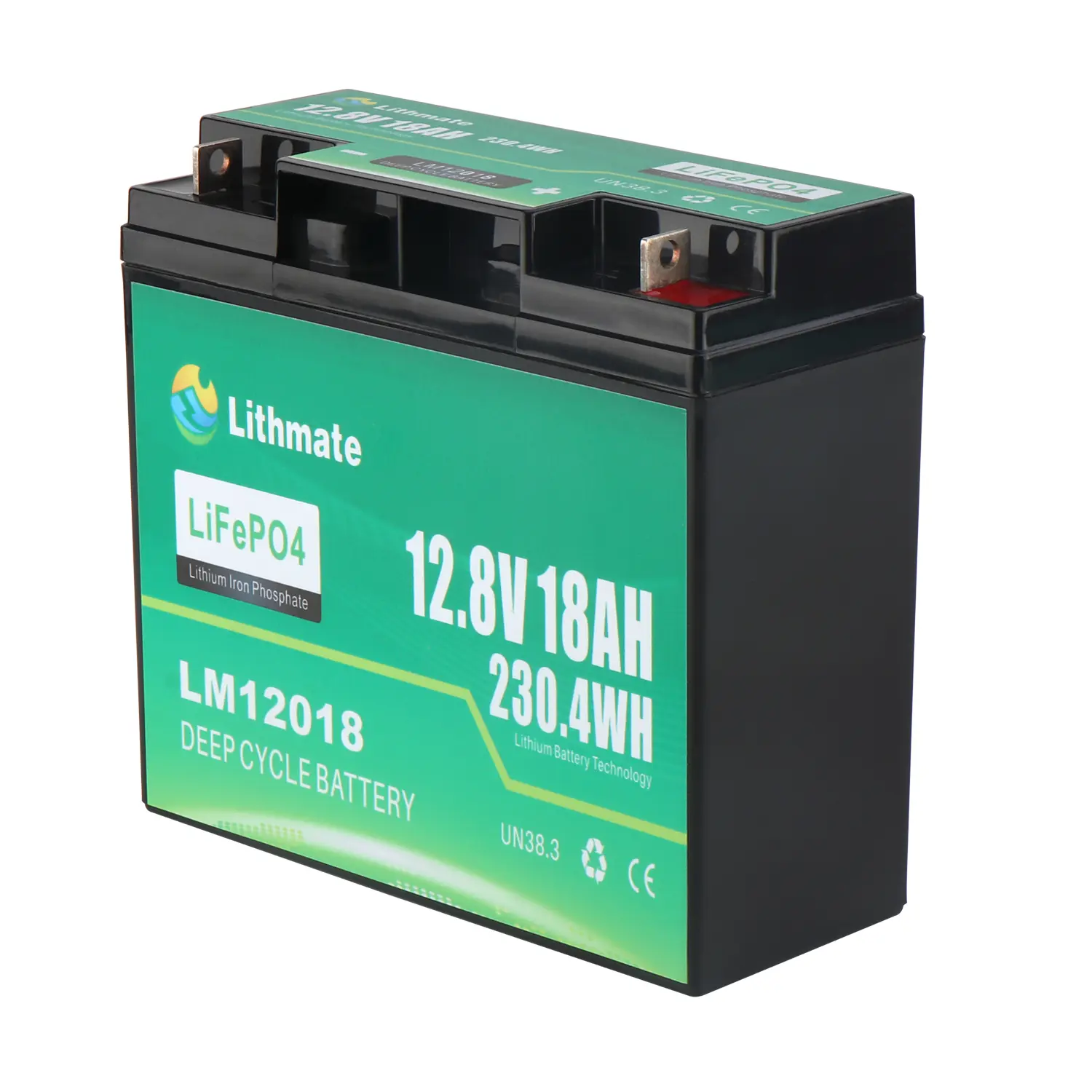

12V 18Ah deep-cycle lithium battery offers long lifespan, lightweight design, high energy density, and fast charging compared to traditional lead-acid batteries. It provides stable power output even under deep discharges (80-100% DOD), making it ideal for solar energy storage, electric scooters, and backup power systems. Its maintenance-free operation and resistance to vibrations enhance reliability in mobile and off-grid setups.

Send Inquiry

Product Description

SPECIFICATION

Item	Parameter	LM12018
Nominal	Voltage	12.8V
Nominal	Capacity	18Ah
Physical	Dimension	18177170mm (7.13x3.03x6.69")
Physical	Weight	2.8KG (6.17lb)
Electrical	Charge Voltage	14.6V
	Cut-off Voltage	10V
	Charge Current	18A
	Continuous Discharge Current	18A
	Peak Discharge Current	36A
Others	Working Temperature	-20-65℃
	Storage Temperature	0-45℃
	Cycle Life	>4,000 Cycles

LM12018 Battery Specification Image

Common Questions & Answers

QWhat is the expected lifespan of the LM12018 battery?

The LM12018 battery is designed for longevity, offering a cycle life of more than 4,000 cycles under standard operating conditions.

QWhat are the physical dimensions and weight?

The battery measures 181*77*170mm (approximately 7.13x3.03x6.69 inches) and weighs 2.8KG (6.17lb), making it a compact and lightweight solution.

QWhat is the nominal voltage and capacity?

This model features a nominal voltage of 12.8V and a nominal capacity of 18Ah.

QWhat temperature range can this battery operate in?

The battery supports a wide working temperature range from -20℃ up to 65℃, suitable for various environmental conditions.

QWhat is the maximum discharge current supported?

The LM12018 supports a continuous discharge current of 18A and can handle a peak discharge current of up to 36A.

QWhat is the recommended charging voltage?

For optimal performance and safety, the recommended charge voltage is 14.6V with a cut-off voltage set at 10V.
