Custom 24V 105Ah Lithium Cranking Battery for Trucks Manufacturer, Company

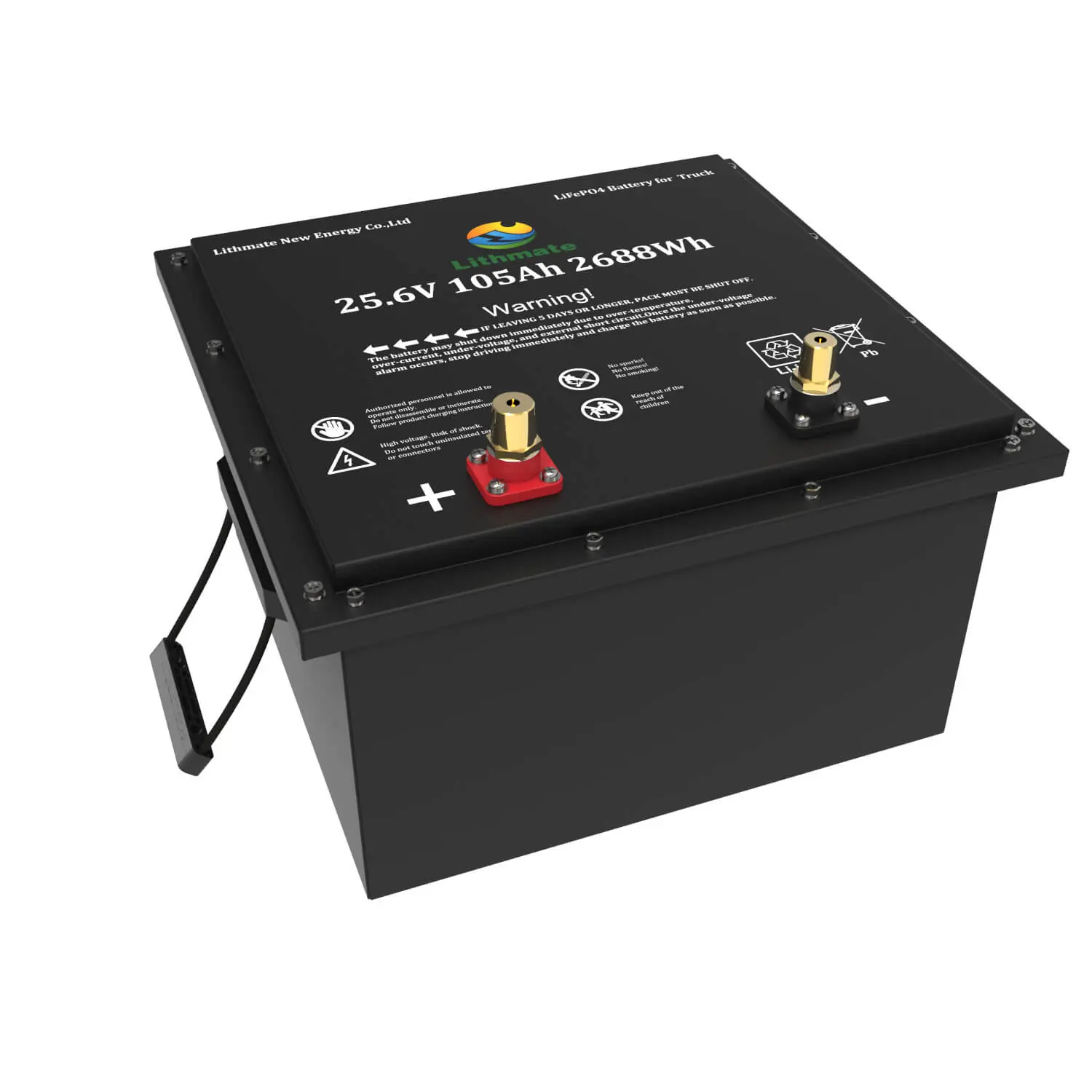

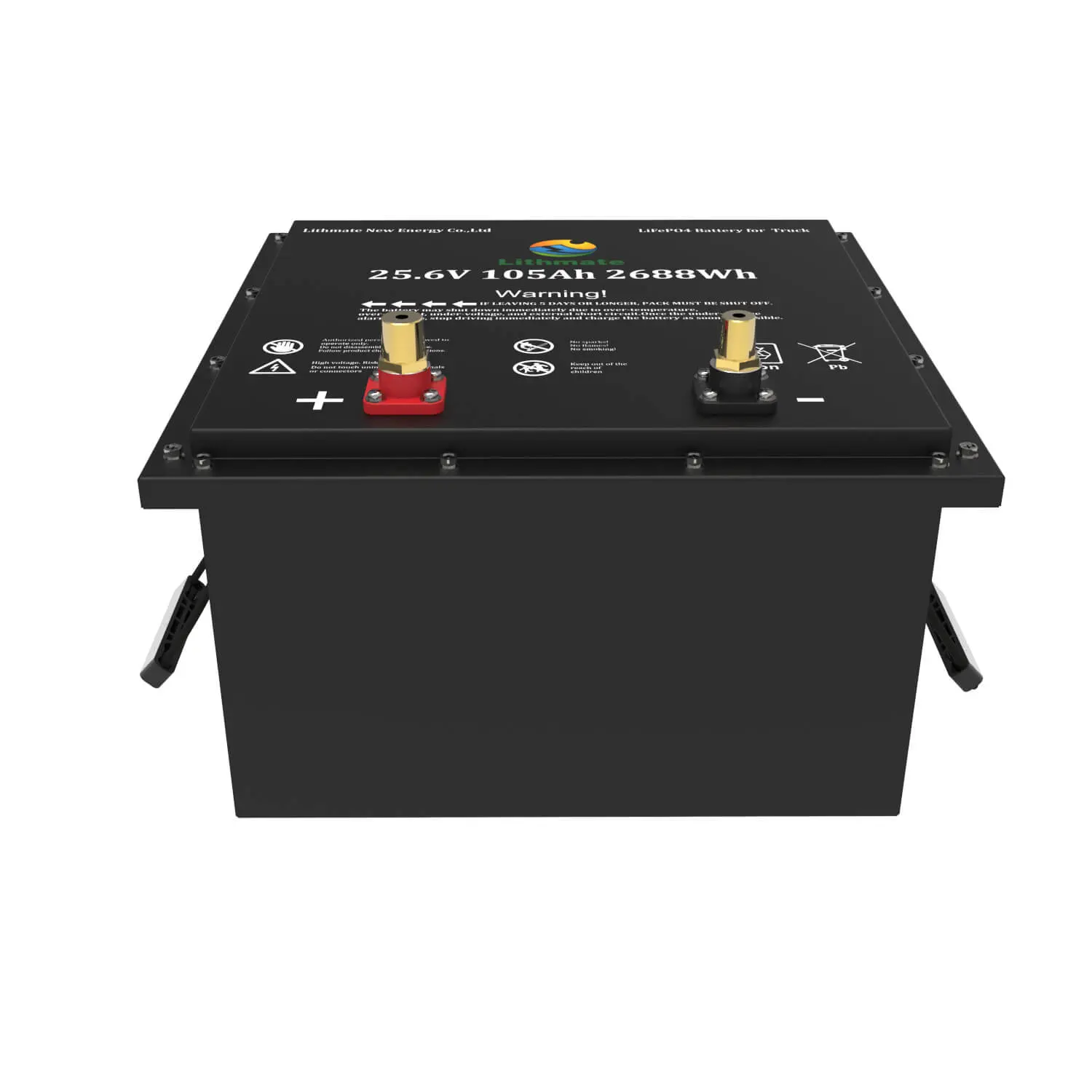

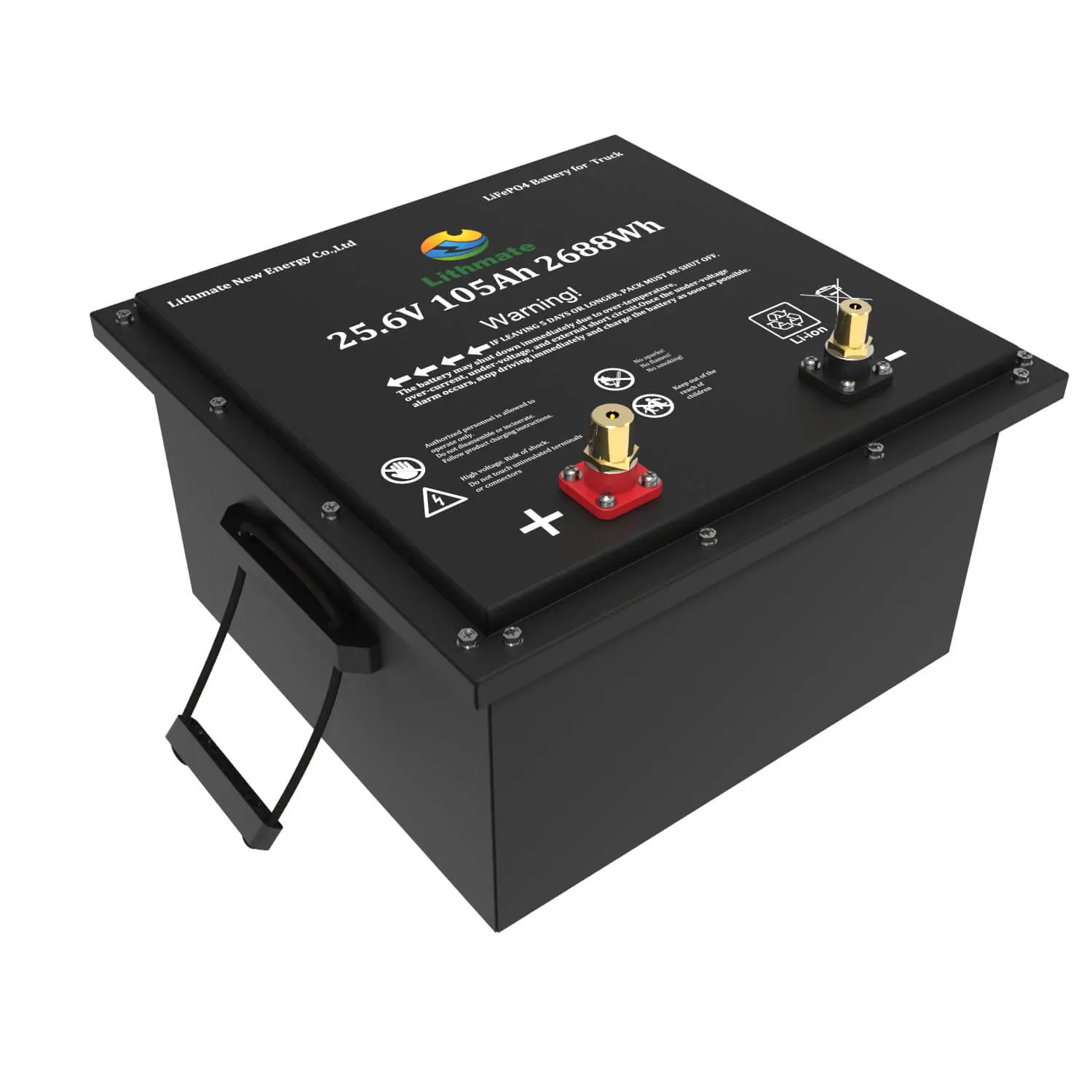

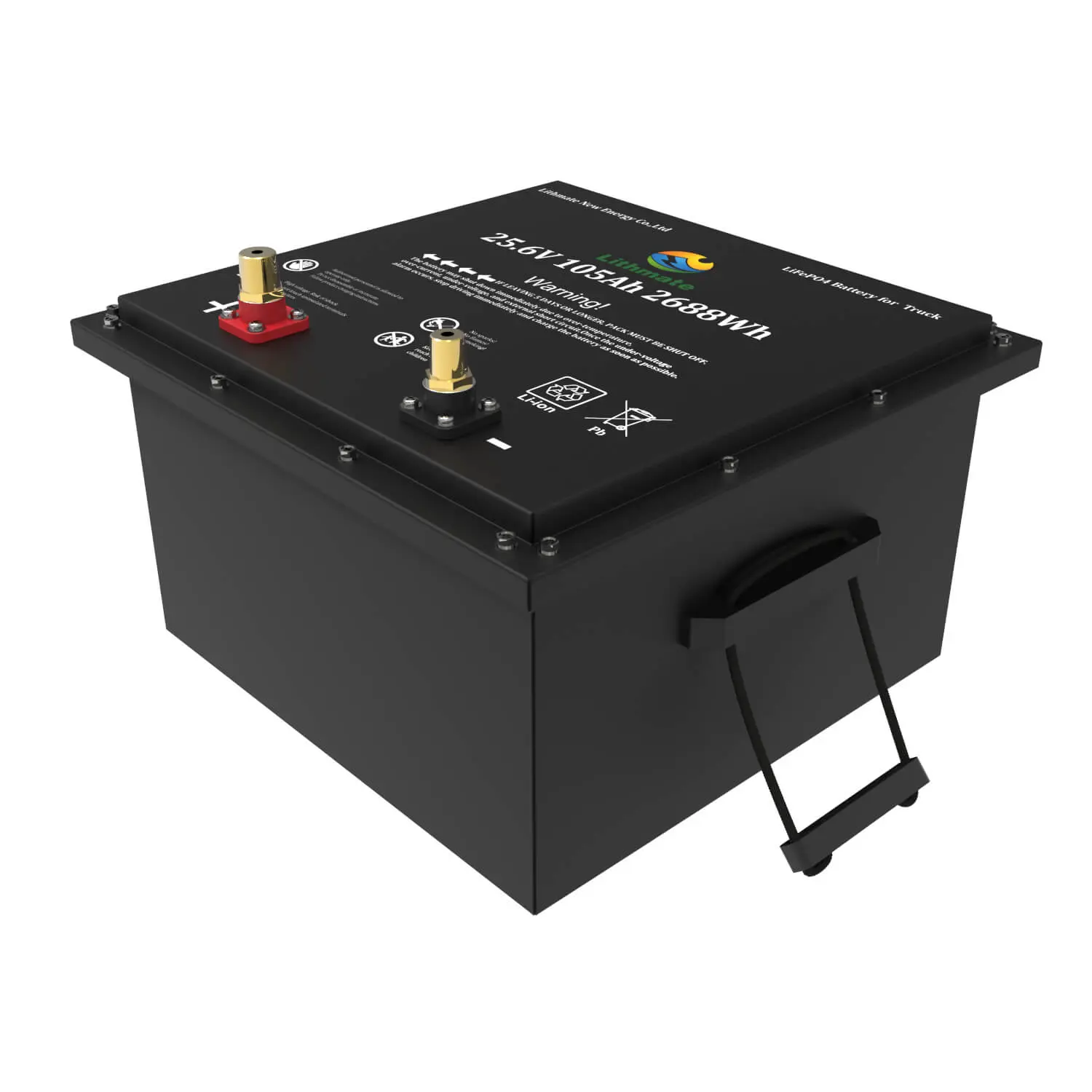

Lithmate starting lithium battery 24V 105Ah for truck cranking and parking air conditioner, it delivers long life, and superior reliability in all weather conditions. With high Cold Cranking Amps (CCA) and fast voltage response, it's the perfect upgrade from traditional lead-acid batteries for modern trucks and heavy equipment.

Send Inquiry

Product Description

Specifications

Category	Parameter	LMS24105
Nominal	Voltage	25.6V
Nominal	Capacity	105Ah
Physical	Dimension	350340237.4mm (13.78x13.39x9.35”)
Physical	Weight	30KG (66.1lb)
Electrical	Charge Voltage	29.2V
	Cut-off Voltage	20V
	Continuous Discharge Current	100A
	CCA	1200
Others	Working Temperature	-20-65℃
	Storage Temperature	0-45℃
	Cycle Life	>4000 Cycles

Frequently Asked Questions

What are the core electrical ratings of the LMS24105 battery?

The LMS24105 features a nominal voltage of 25.6V and a capacity of 105Ah. It supports a continuous discharge current of 100A and has a high CCA (Cold Cranking Amps) rating of 1200.

What is the expected lifespan of this battery?

The battery is designed for long-term durability, offering a cycle life of more than 4000 cycles under standard operating conditions.

What are the physical dimensions and weight for installation?

The unit measures 350*340*237.4mm (approximately 13.78x13.39x9.35 inches) and weighs 30KG (66.1lb), making it a robust solution for heavy-duty applications.

What is the recommended charging and cut-off voltage?

For optimal performance and safety, the charge voltage should be set to 29.2V, and the discharge cut-off voltage is 20V.

In what temperature range can this battery operate?

The LMS24105 operates efficiently in temperatures ranging from -20℃ to 65℃. For storage, it is recommended to keep the battery in an environment between 0℃ and 45℃.
