OEM 12V 50Ah Lithium LiFePO4 Battery Factories, Companies

1 / 3

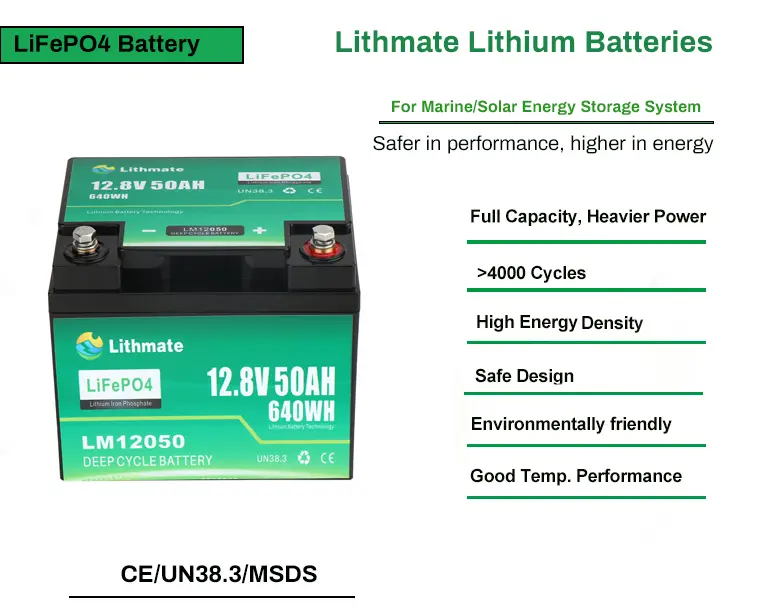

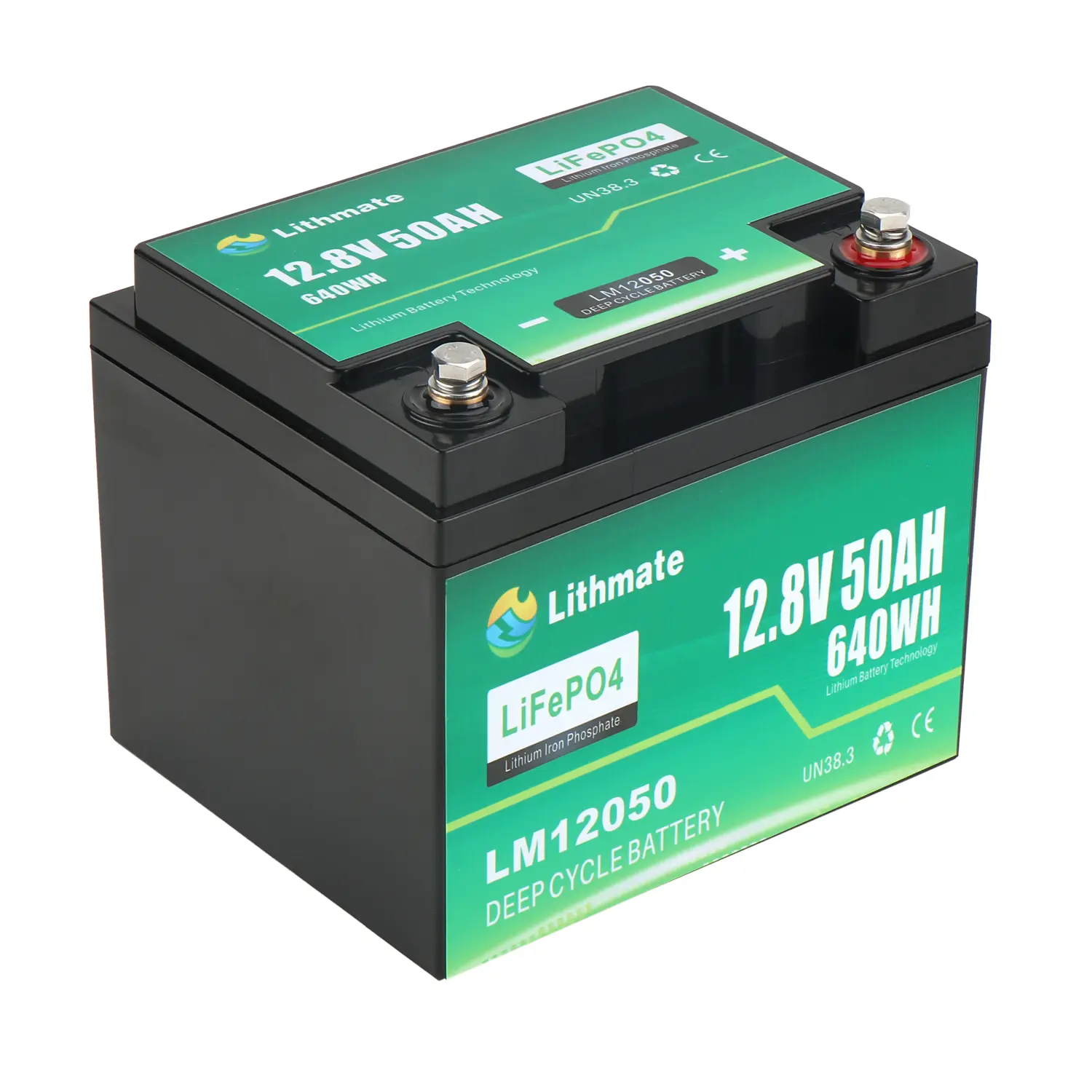

OEM 12V 50Ah Lithium LiFePO4 Battery Factories, Companies

12V 50Ah LiFePO4 battery is one of the most popular capacities for marine, RV, solar, and portable power applications. It offers high energy density, long cycle life, and excellent safety performance, making it ideal for both deep-cycle and daily-use systems.

Send Inquiry

Product Description

SPECIFICATION

Item	Parameter	LM12050
Nominal	Voltage	12.8V
Nominal	Capacity	50Ah
Physical	Dimension	198166186mm
Physical	Weight	6.8KG
Electrical	Charge Voltage	14.6V
	Cut-off Voltage	10V
	Charge Current	50A
	Continuous Discharge Current	50A
	Peak Discharge Current	100A
Others	Working Temperature	-20-65℃
	Storage Temperature	0-45℃
	Cycle Life	>4,000 Cycles

Frequently Asked Questions

Q: What is the nominal voltage and capacity of the LM12050 battery?

The LM12050 lithium ion battery features a nominal voltage of 12.8V and a nominal capacity of 50Ah, providing reliable and steady power output.

Q: What are the physical dimensions and weight of this 12V 50Ah battery?

This compact battery has a physical dimension of 198*166*186mm and weighs approximately 6.8KG, making it highly portable and easy to install in various configurations.

Q: What is the expected cycle life of the LM12050 lithium battery?

The LM12050 battery is designed for durability, offering an impressive cycle life of more than 4,000 cycles under proper usage conditions.

Q: What are the charging and discharging current parameters?

It supports a standard charge current of 50A and a continuous discharge current of 50A. Additionally, it can handle a peak discharge current of up to 100A for short durations.

Q: What is the recommended temperature range for operation and storage?

The working temperature for the battery ranges from -20℃ to 65℃. For storage, it is recommended to keep the battery in environments between 0℃ and 45℃.
