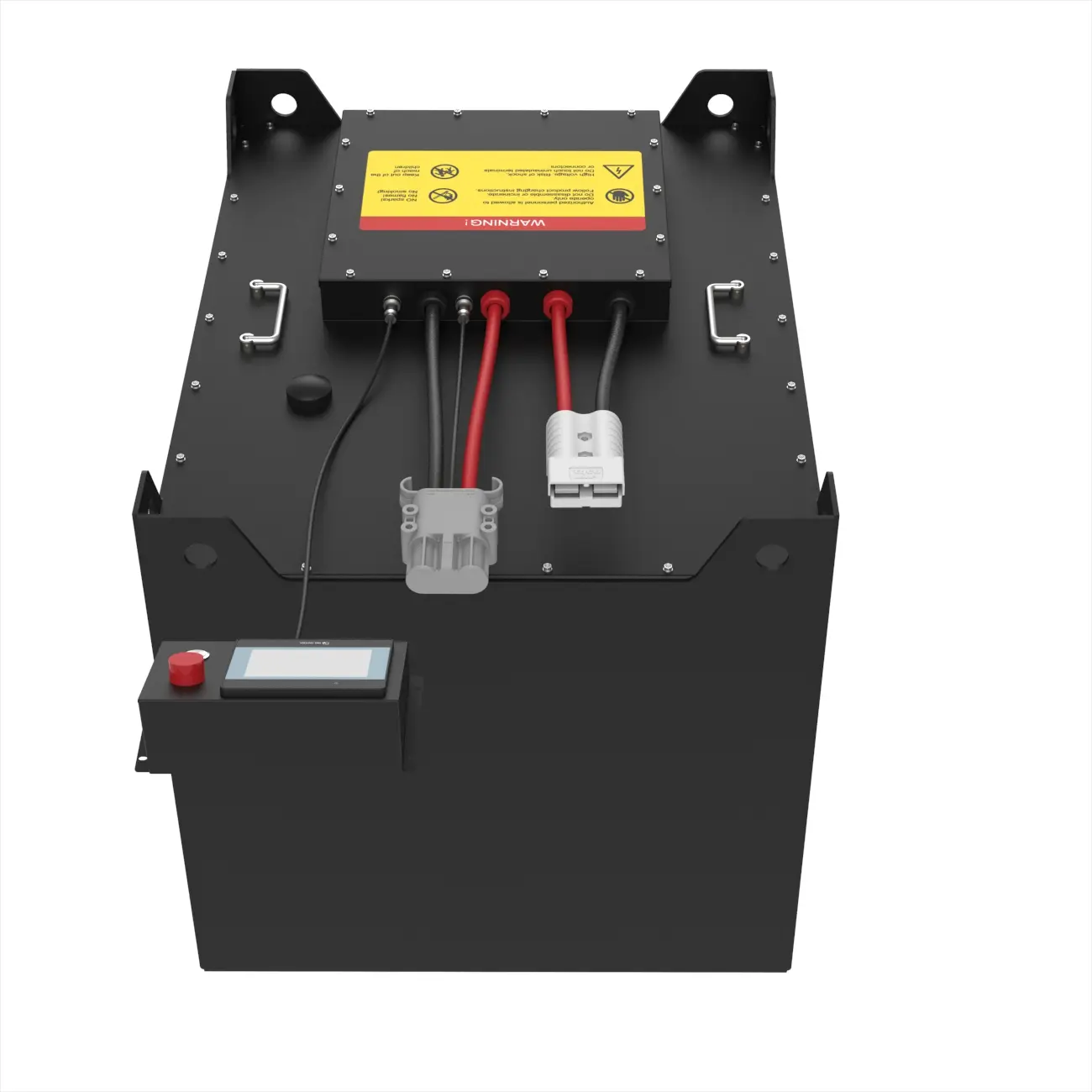

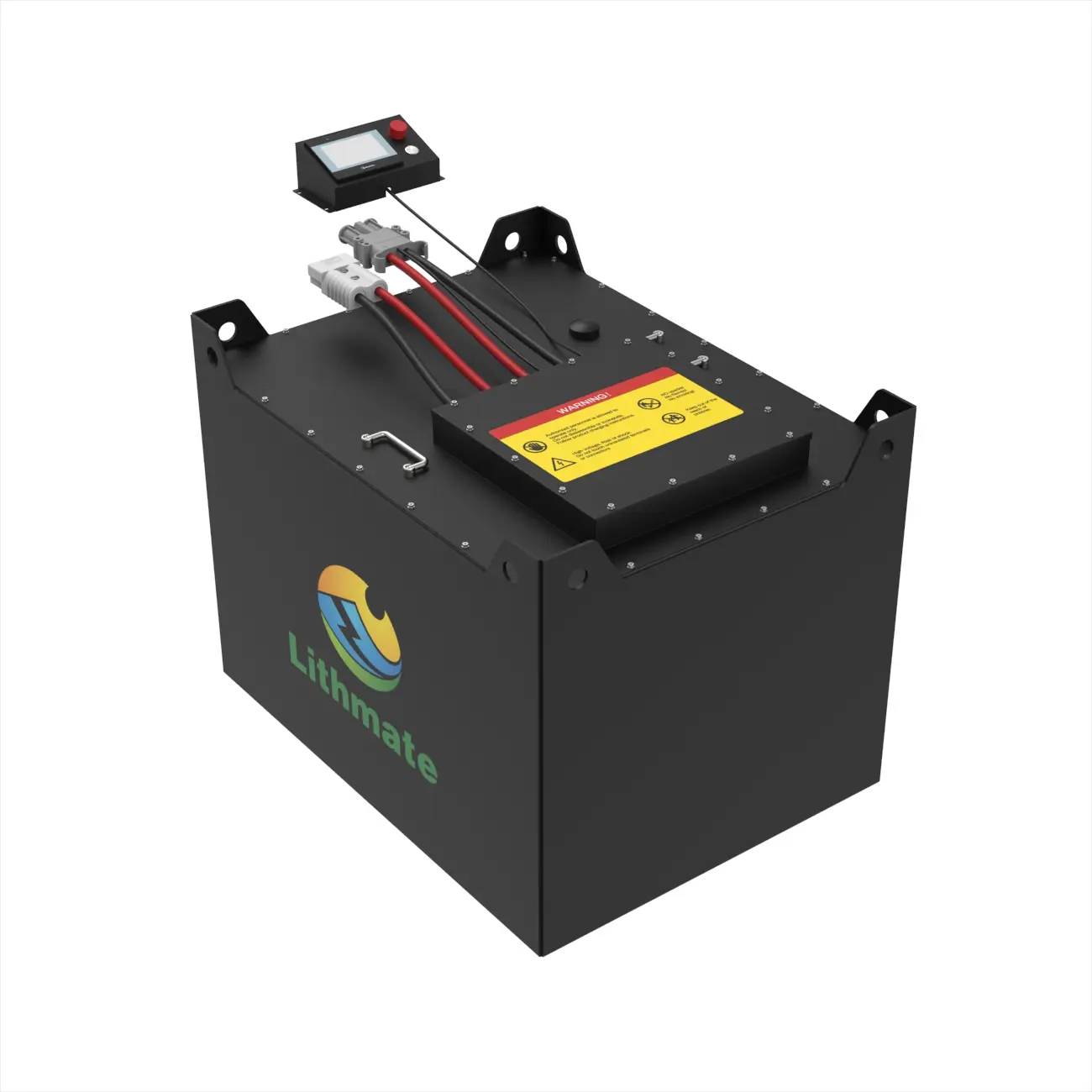

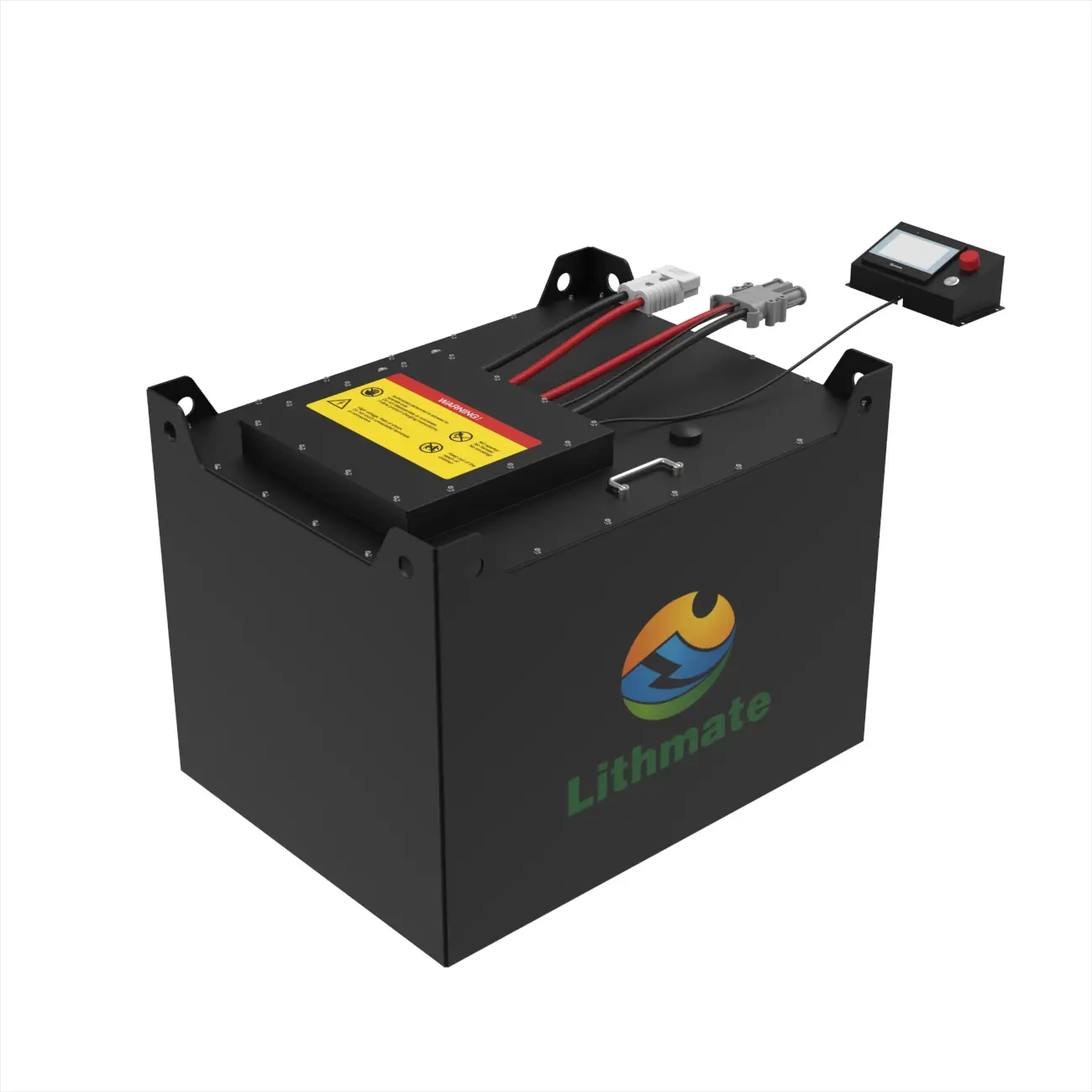

Custom Forklift 48V 560Ah LiFePO4 Lithium Battery-1 Factories, Company

Lithmate--Professional Forklift Lithium Battery Manufacturer.

The world's strongest forklift lithium power, engineered with long-lasting, top-grade components. Lithmate specializes in providing a wide range of forklift batteries, compatible with all types and brands. Our batteries offer voltages ranging from 24V to 80V and capacities from 100Ah to 690Ah. Designed to support fast charging, they ensure shorter charging time and longer operational run time, enhancing productivity and efficiency for material handling operations.

Send Inquiry

Product Description

Technical Specifications

Electrical Specifications
System Voltage	48V
Nominal Voltage	51.2V
Nominal Capacity	560Ah
Energy Storage	28.67Kwh
Cycle Life	>4,000 cycles

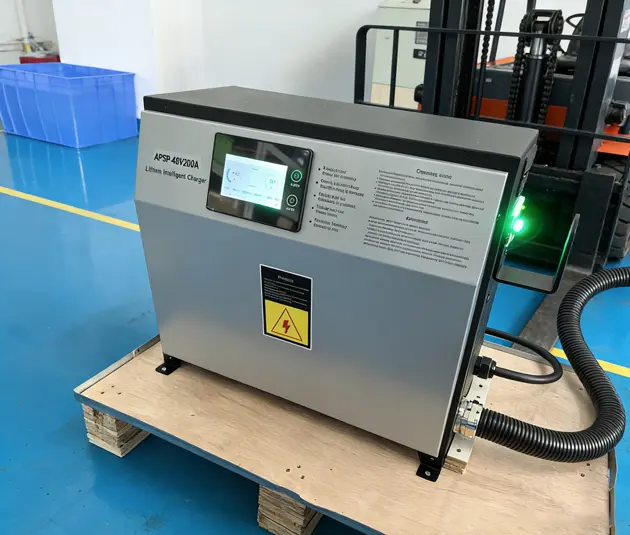

Standard Accessories	Buzzer, Display, Charger (Optional)
Smart Features	Remote diagnostics and upgradation (Optional)
Safety Features	Fireproof, optional fire extinguisher available
Mechanical Specifications
Dimensions (L x W x H)	830 x 630 x 627mm (32.68 x 24.8 x 24.69")
Unit Weight	255KG (562.2lb)
Case Material & IP Rating	Steel, IP67 Waterproof Rating
Charge & Discharge Specifications
Standard Charge Current	200A
Continuous Discharge Current	600A
Peak Discharge Current	1200A
Max. Charge Voltage	58.4V
Discharge Cut-off Voltage	40V
Battery Management System (BMS)	Integrated built-in BMS

High performance lithium battery specification

Frequently Asked Questions

Q1: What is the lifespan of this 48V 560Ah lithium battery?

This battery is designed for longevity, offering over 4,000 cycles at standard discharge depths, which significantly outperforms traditional lead-acid alternatives.

Q2: Is the battery safe for use in harsh industrial environments?

Yes, the battery features a robust steel case with an IP67 rating, making it resistant to dust and water. It also includes fireproof materials and an optional fire extinguisher for enhanced safety.

Q3: Does the system include a Battery Management System (BMS)?

Absolutely. Every unit comes with a sophisticated built-in BMS that monitors and protects against over-charging, deep discharge, and temperature fluctuations.

Q4: Can I monitor the battery health remotely?

We offer optional remote diagnostics and upgradation features that allow for real-time monitoring and software updates to ensure optimal performance.

Q5: What are the charging and discharging capabilities?

The battery supports a standard charge current of 200A and can handle a continuous discharge of 600A, with the ability to reach a peak discharge of 1200A for demanding tasks.

Q6: What are the dimensions and weight of the unit?

The battery measures 830 x 630 x 627mm (approximately 32.68 x 24.8 x 24.69 inches) and weighs 255KG (562.2 lbs).
