High-Quality Lithium 24V 230Ah LiFePO4 Forklift Battery Factories, Company

1 / 4

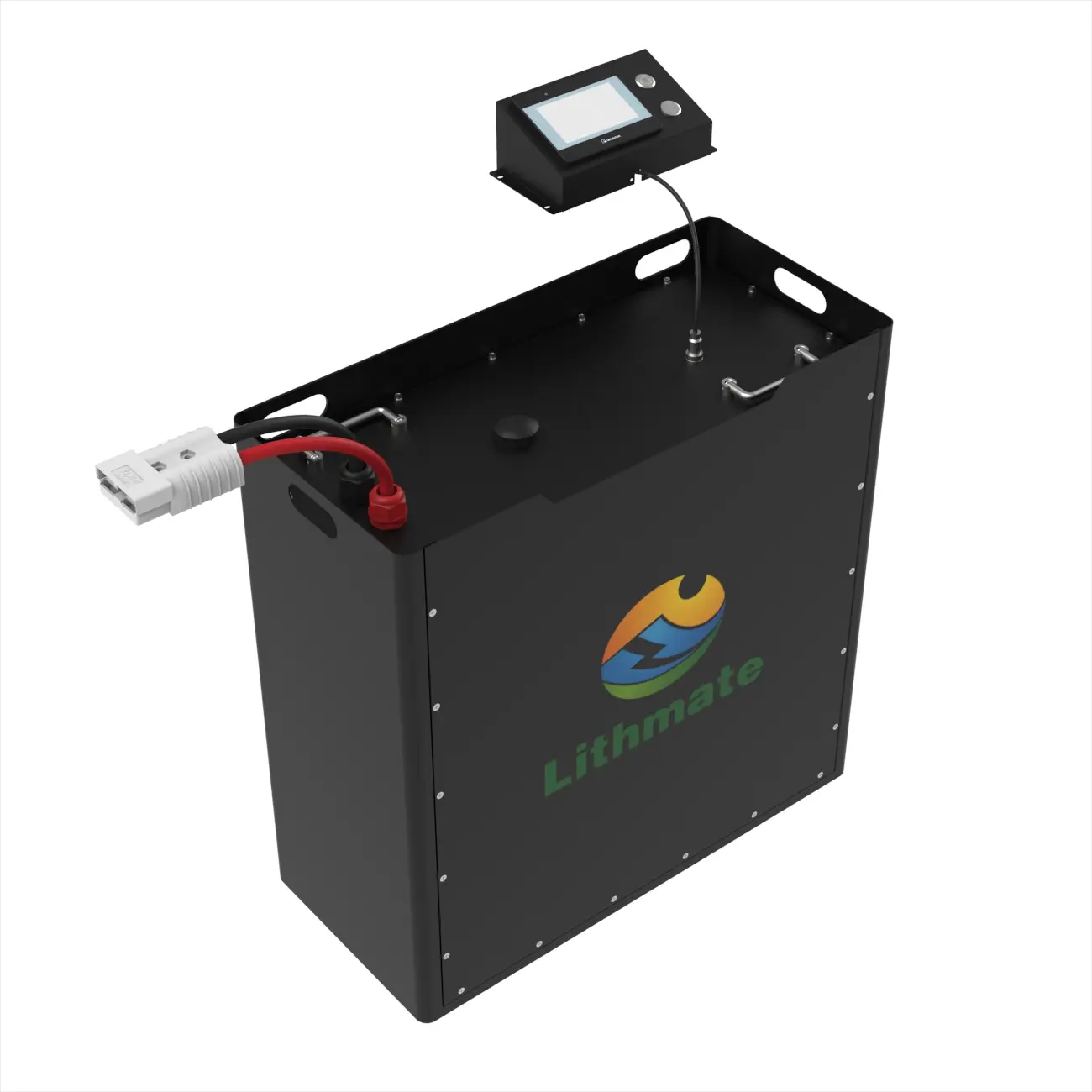

High-Quality Lithium 24V 230Ah LiFePO4 Forklift Battery Factories, Company

Lithmate LFP 24V 230Ah is a high-performance 24V lithium forklift battery built with EVE LiFePO4 cells, delivering long life, zero maintenance, and fast charging to significantly reduce downtime. Designed as the ideal battery solution for electric pallet trucks, it is widely used in Big Joe electric pallet jacks and proven to deliver stable, powerful performance in warehousing and material-handling operations. Over a five-year span, it can cut total battery costs by up to 70% offering exceptional value and reliability for industrial fleets.

Send Inquiry

Product Description

SPECIFICATION

Electrical Specifications
Nominal Voltage	24V (25.6V)
Nominal Capacity	230Ah
Energy	5.88Kwh
Cycle Life	>4,000 cycles
Remote Diagnostics	Optional
Heating System	Optional
Mechanical Specifications
Dimensions (L x W x H)	827216627mm (32.56x8.5x24.69")
Weight	49.2KG (108.47lb)
Case Material & IP	Steel, IP67
Charge & Discharge
Charge Current	200A
Continuous Discharge	230A
Peak Discharge	460A (30s)
Max. Charge Voltage	29.2V
Cut-off Voltage	20V
BMS	Yes, Built-in Management System

⚡

High Performance Assurance: Integrated with a smart BMS and high-grade steel casing, this battery is designed for demanding industrial environments.

Frequently Asked Questions

What is the expected lifespan of this 24V 230Ah battery?

This battery features a cycle life of over 4,000 cycles, offering significant longevity compared to traditional lead-acid alternatives in forklift applications.

Does the battery come with an integrated Management System?

Yes, it includes a built-in Battery Management System (BMS) that monitors and protects the battery against overcharge, over-discharge, and temperature fluctuations.

Can this battery withstand harsh industrial environments?

Absolutely. The battery is housed in a durable steel case with an IP67 rating, ensuring protection against dust and water ingress.

Is there a heating option for cold storage operations?

Yes, an internal heating system is available as an optional feature to ensure optimal charging performance in low-temperature environments.

What are the peak discharge capabilities?

The battery supports a continuous discharge current of 230A and can handle peak discharge currents up to 460A for 30 seconds.

Are remote diagnostics supported?

Remote diagnostics and firmware upgradation are available as optional features, allowing for easier maintenance and system optimization.
