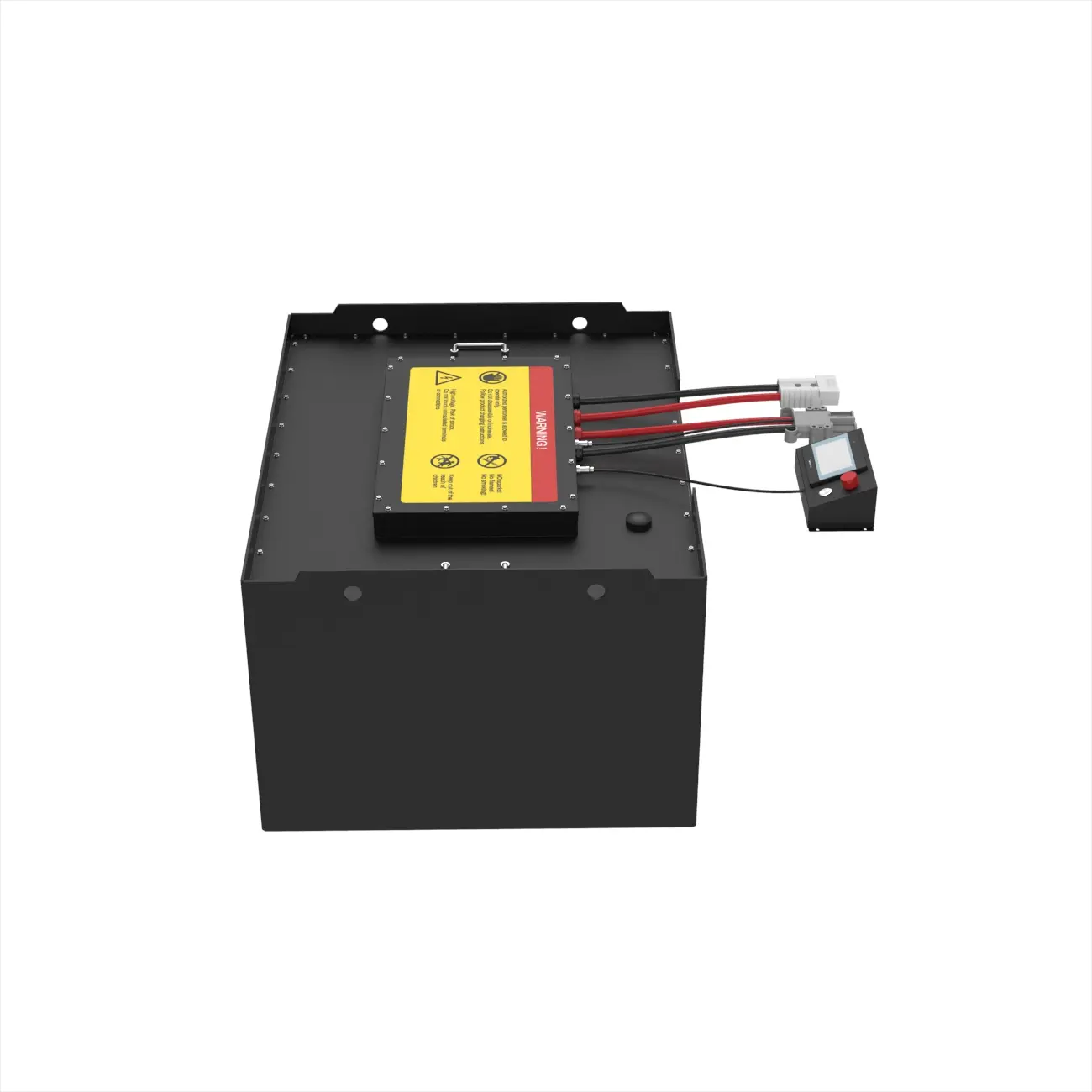

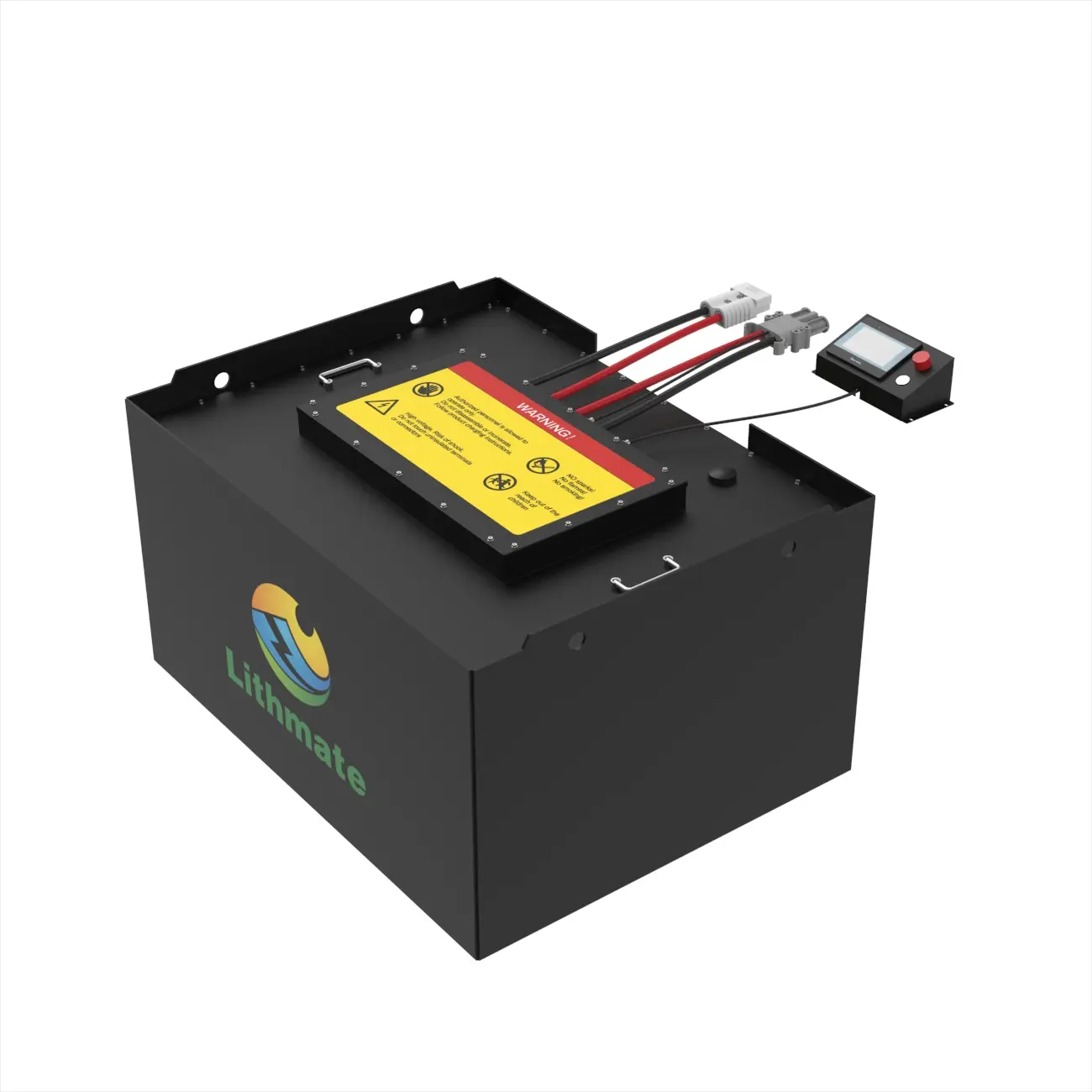

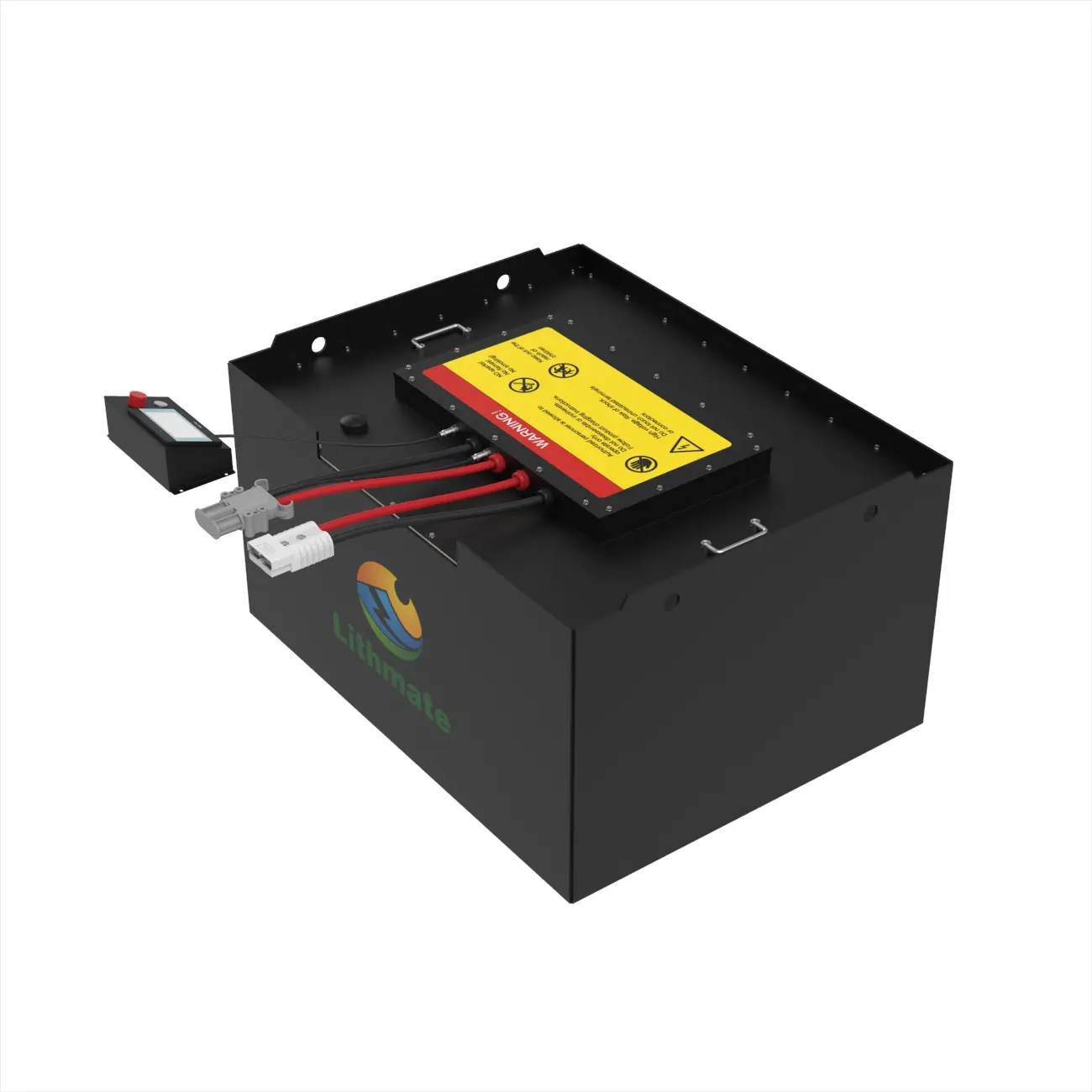

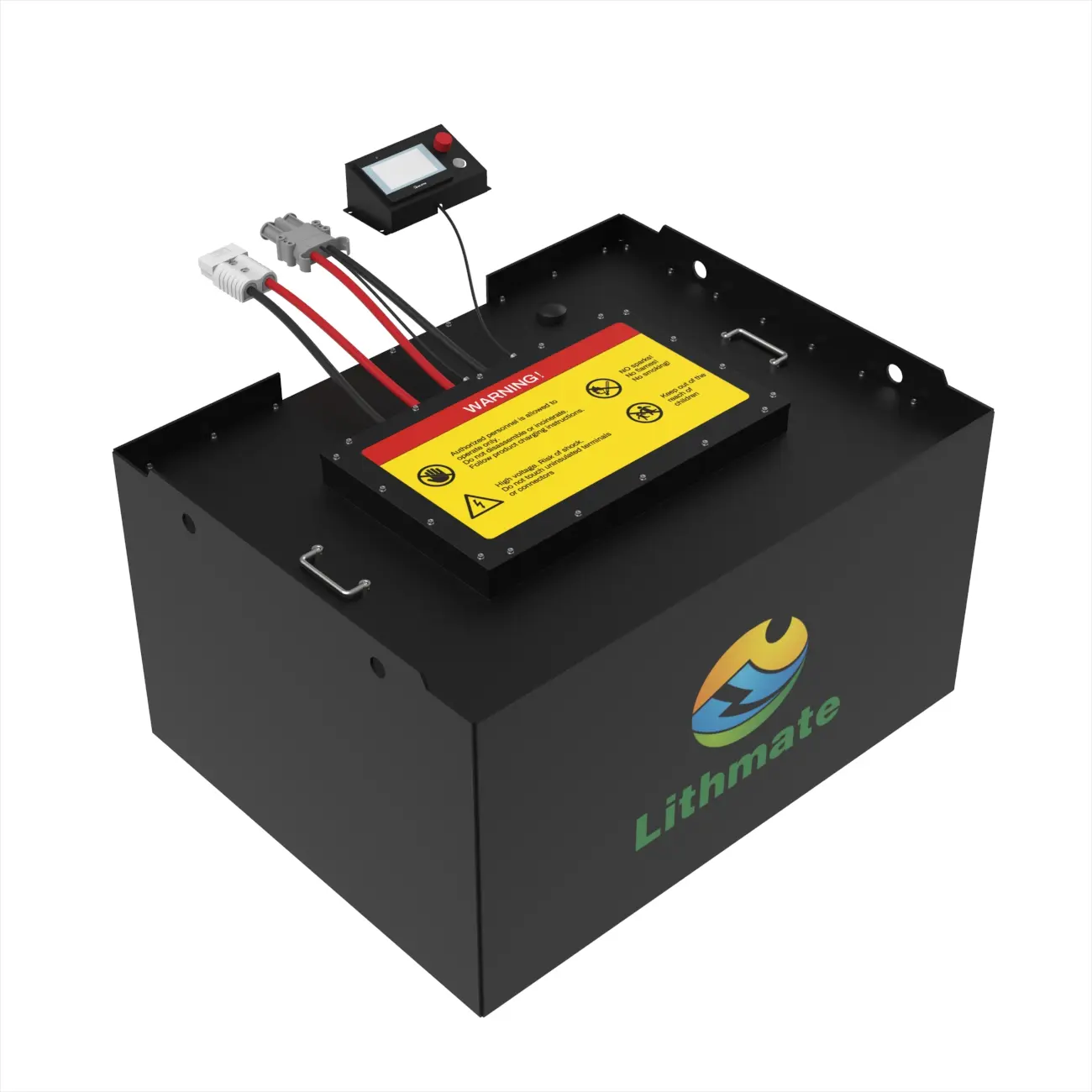

High-Quality Forklift Lithium Battery 36V 690Ah Supplier, Factories

1 / 4

High-Quality Forklift Lithium Battery 36V 690Ah Supplier, Factories

This 36V 690Ah high-capacity lithium-ion battery is primarily designed for powering large-capacity electric counterbalance forklifts and other heavy-duty electric material handling equipment. It is ideally suited for applications requiring extended, continuous operation on a single charge, especially in high-throughput environments. It delivers longer cycles, safer performance, free maintenance.

Send Inquiry

Product Description

SPECIFICATION

Electrical Specifications	36V
Nominal voltage	38.4V
Nominal capacity	690Ah
Energy	26.49Kwh
Cycle life	>4,000 cycles
Function
Remote diagnostics and upgradation	Optional
Heating system	Optional
Mechanical Specifications
Dimensions (L x W x H)	968x516x780mm(30.11x20.32x30.71")
Weight	221.4KG(488lb)
Case material & IP rating	Steel, IP67
Charge & Discharge Specifications
Charge current	200A
Continuous discharge current	600A
Peak discharge current	1200A
Max. charge voltage	43.8V
Cut-off voltage	30V
Battery management system(BMS)	Yes, built-in BMS

Product Gallery

Frequently Asked Questions

What are the primary electrical specifications of this forklift lithium battery?

This lithium battery is designed for 36V systems with a nominal voltage of 38.4V, a nominal capacity of 690Ah, and an energy output of 26.49Kwh.

What is the expected cycle life of this battery?

The battery offers an exceptional cycle life of more than 4,000 cycles, providing long-lasting, high-performance energy storage.

Does this battery include a Battery Management System (BMS)?

Yes, it features a built-in Battery Management System (BMS) to ensure optimal safety, cell balancing, and protection during operations.

What are the charge and discharge current capabilities?

The battery supports a charge current of 200A, a continuous discharge current of 600A, and can handle a peak discharge current of up to 1200A.

What are the dimensions, weight, and protective rating of the casing?

The unit measures 968x516x780mm (30.11x20.32x30.71 inches), weighs 221.4KG (488 lbs), and is protected by a heavy-duty steel case rated at IP67 for water and dust resistance.
