Lithmate
1 / 3
| Item | Parameter | LM12060 |
|---|---|---|
| Nominal | Voltage | 12.8V |
| Capacity | 60Ah | |
| Physical | Dimension | 229*138*208mm (9.02x5.43x8.19") |
| Weight | 7.9KG (17.4lb) | |
| Electrical | Charge Voltage | 14.6V |
| Cut-off Voltage | 10V | |
| Charge Current | 60A | |
| Continuous Discharge Current | 100A | |
| Peak Discharge Current | 200A | |
| Others | Working Temperature | -20-65℃ |
| Storage Temperature | 0-45℃ | |
| Cycle Life | >4,000 Cycles |

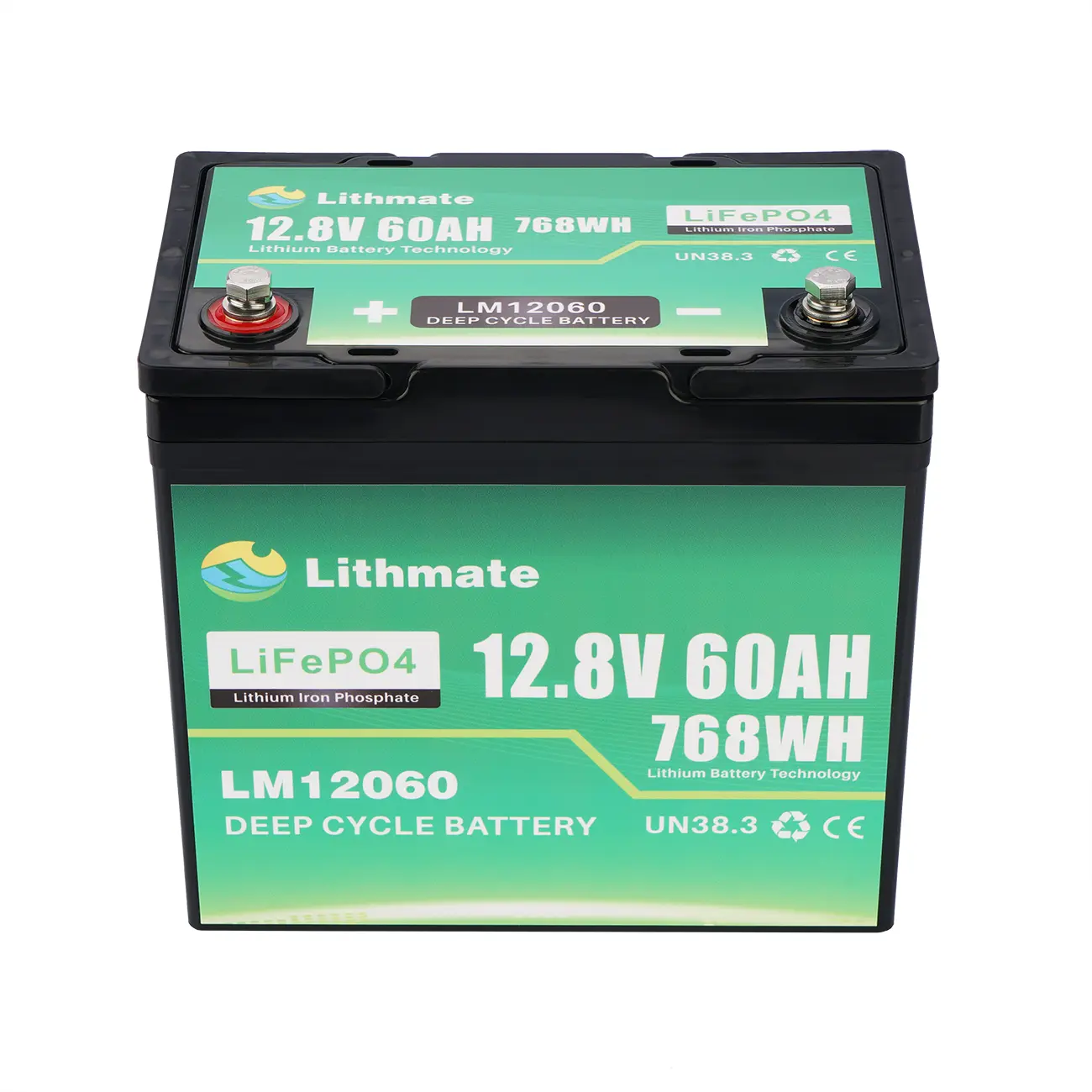

The LM12060 features a nominal voltage of 12.8V and a nominal capacity of 60Ah.
The battery dimensions are 229*138*208mm (9.02x5.43x8.19 inches), and it weighs approximately 7.9KG (17.4 lbs).
This high-performance battery provides an exceptional lifespan, delivering more than 4,000 charge-discharge cycles.
The battery supports a charge current of 60A and a continuous discharge current of 100A, with a peak discharge current limit of 200A.
The recommended working temperature is -20°C to 65°C, and the safe storage temperature ranges from 0°C to 45°C.
