Lithmate
1 / 5
| Electrical Specifications | |
| Nominal Voltage | 25.6V (24V system) |
| Nominal Capacity | 206Ah |
| Energy | 5.27Kwh |
| Cycle Life | >4,000 cycles |
| Functions | |
| Remote Diagnostics & Upgradation | Optional |
| Heating System | Optional |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 550*210*380mm |
| Weight | 50KG |
| Case Material & IP Rating | Steel, IP67 |
| Charge & Discharge Specifications | |
| Charge Current | 100A |
| Continuous Discharge Current | 200A |
| Peak Discharge Current | 400A |
| Max. Charge Voltage | 29.2V |
| Cut-off Voltage | 20V |
| Battery Management System (BMS) | Yes, built-in BMS |

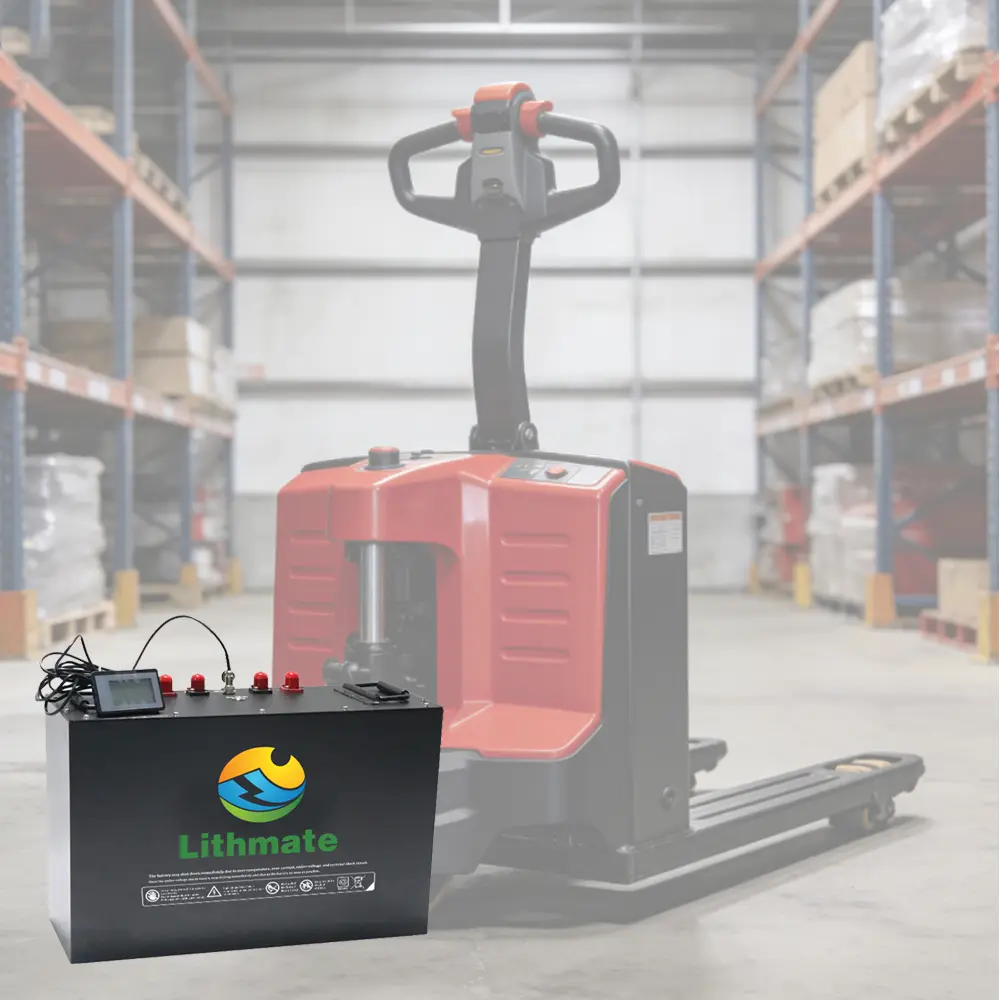

This high-performance forklift battery provides a cycle life of over 4,000 cycles, ensuring excellent durability and a long service life for industrial applications.
Yes, the battery comes equipped with a built-in Battery Management System (BMS) that monitors operations and protects against overcharging, deep discharging, and temperature anomalies.

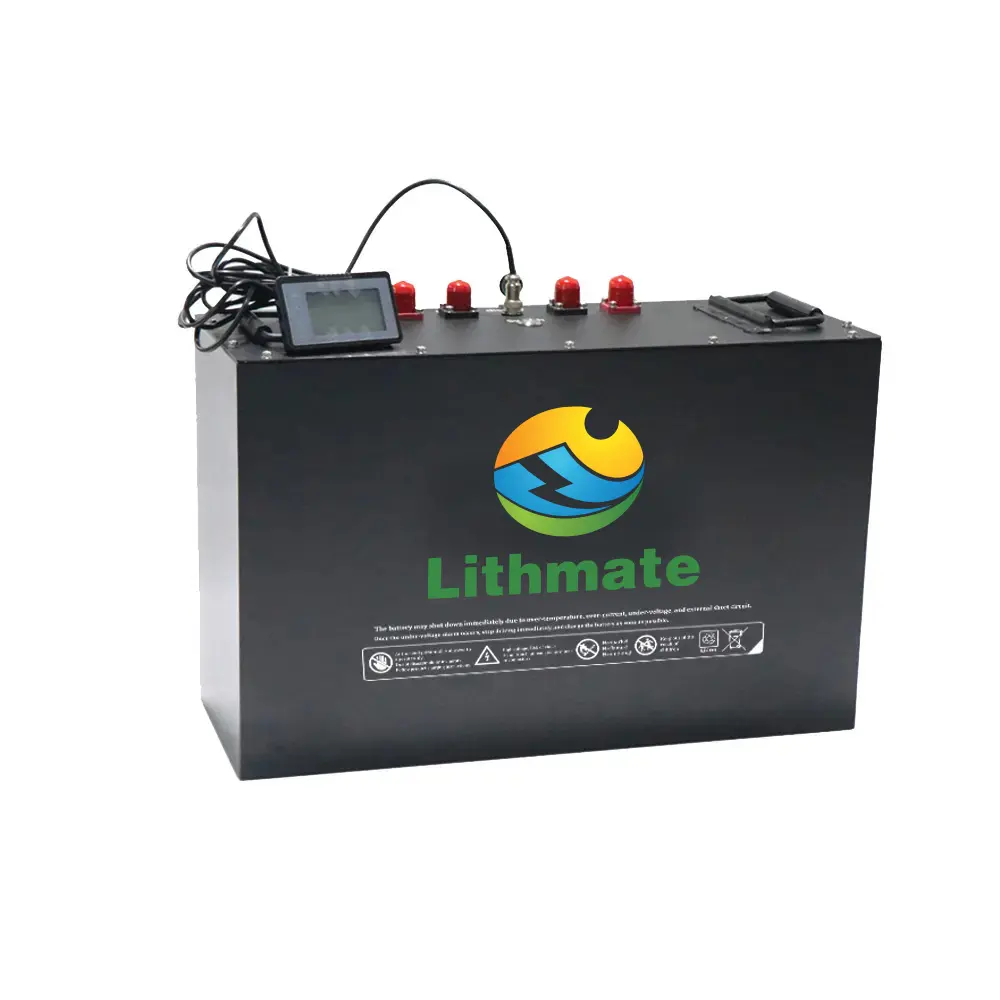

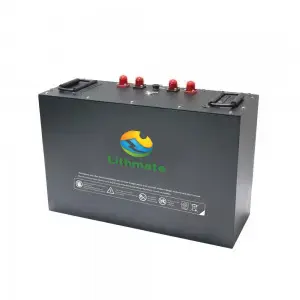

The battery is enclosed in a heavy-duty steel case designed for industrial environments, featuring an IP67 rating for superior dust and water resistance.
Yes. Both remote diagnostics/upgradability features and a built-in heating system are available as optional configurations to suit specific operational needs.
The physical dimensions of the battery are 550*210*380mm (L x W x H), and it weighs approximately 50KG.
The battery supports a continuous discharge current of 200A and is capable of handling a peak discharge current of 400A.
