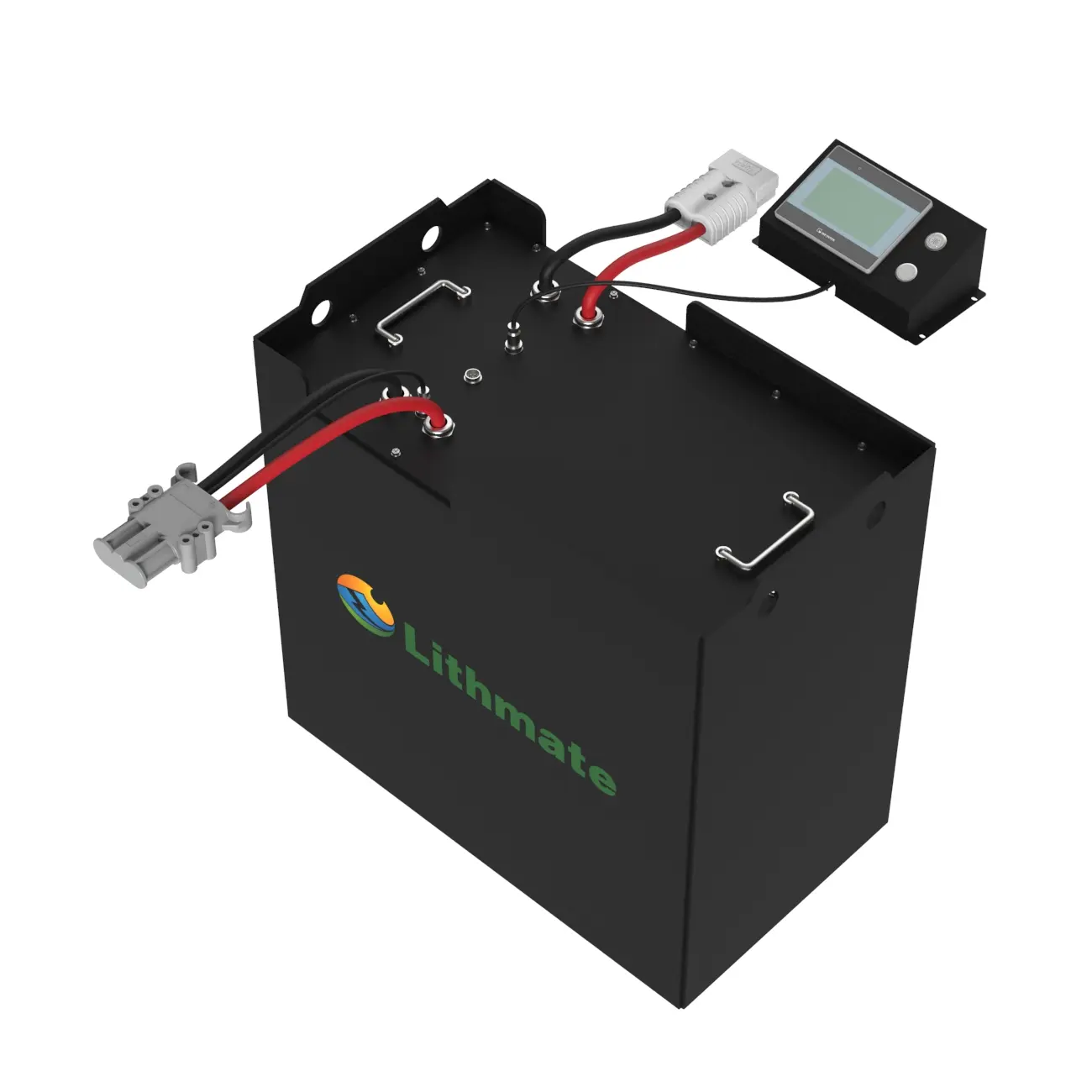

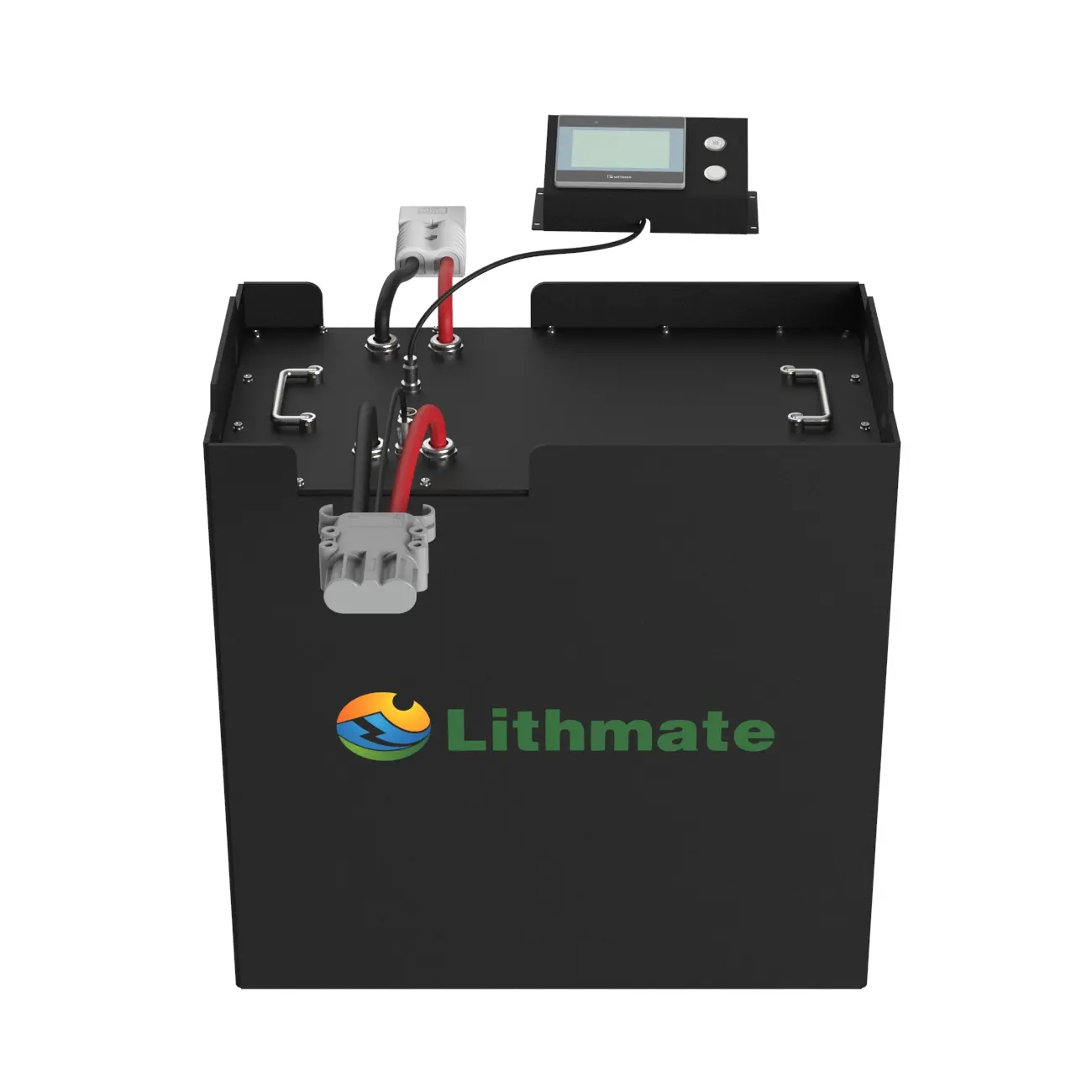

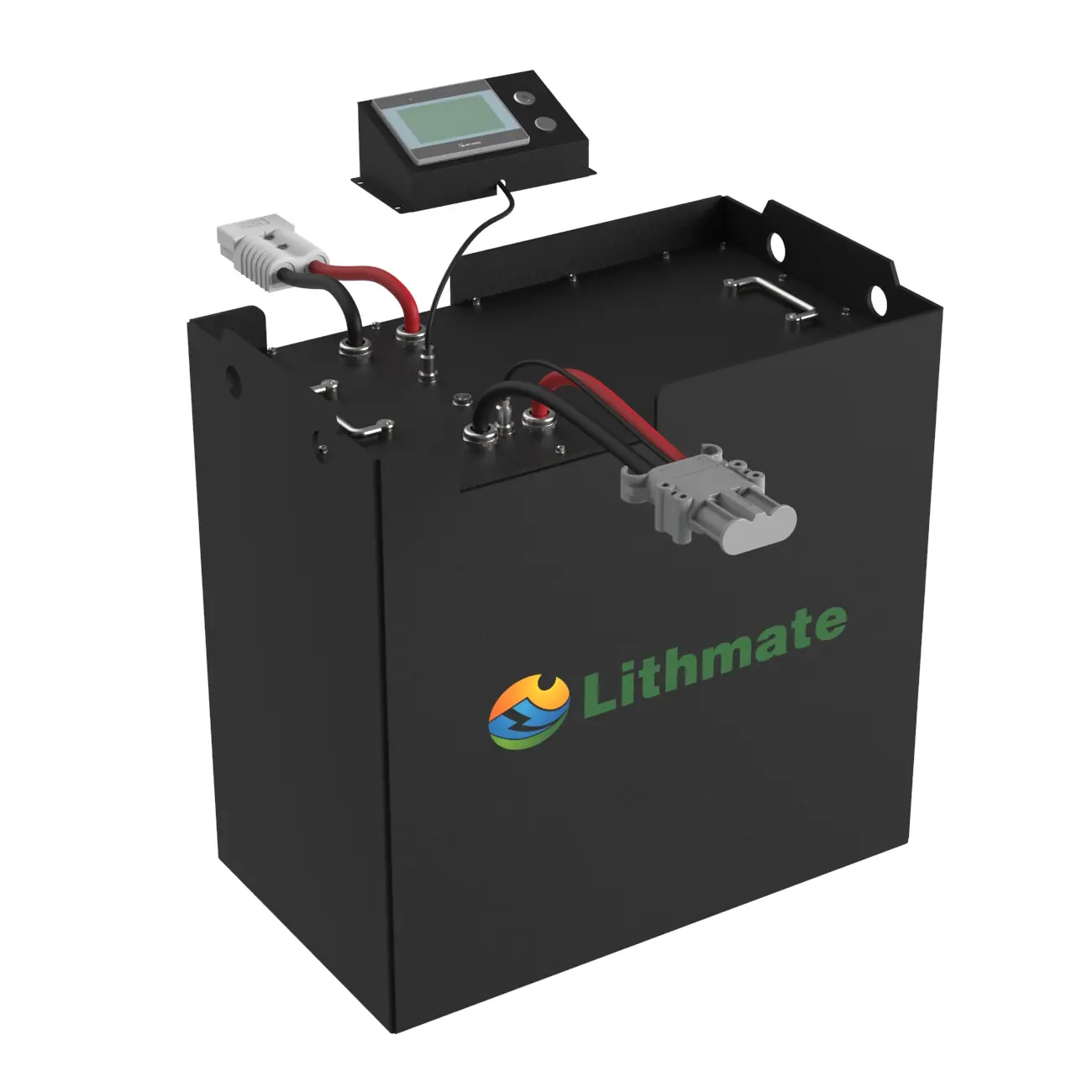

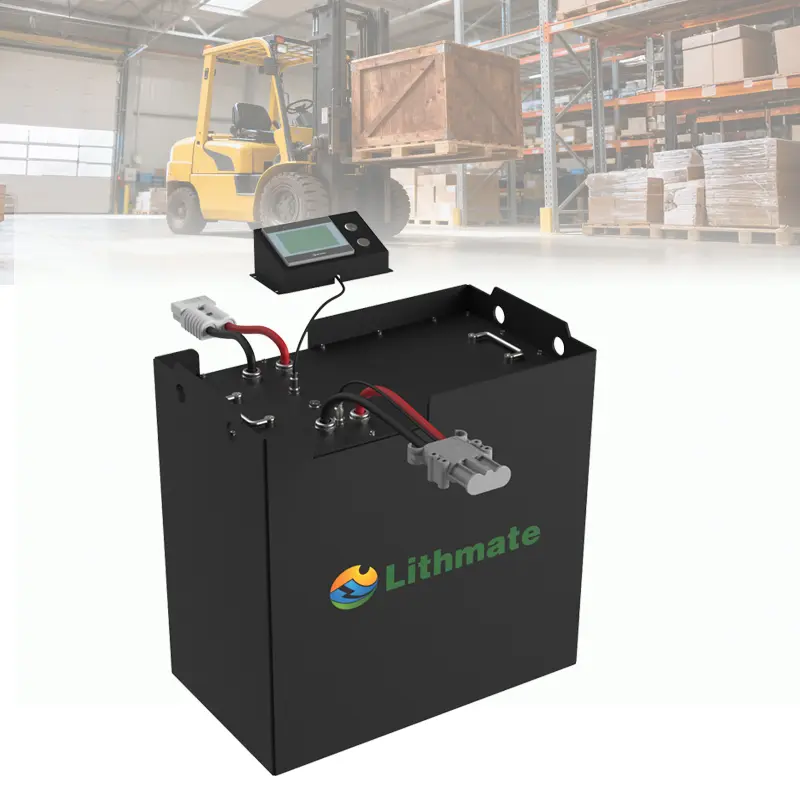

OEM 36V Volt Lithium Ion Forklift Battery 410Ah Supplier, Suppliers

1 / 4

OEM 36V Volt Lithium Ion Forklift Battery 410Ah Supplier, Suppliers

The 36V battery system is typically designed for electric counterbalance forklifts and a range of electric warehouse trucks, including reach trucks and order pickers, which are essential for emission-free indoor and narrow-aisle operations.

Send Inquiry

Product Description

TECHNICAL SPECIFICATIONS

Electrical Specifications
Nominal voltage	38.4V (36V System)
Nominal capacity	412Ah
Energy	15.8Kwh
Cycle life	>4,000 cycles
Remote diagnostics and upgradation	Optional
Heating system	Optional
Mechanical Specifications
Dimensions (L x W x H)	968 x 516 x 780mm (30.11 x 20.32 x 30.71")
Weight	151.2KG (333.3lb)
Case material & IP rating	Steel, IP67
Charge & Discharge Specifications
Charge current	200A
Continuous discharge current	350A
Peak discharge current	500A (30s)
Max. charge voltage	43.8V
Cut-off voltage	30V
Battery management system (BMS)	Yes, built-in BMS

Industrial forklift battery pack details

Frequently Asked Questions

1. What is the expected lifespan of this 36V 412Ah battery?

The battery is designed for long-term industrial use, offering a cycle life of more than 4,000 cycles, significantly outperforming traditional lead-acid alternatives.

2. Is the battery protected against water and dust?

Yes, the battery features a robust steel case with an IP67 rating, providing excellent protection against dust ingress and water immersion.

3. Does this battery come with a monitoring system?

Absolutely. It includes a built-in Battery Management System (BMS) to ensure safety and optimal performance. Remote diagnostics and upgradation are also available as optional features.

4. Can this battery handle high-power demands?

Yes, it supports a continuous discharge current of 350A and can handle peak discharge currents of up to 500A for 30 seconds.

5. Can the battery operate in cold environments?

While the standard configuration is highly efficient, an optional heating system can be integrated for optimized performance in cold storage or low-temperature environments.

6. What are the physical dimensions for installation?

The unit measures 968 x 516 x 780mm (approximately 30.11 x 20.32 x 30.71 inches) and weighs 151.2KG, designed for heavy-duty industrial equipment compatibility.
