OEM Lithium LiFePO4 Battery 12V 18Ah for Golf Trolley Supplier, Factory

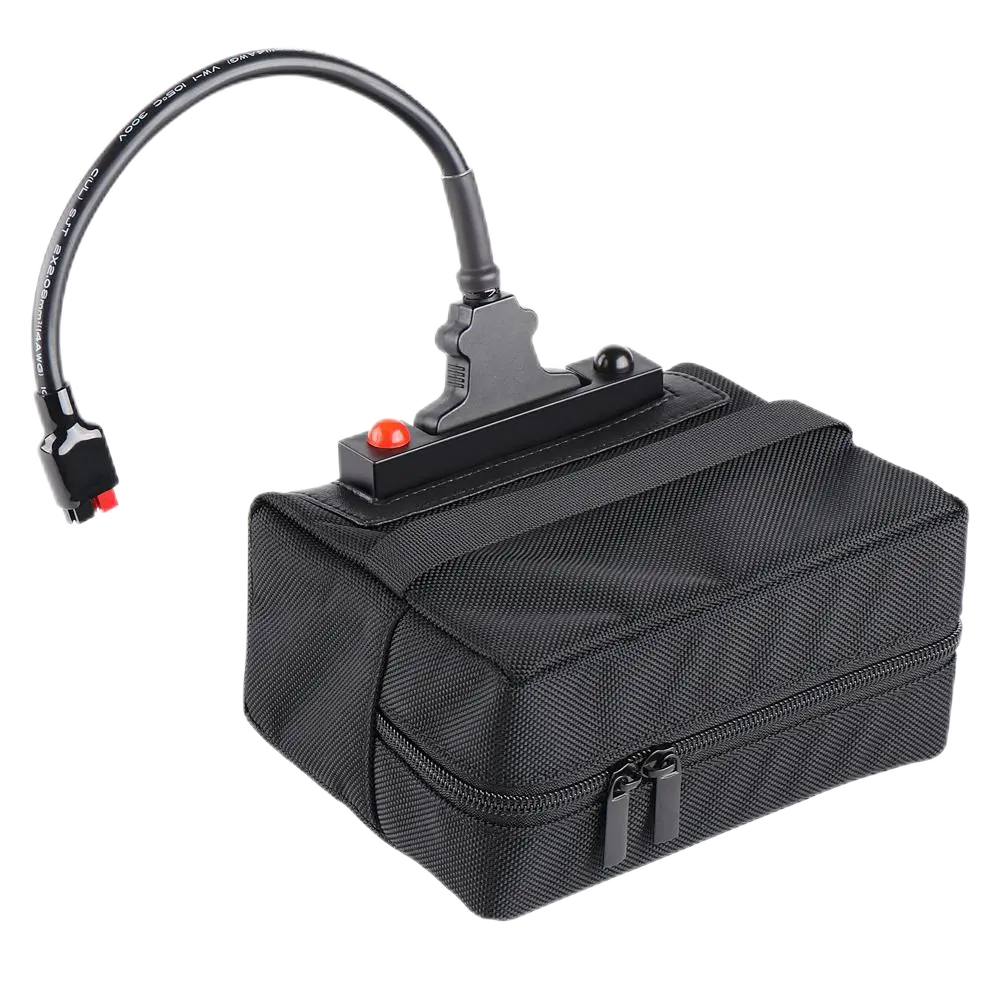

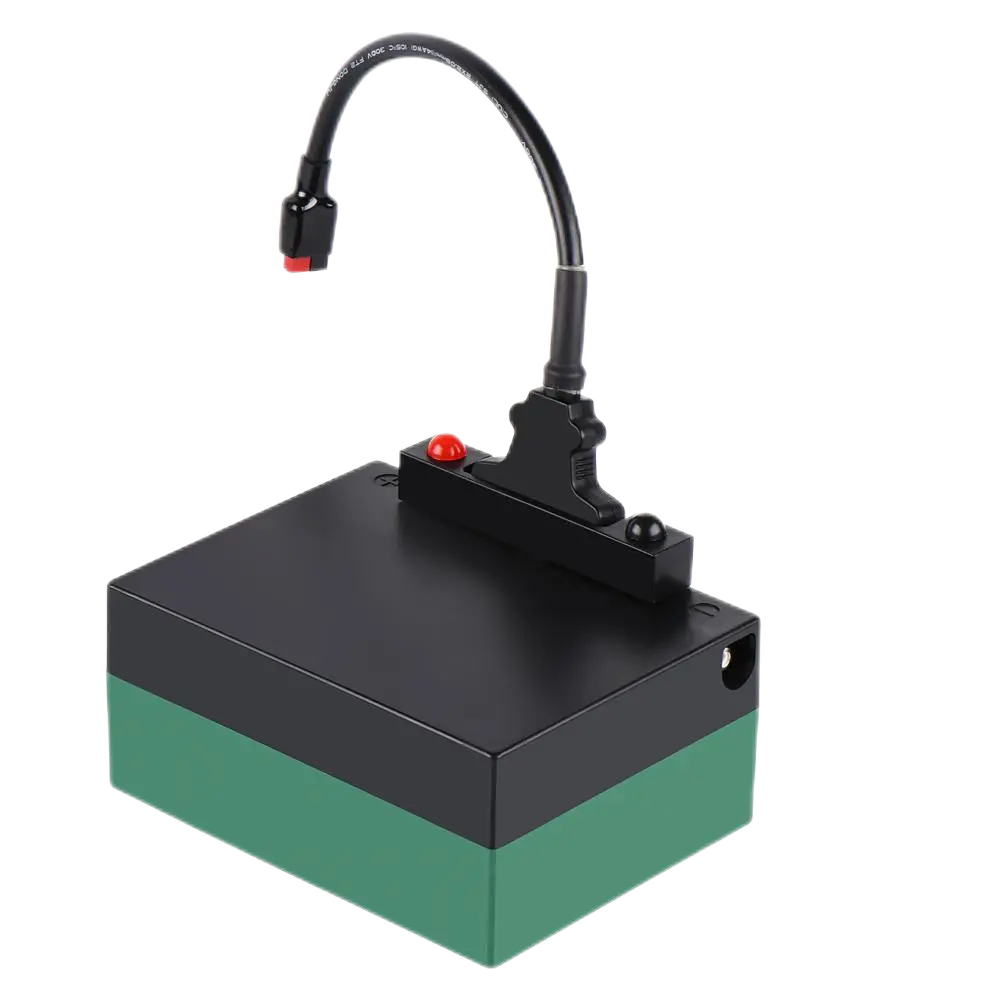

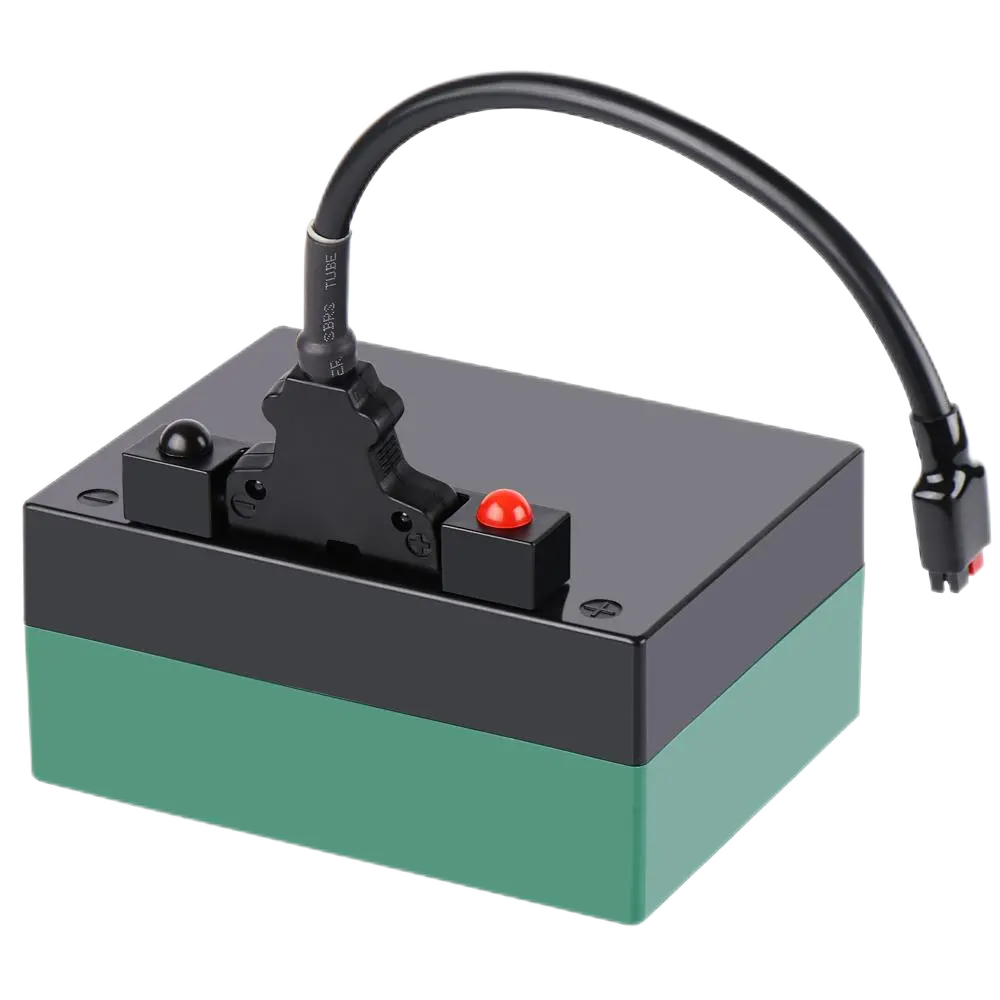

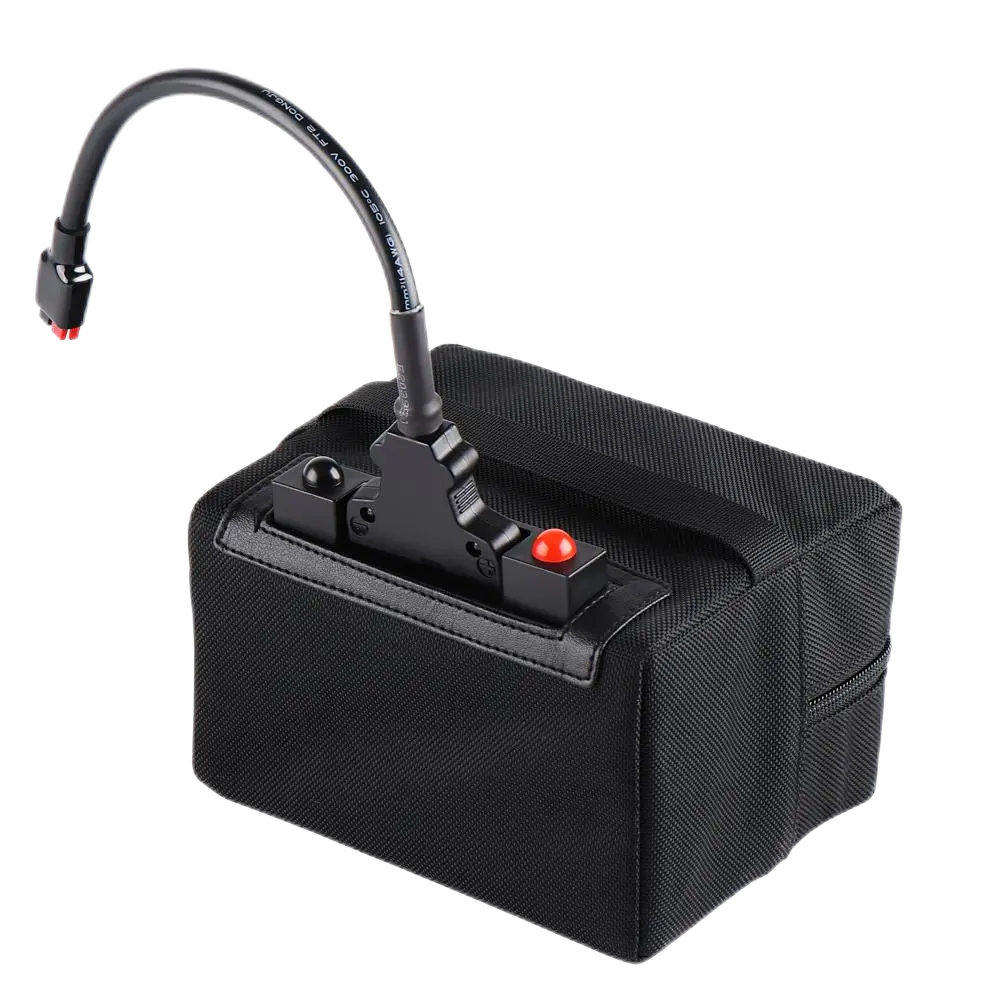

The Lithmate 12V 18Ah LiFePO4 battery for golf trolleys offers reliable, long-lasting power with lightweight design and advanced safety features. It provides consistent performance and a long lifespan, making it the ideal choice for a smooth and efficient golfing experience.

Send Inquiry

Product Description

SPECIFICATION

Electrical Specifications
Nominal voltage	12.8V	12.8V
Nominal capacity	18Ah	24Ah
Energy	230.4wh	307.2wh
Cycle life	>4000 cycles
Mechanical Specifications
Dimensions (L x W x H)	16812875mm 6.61x5.04x2.95"	168128101mm 6.61x5.04x3.98"
Weight	2.6KG (5.7lb)	3KG (6.6lb)
Terminal type	0
Case material & IP rating	ABS, IP67
Charge & Discharge Specifications
Charge current	4A	4A
Continuous discharge current	18A	25A
Peak discharge current	36A	50A
Max. charge voltage	14.6V	14.6V
Cut-off voltage	10V	10V
Battery management system(BMS)	Yes, built-in BMS protection

🛡️

IP67 Waterproof Rating
High-quality ABS case for extreme outdoor durability.

Frequently Asked Questions

What is the expected lifespan of this battery?

The battery offers an exceptional cycle life of over 4,000 cycles, ensuring long-term reliability for your equipment.

Is the battery protected against overcharging or short circuits?

Yes, it features a built-in Battery Management System (BMS) that provides comprehensive protection against overcharging, over-discharging, and short circuits.

Can this battery be used in wet or rainy environments?

Absolutely. With an IP67 rating and a durable ABS case, the battery is designed to be water and dust resistant, making it ideal for outdoor use.

What are the weight and size differences between the 18Ah and 24Ah models?

The 18Ah model weighs 2.6KG (5.7lb) with a height of 75mm, while the 24Ah model weighs 3KG (6.6lb) and has a height of 101mm. Both share the same length and width.

What is the peak discharge performance?

The 18Ah model supports a peak discharge of 36A, while the 24Ah model supports a peak discharge of up to 50A for high-demand power needs.

What is the nominal voltage of these battery units?

Both capacity versions operate at a stable nominal voltage of 12.8V.
