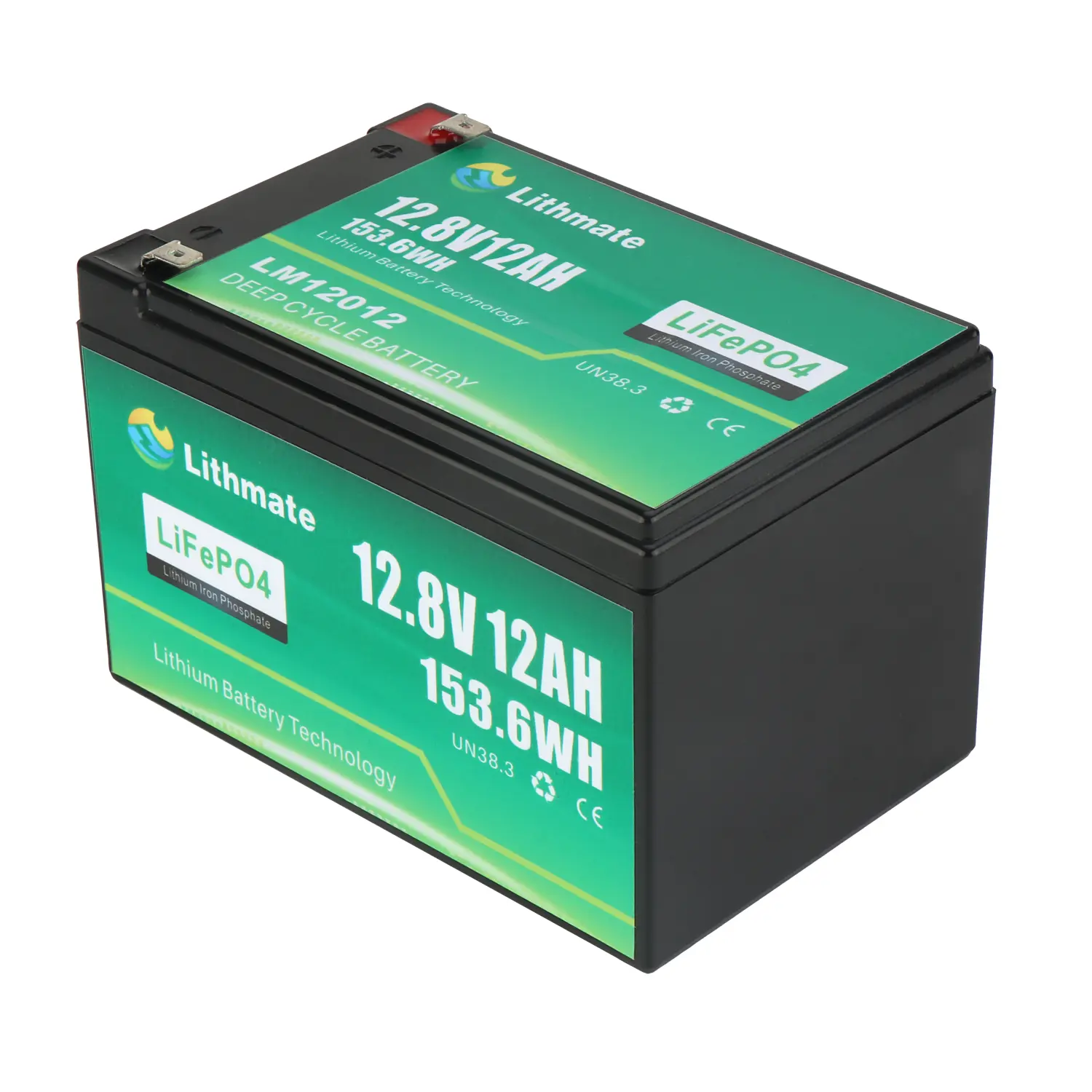

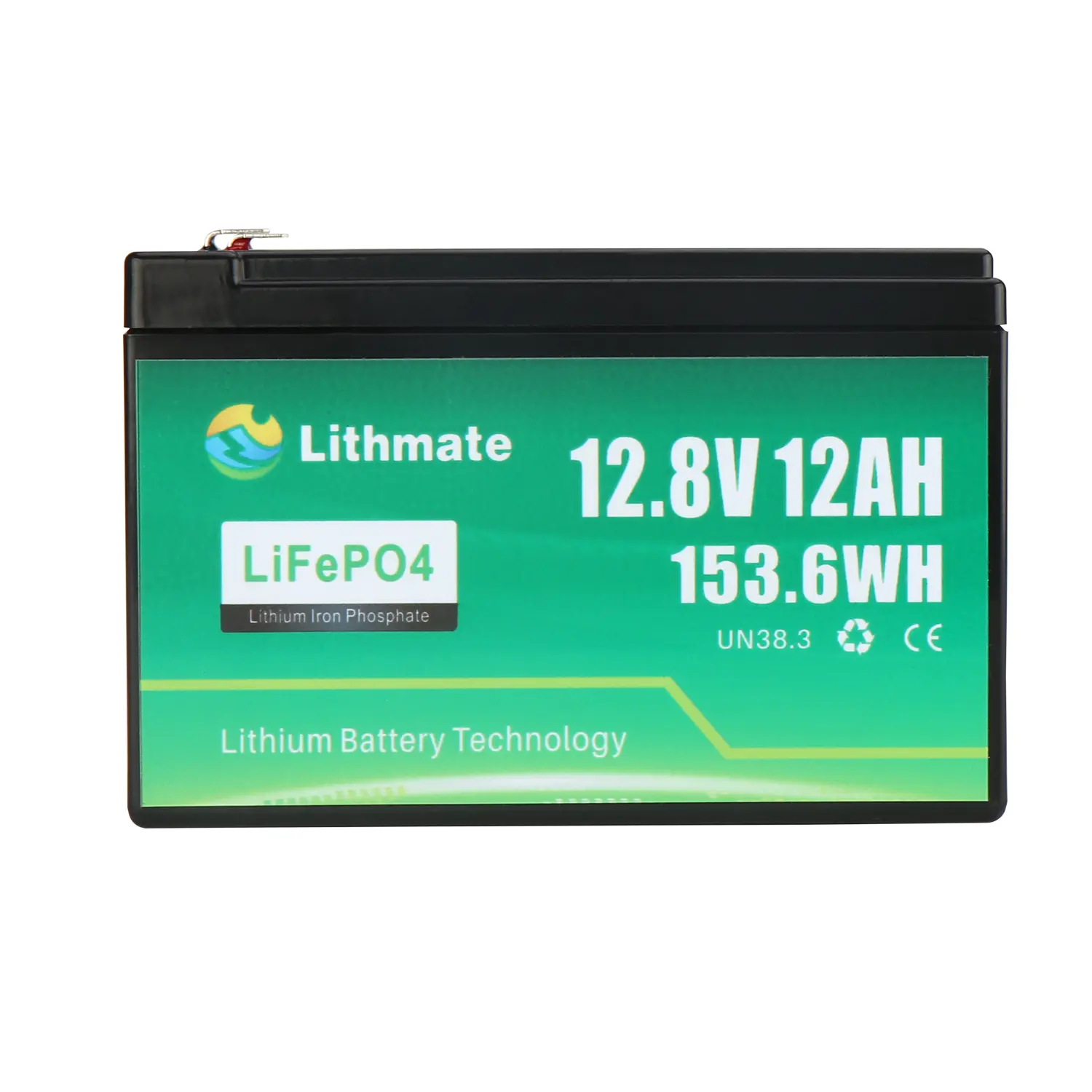

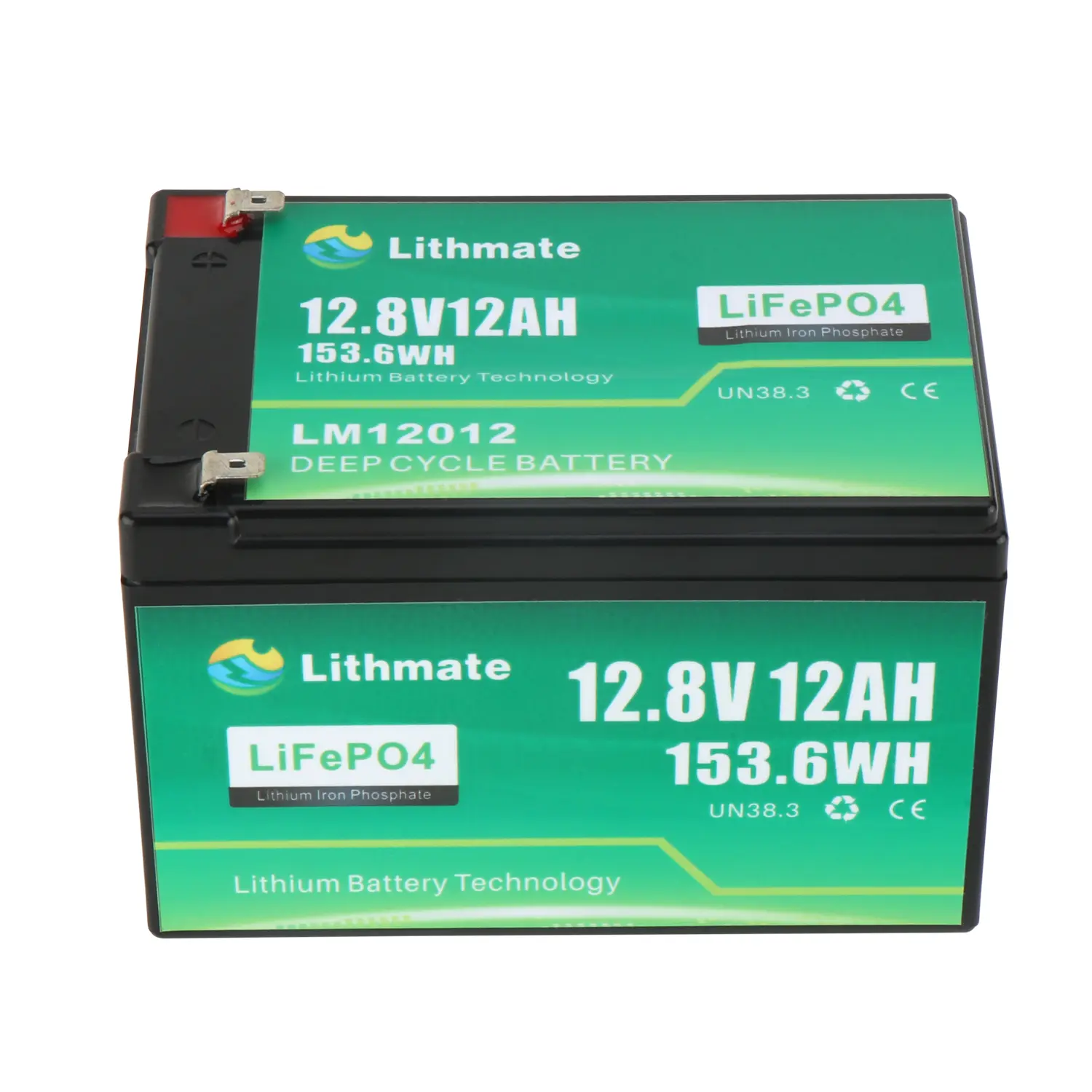

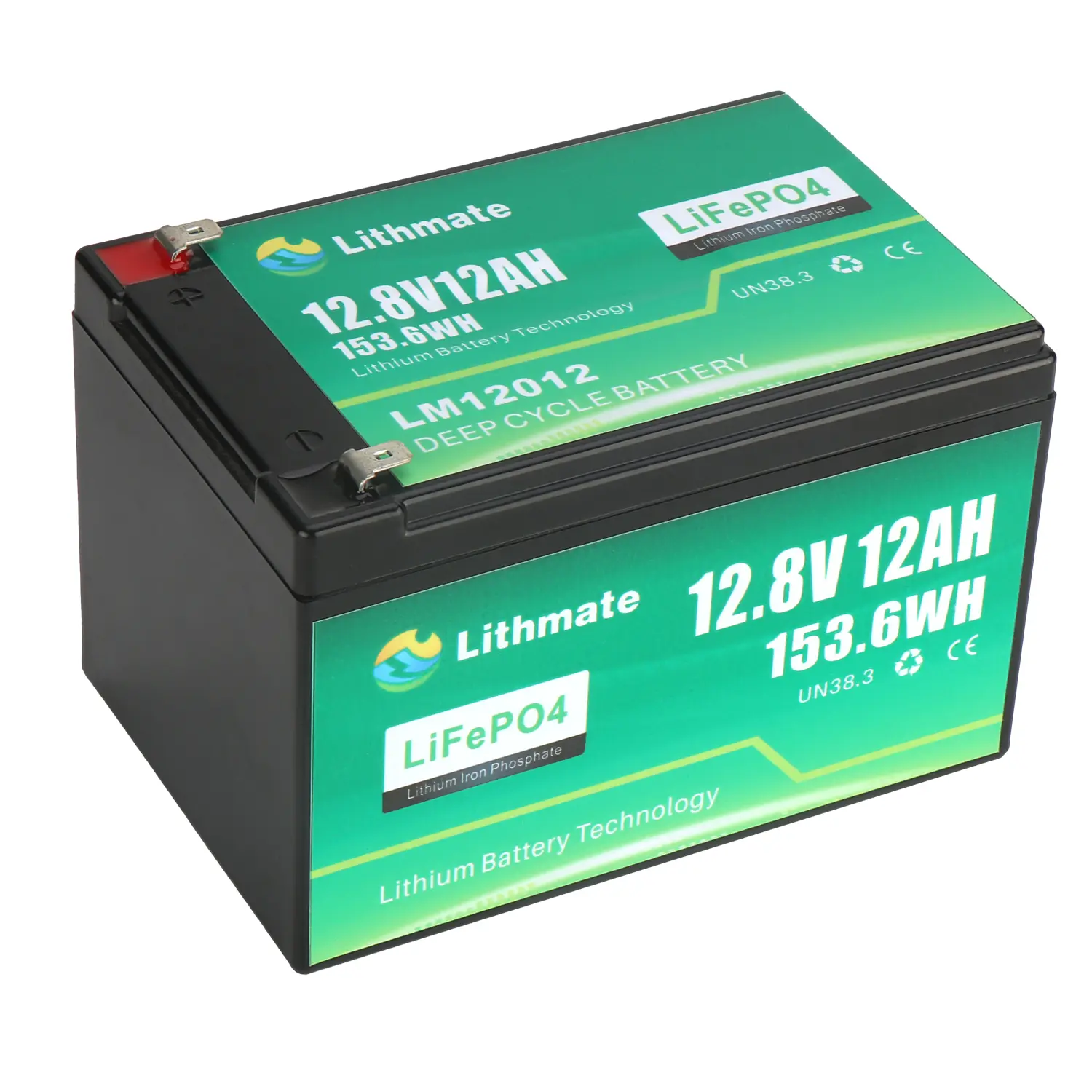

OEM Rechargeable Lithium 12V 12Ah Battery Factories, Companies

1 / 4

OEM Rechargeable Lithium 12V 12Ah Battery Factories, Companies

A 12V 12Ah battery is a compact, versatile power source widely used across mobility, backup power, tools, marine, medical, and security applications.

Send Inquiry

Product Description

SPECIFICATION

Item	Parameter	LM12012
Nominal	Voltage	12.8V
Nominal	Capacity	12Ah
Physical	Dimension	1509898mm
Physical	Weight	1.6KG
Electrical	Charge Voltage	14.6V
	Cut-off Voltage	10V
	Charge Current	6A
	Continuous Discharge Current	12A
	Peak Discharge Current	24A
Others	Working Temperature	-20-65℃
	Storage Temperature	0-45℃
	Cycle Life	>4,000 Cycles

Frequently Asked Questions

What is the cycle life of the LM12012 battery?

The LM12012 battery offers an exceptional cycle life of over 4,000 cycles, ensuring long-term durability and reliable power performance for various applications.

What are the physical dimensions and weight of this battery?

This compact battery measures 150*98*98mm and weighs approximately 1.6KG, making it an ideal choice for portable and space-constrained setups.

What is the recommended charge and discharge current?

The recommended charge current is 6A with a charge voltage of 14.6V. For output, it supports a continuous discharge current of 12A and a peak discharge current of 24A.

In what temperature range can this battery operate?

The battery is designed to work in a wide range of environments, with a working temperature range from -20℃ to 65℃ and a storage temperature range from 0℃ to 45℃.

What is the nominal capacity of the LM12012 model?

The LM12012 model has a nominal voltage of 12.8V and a nominal capacity of 12Ah, providing stable power for low to medium capacity requirements.

Does this battery have a cut-off voltage protection?

Yes, the battery features a cut-off voltage of 10V to prevent over-discharging and protect the internal cells from damage.
