Lithmate
1 / 3
| Item | Parameter | LM12012 |
|---|---|---|
| Nominal | Voltage | 12.8V |
| Capacity | 12Ah | |
| Physical | Dimension | 150*98*98mm |
| Weight | 1.6KG | |
| Electrical | Charge Voltage | 14.6V |
| Cut-off Voltage | 10V | |
| Charge Current | 6A | |
| Continuous Discharge Current | 12A | |
| Peak Discharge Current | 24A | |
| Others | Working Temperature | -20-65℃ |
| Storage Temperature | 0-45℃ | |
| Cycle Life | >4,000 Cycles |

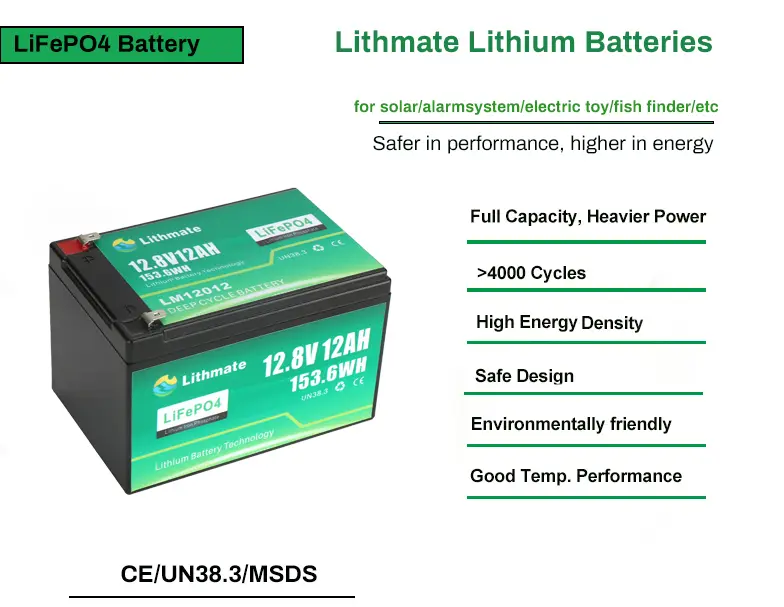

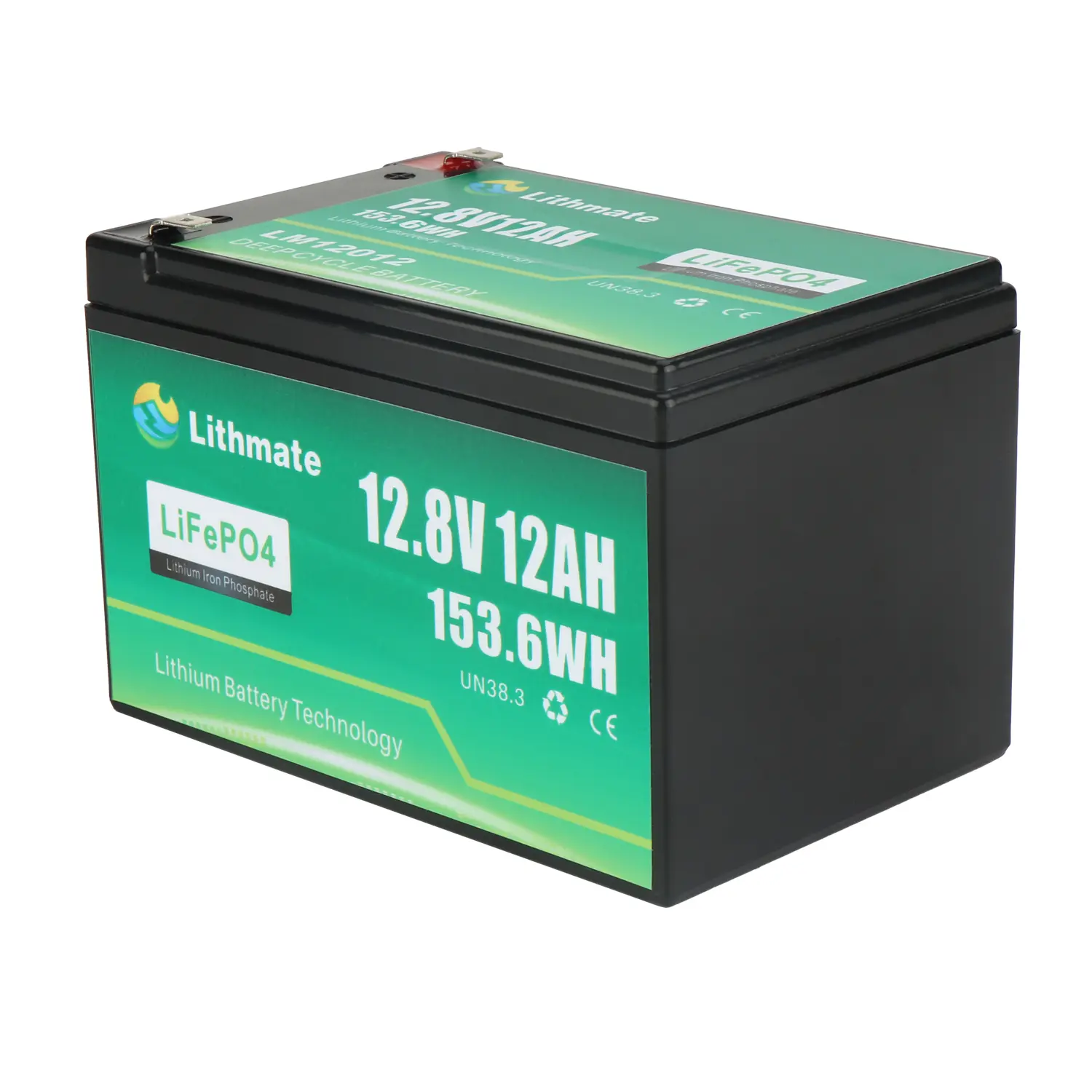

The battery has a nominal voltage of 12.8V and a rated capacity of 12Ah, delivering reliable energy storage performance.
The physical dimensions of the battery are 150*98*98mm, and it weighs approximately 1.6KG, making it highly compact and lightweight.
The standard charge current is 6A. It supports a continuous discharge current of 12A and can handle a peak discharge current up to 24A.
This high-quality battery is designed for longevity, offering a cycle life of more than 4,000 cycles under proper operating conditions.
The battery operates effectively in working temperatures ranging from -20℃ to 65℃. For storage, it is recommended to keep it within a temperature range of 0℃ to 45℃.
