Custom 24V 70Ah Lithium LiFePO4 Battery Manufacturers, Company

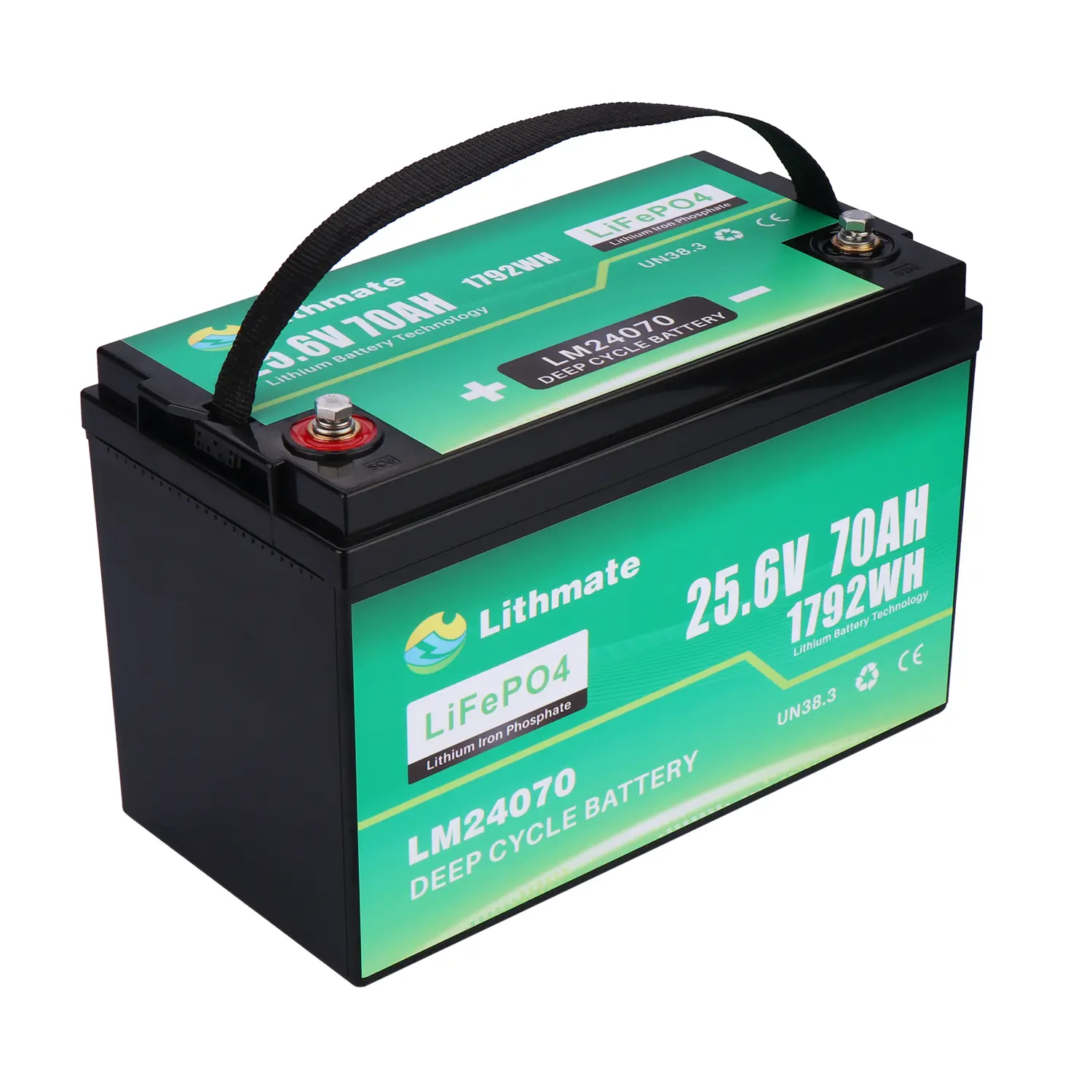

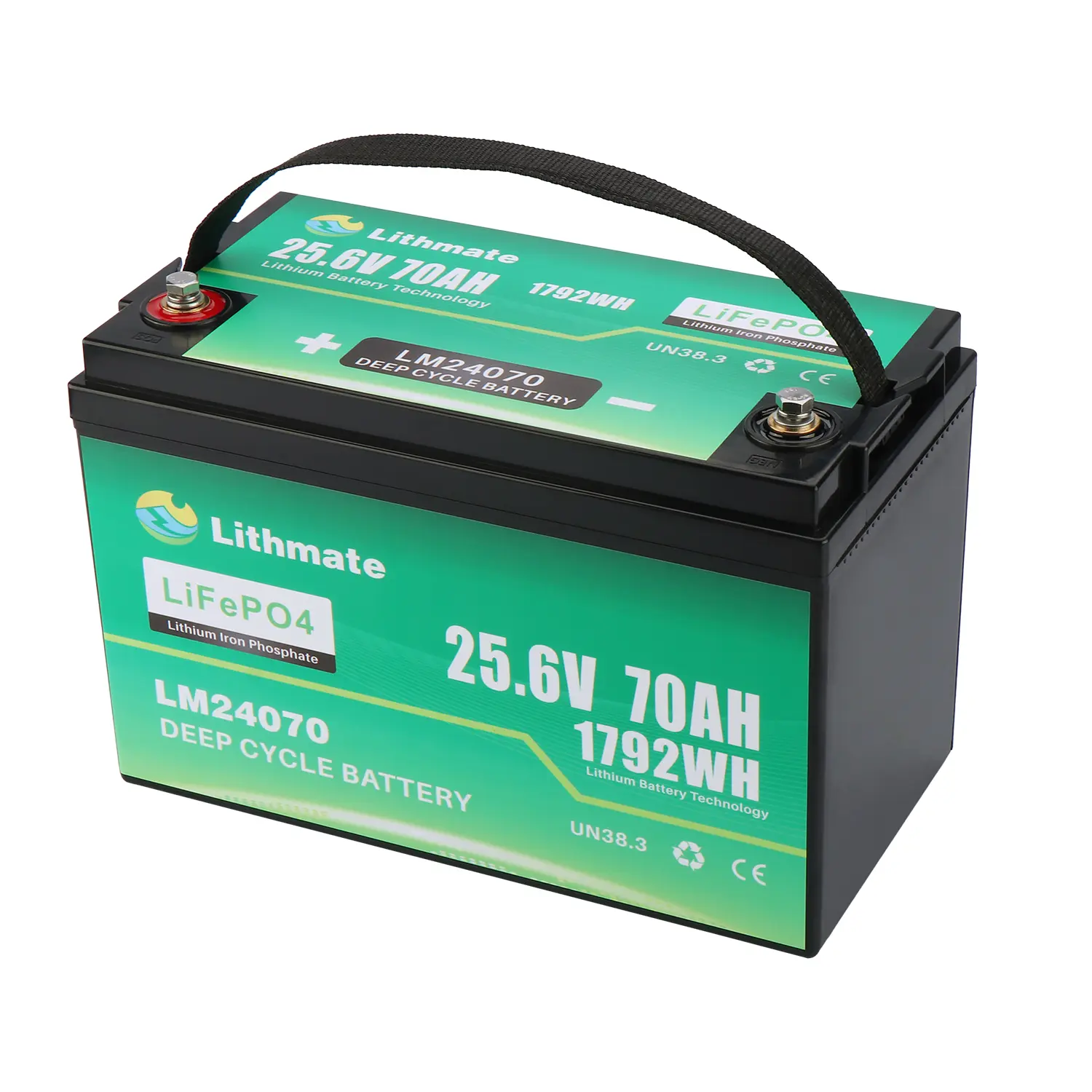

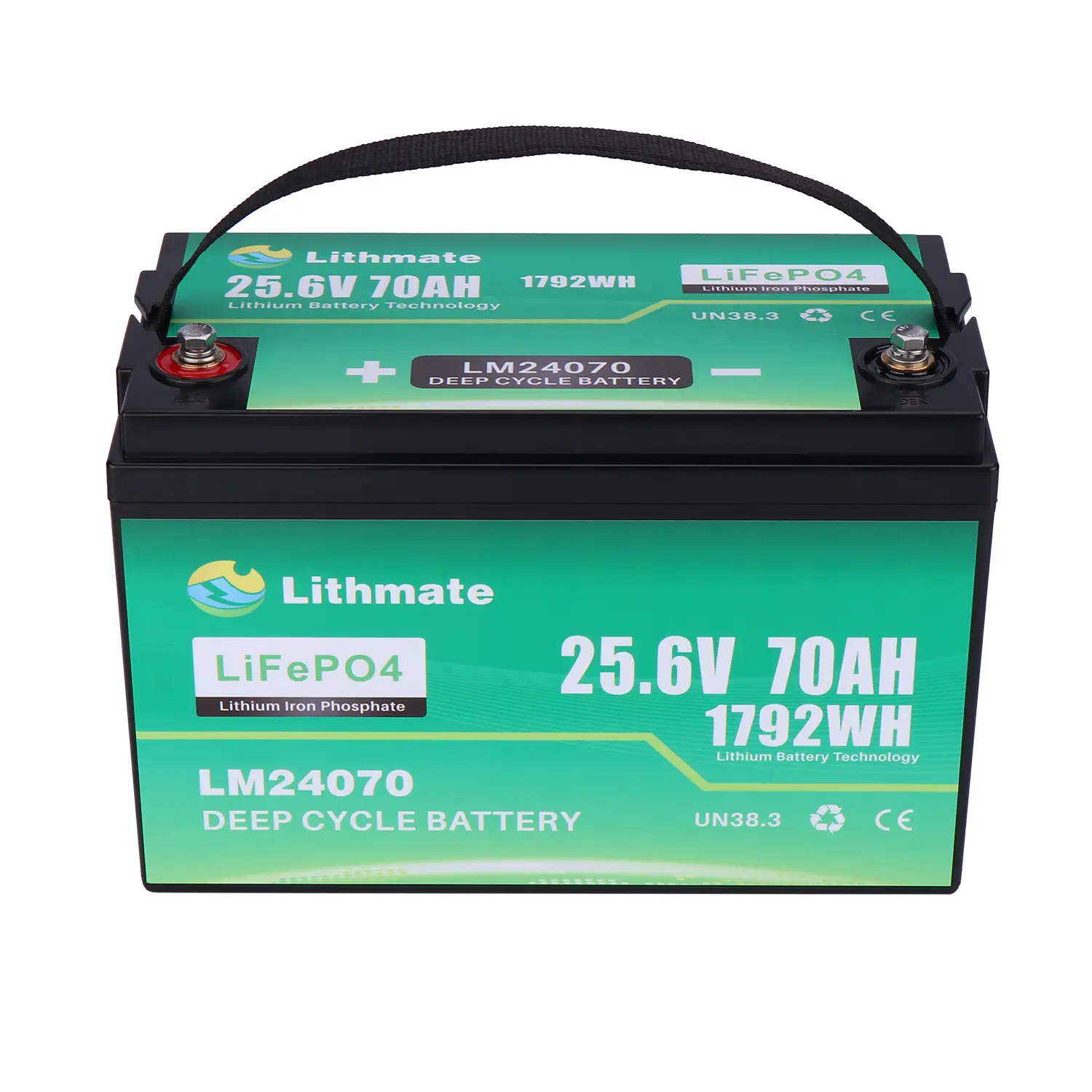

Lithmate 24V 70Ah LiFePO4 Battery – Powering Smarter Mobility

This compact yet high-capacity lithium iron phosphate battery delivers longer lifespan (4000+ cycles), maintenance-free operation, and 30% lighter weight versus lead-acid alternatives. Ideal for: Light EVs (golf carts, mobility scooters)Urban delivery trikes Marine/Mobility aids

Send Inquiry

Product Description

SPECIFICATION

Item	Parameter	LM24070
Nominal	Voltage	25.6V
Nominal	Capacity	70Ah
Physical	Dimension	329172214mm (12.9x6.77x8.42")
Physical	Weight	~17KG (37.48lb)
Electrical	Charge Voltage	25.6V
	Cut-off Voltage	20V
	Charge Current	70A
	Continuous Discharge Current	70A
	Peak Discharge Current	140A
Others	Working Temperature	-20-65℃
	Storage Temperature	0-45℃
	Cycle Life	>4,000 Cycles

Frequently Asked Questions

🔋 What is the expected cycle life of the LM24070 battery?

The LM24070 battery is designed for long-term durability, offering a cycle life of more than 4,000 cycles, ensuring reliable performance over many years of use.

🌡️ What are the operating temperature limits for this battery?

The battery functions efficiently within a working temperature range of -20°C to 65°C, making it suitable for various industrial and commercial environments.

⚡ What is the peak discharge current supported by the LM24070?

This model supports a continuous discharge current of 70A and can handle a peak discharge current of up to 140A for demanding power requirements.

📏 What are the physical dimensions and weight of the battery?

The battery measures 329*172*214mm (12.9x6.77x8.42") and weighs approximately 17KG (37.48lb), providing a compact yet powerful energy solution.

⚙️ Can this battery be used for floor scrubbers?

Yes, with its 25.6V nominal voltage and 70Ah capacity, the LM24070 is specifically optimized for high-demand applications such as floor scrubbers and other industrial equipment.

🛡️ What are the recommended storage conditions?

For optimal battery health, it is recommended to store the battery in a dry environment with a temperature range between 0°C and 45°C.
